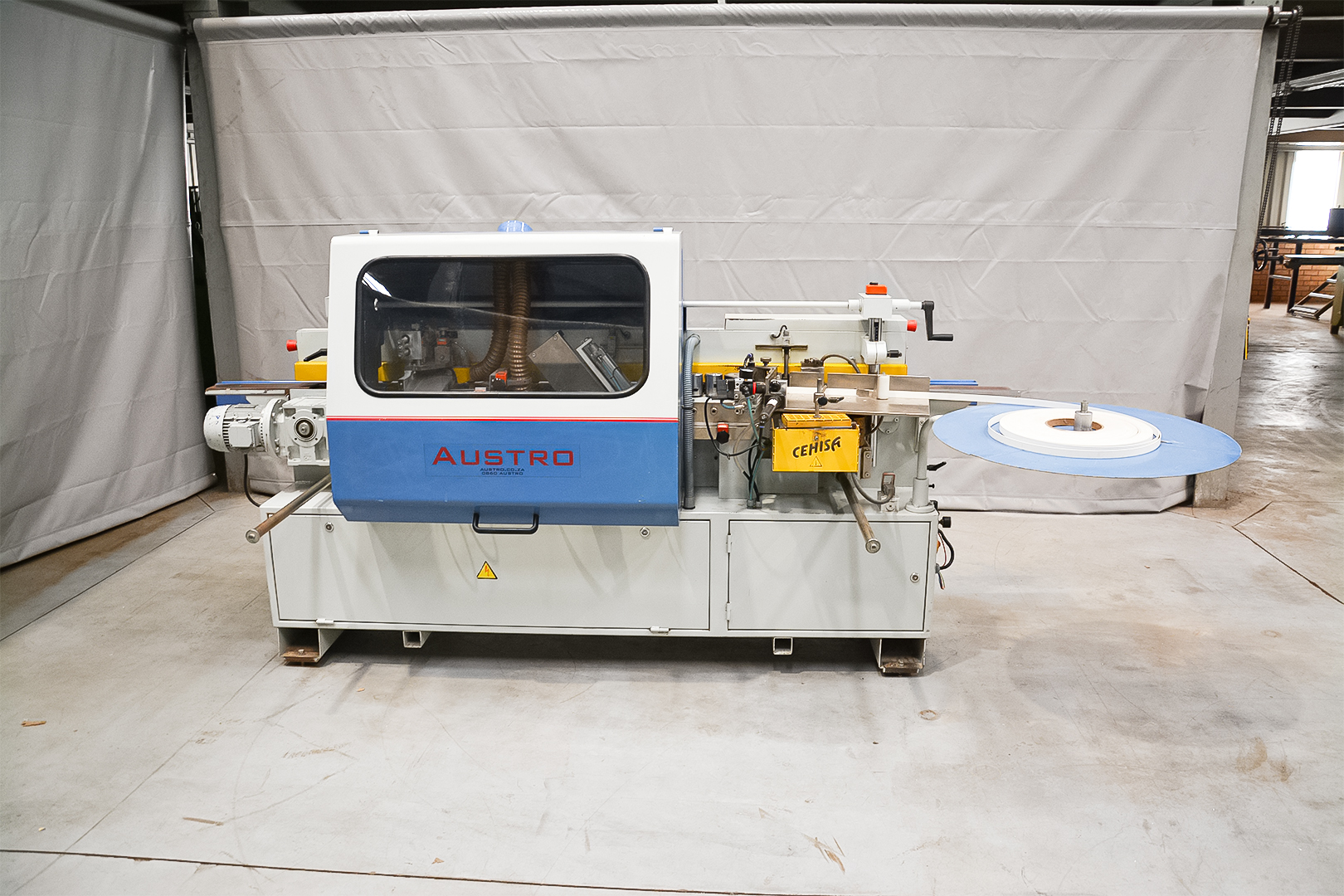

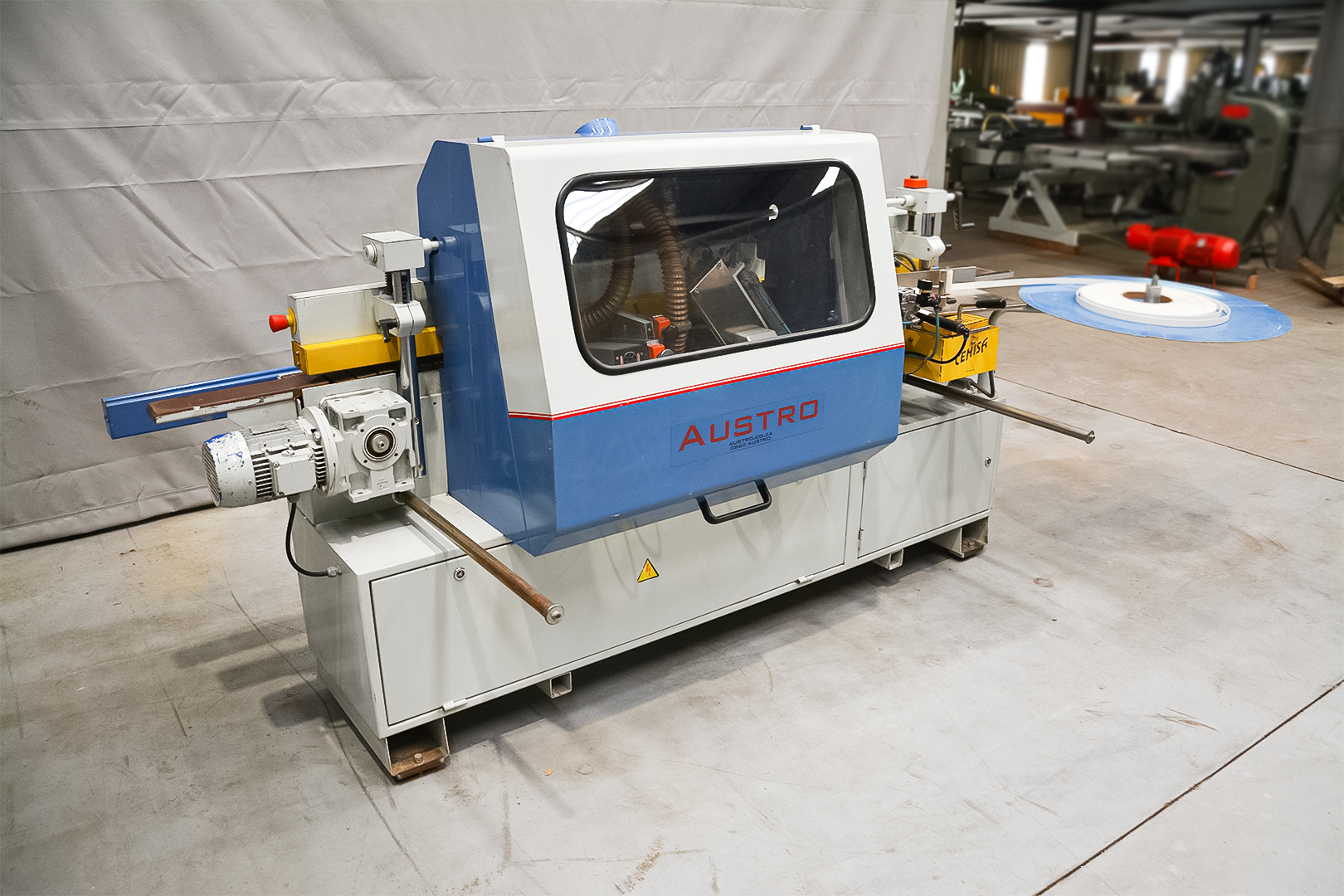

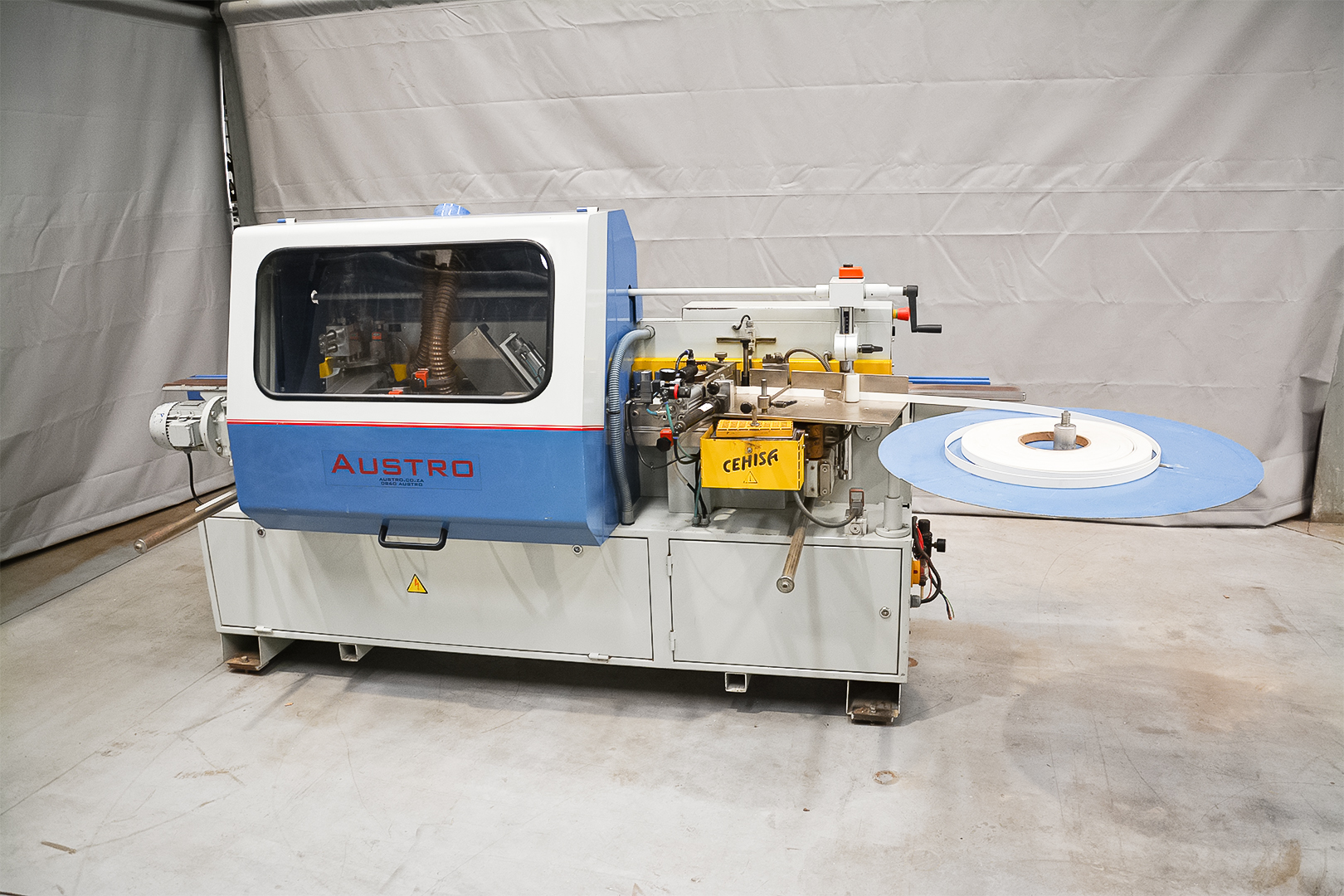

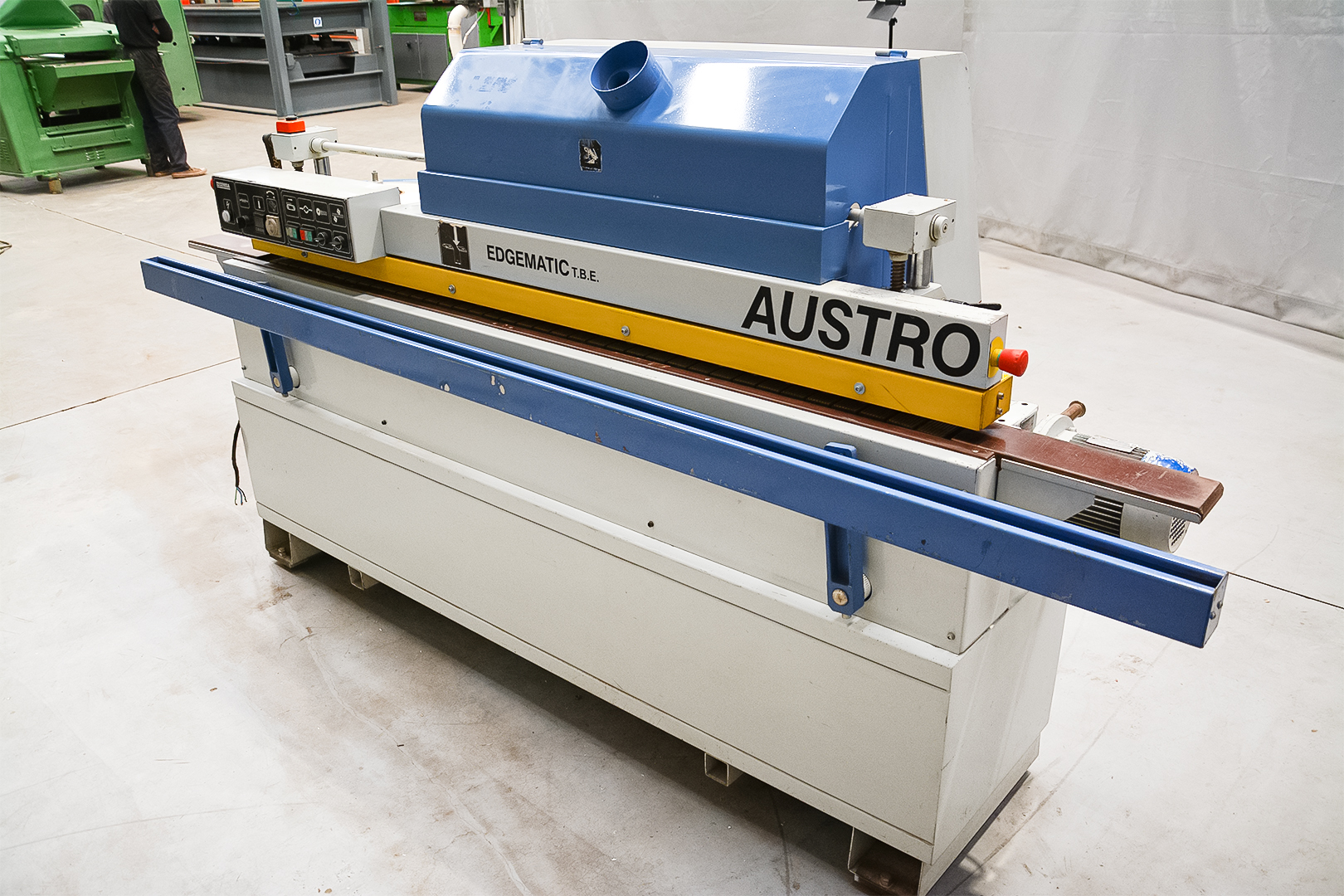

Well-known and respected European machine brand from Cehisa Spain
Solid yet simple work horse edge bander known for reliable production

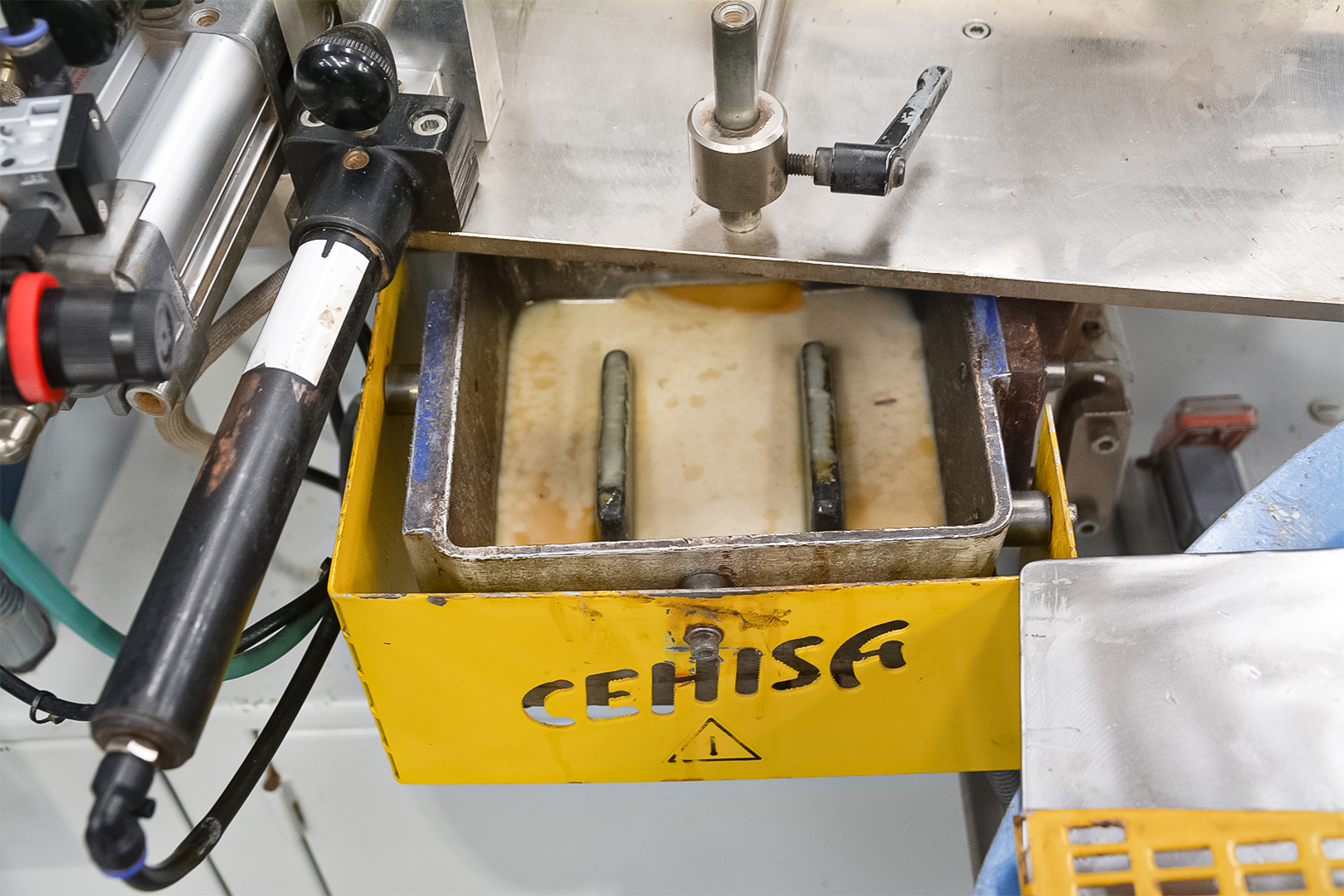

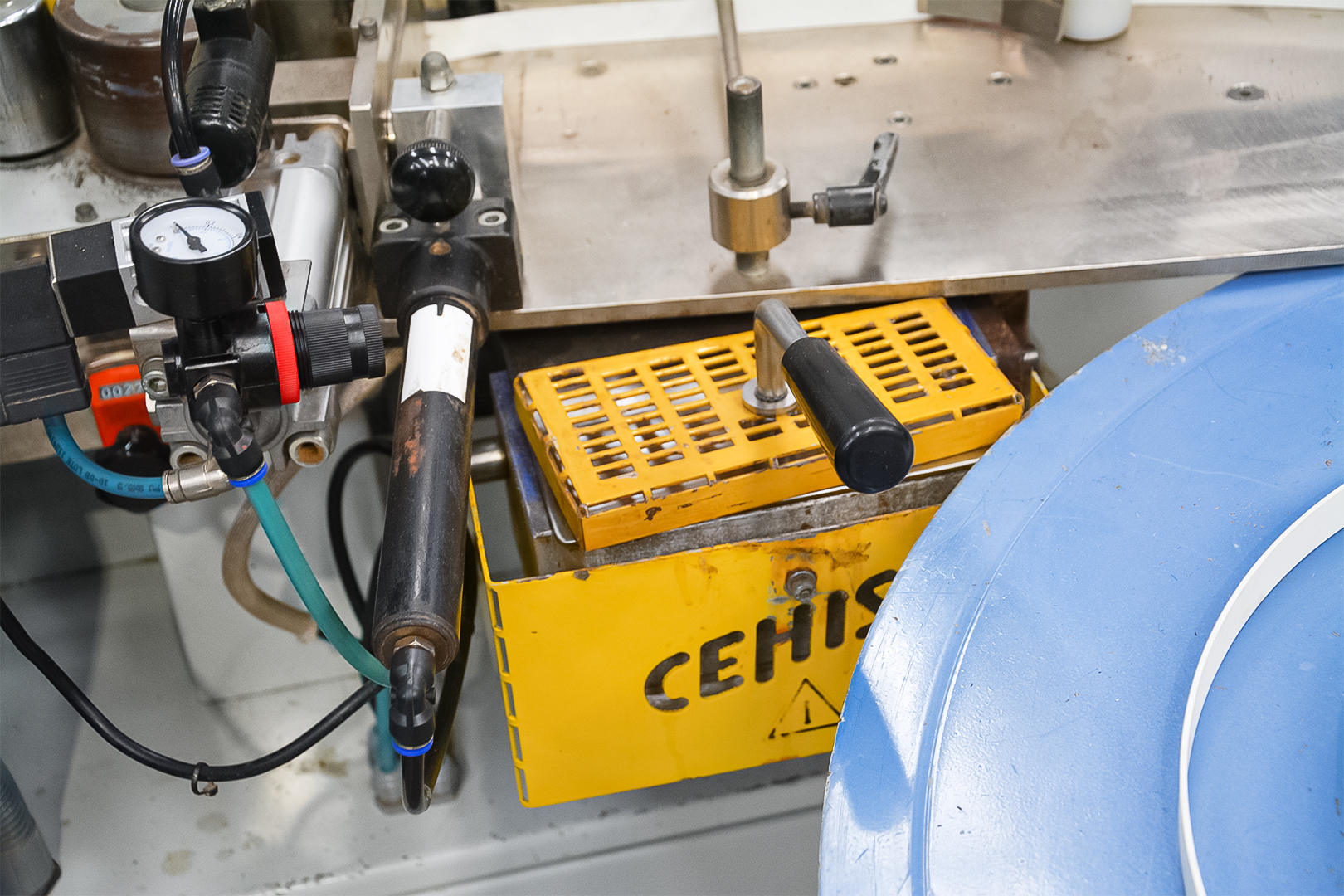

Edge bander equipped with glue edging application, front and back trim and top and bottom trim
Sold fully checked, serviced and with a quality guarantee attached.
Strip feed magazine
Pre-cutting guillotine

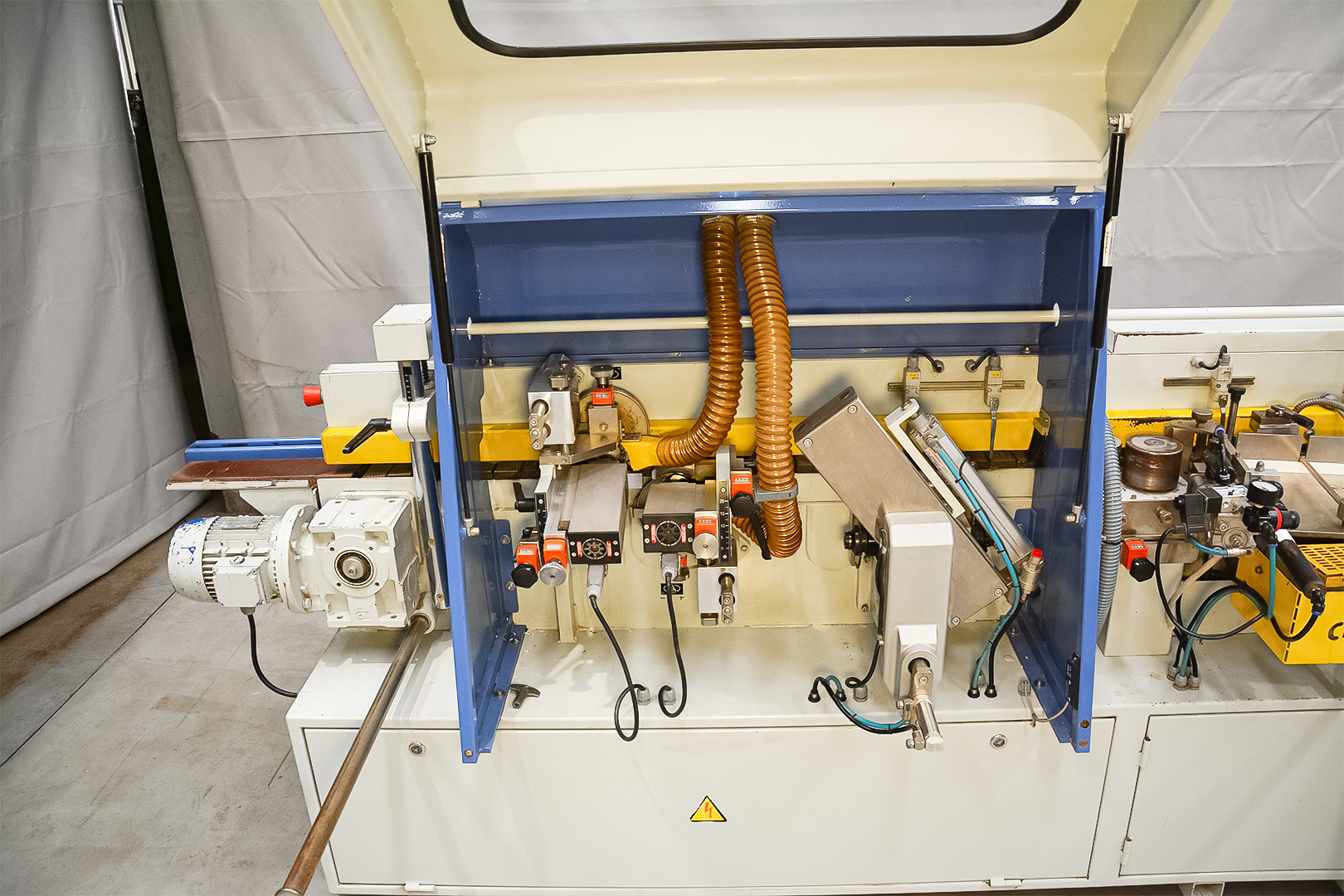

Front and rear end trim station

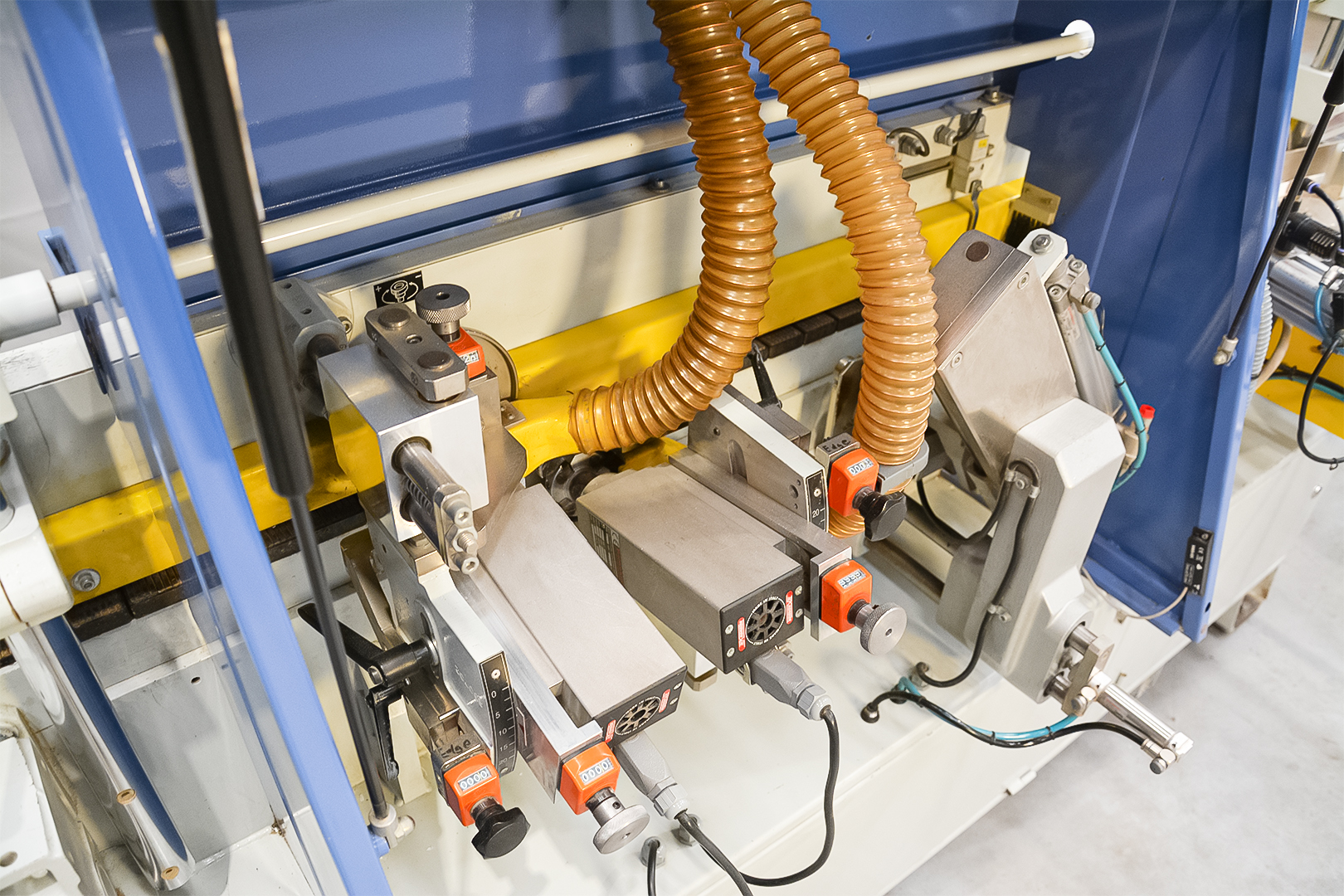

Top and bottom trim station
Minimum and maximum length of panel: 120 mm – Unlimited
Minimum and maximum width of panel: 110(75) mm – Unlimited
Minimum and maximum thickness of panel: 8 mm – 45 mm
Minimum and maximum thickness of edging: 0.4 mm – 6 mm
Feed speed: 10 m/min
Motore power: 415 V – 3 Phase
Compressed air: 6 – 7 Bar – 2 c.f.m
Overall Machine Length: 3510 mm
Minimum operating space required (length): 2600 mm + 2 x maximum board length mm
Minimum operating space required (width): 1200 mm + maximum board length mm
Weight 500kg
Year 2009
Youtube video : Available on request
