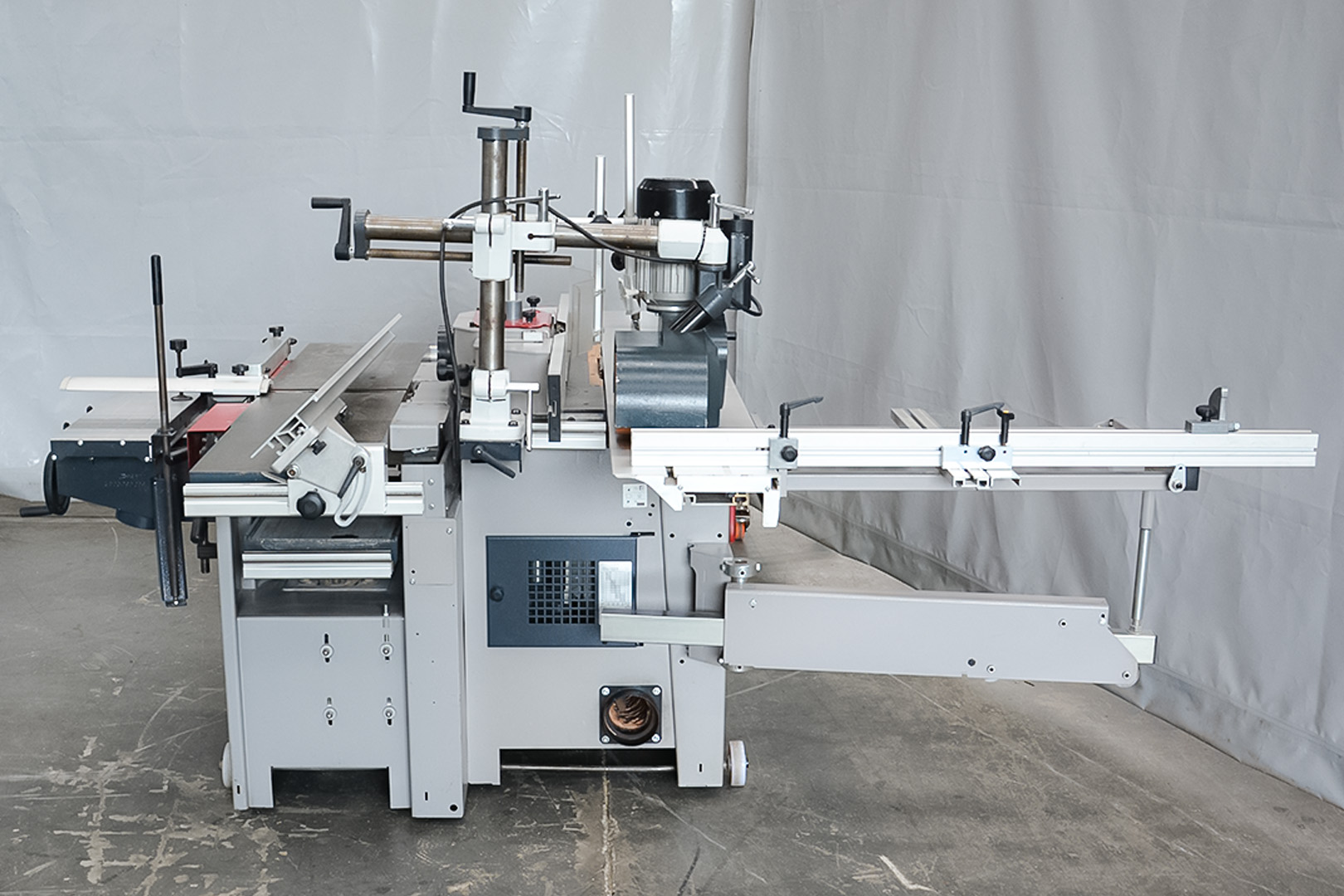

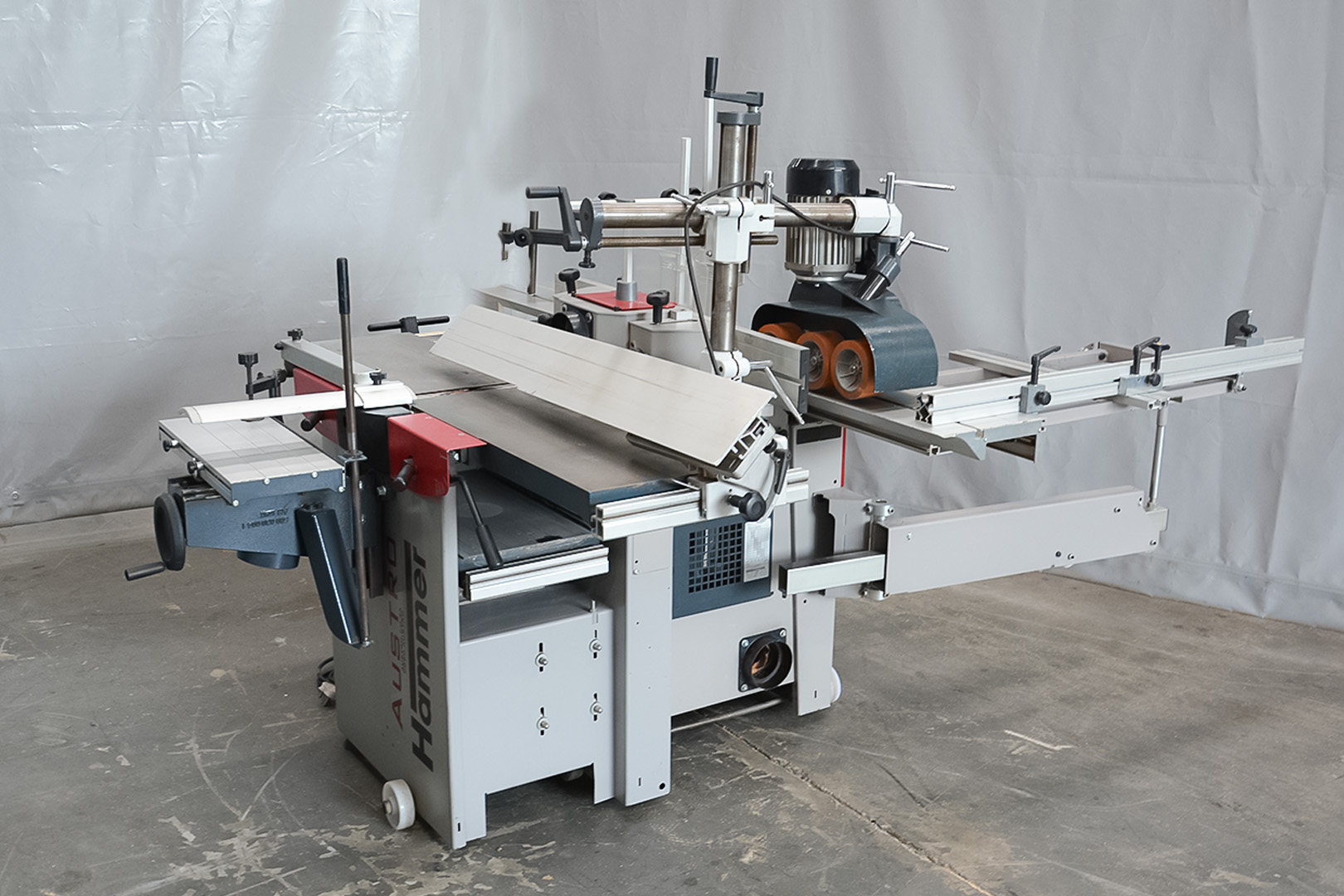

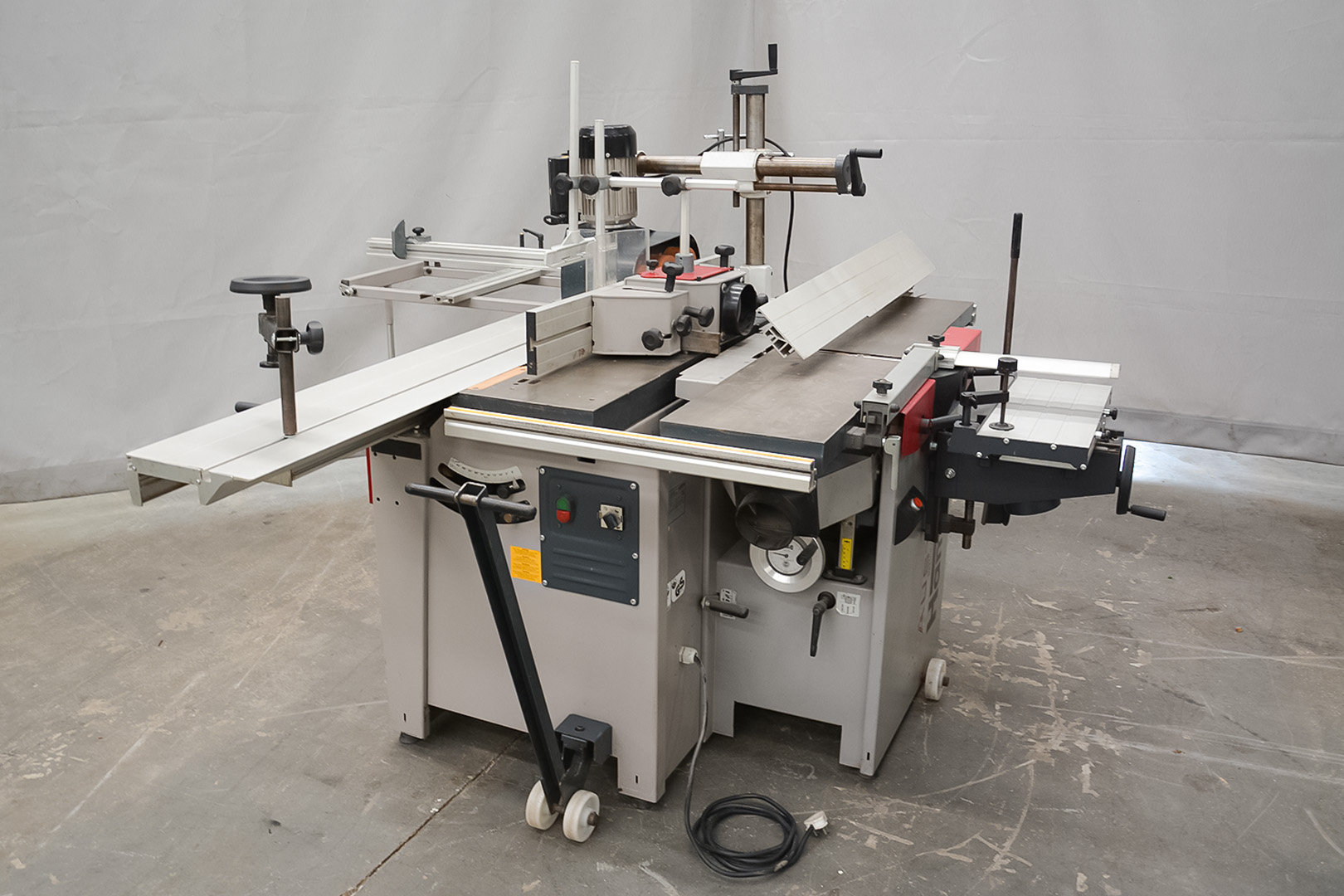

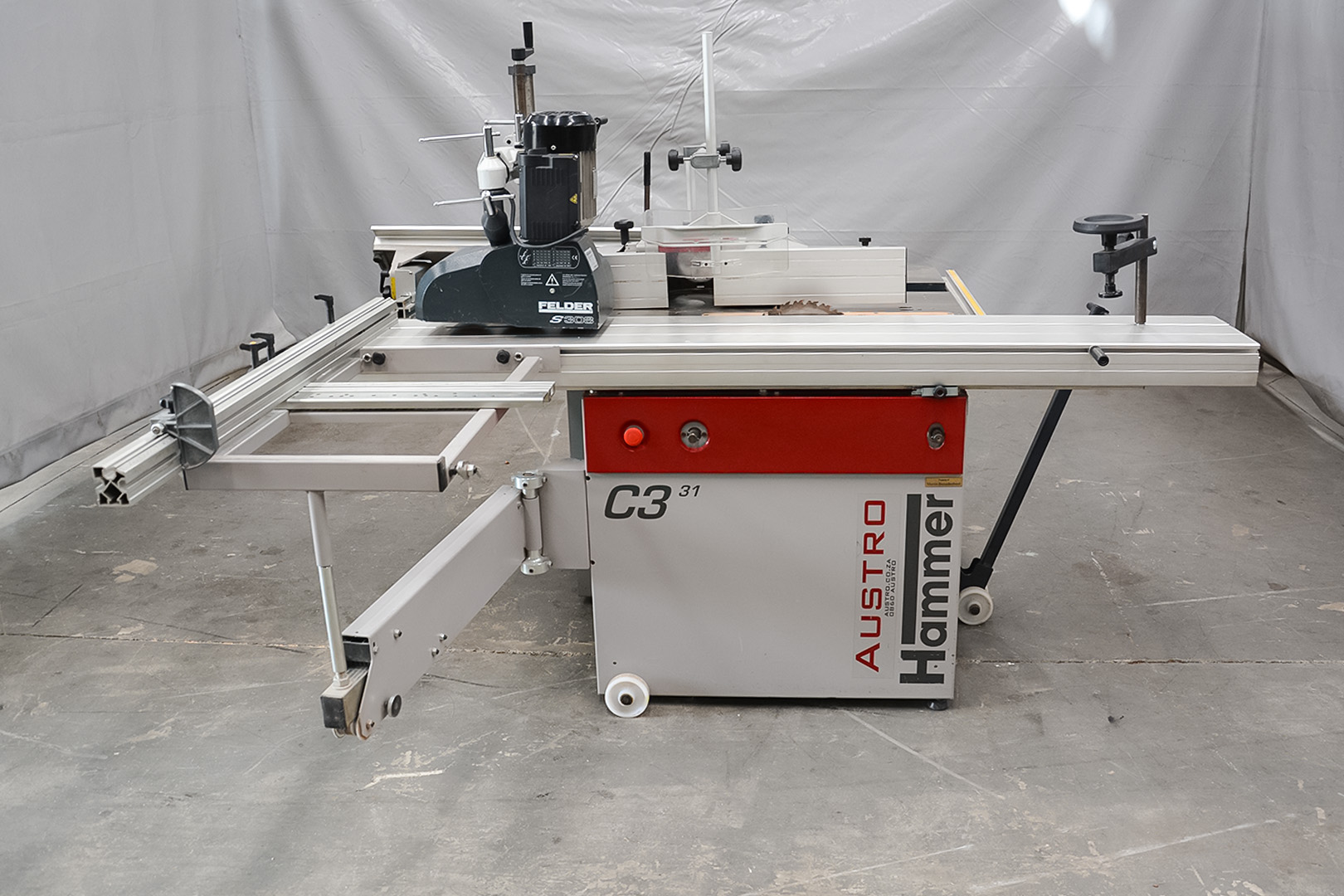

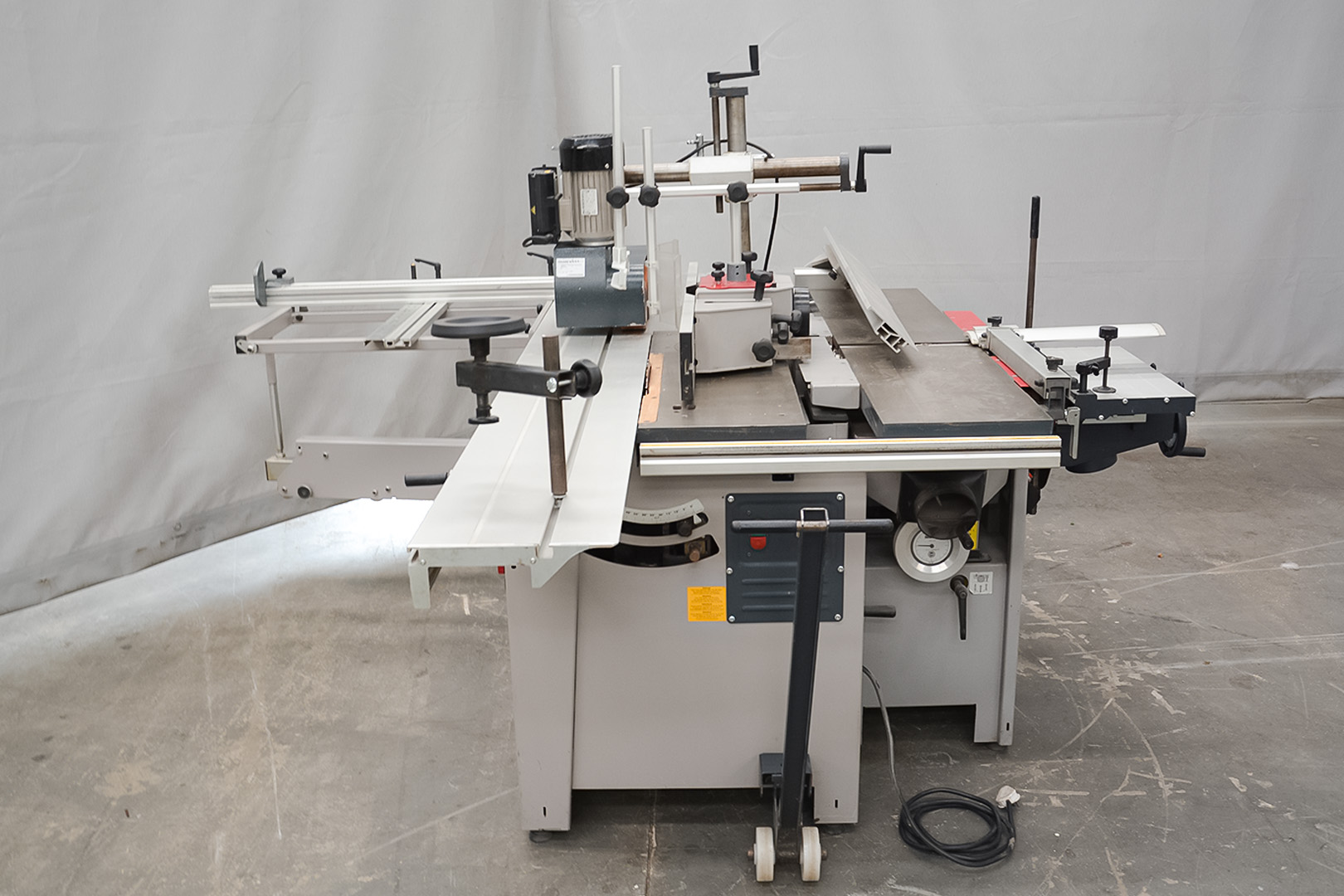

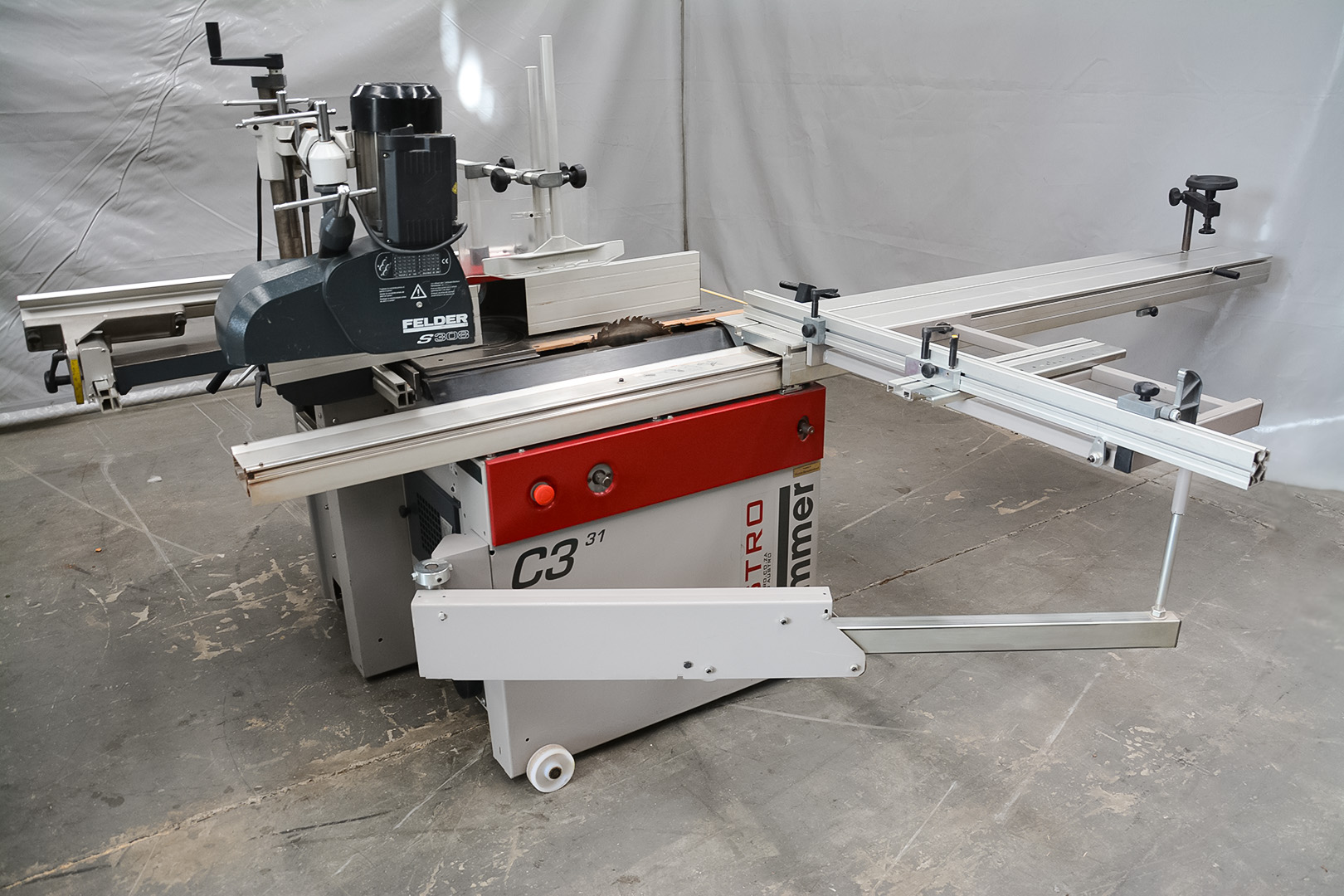

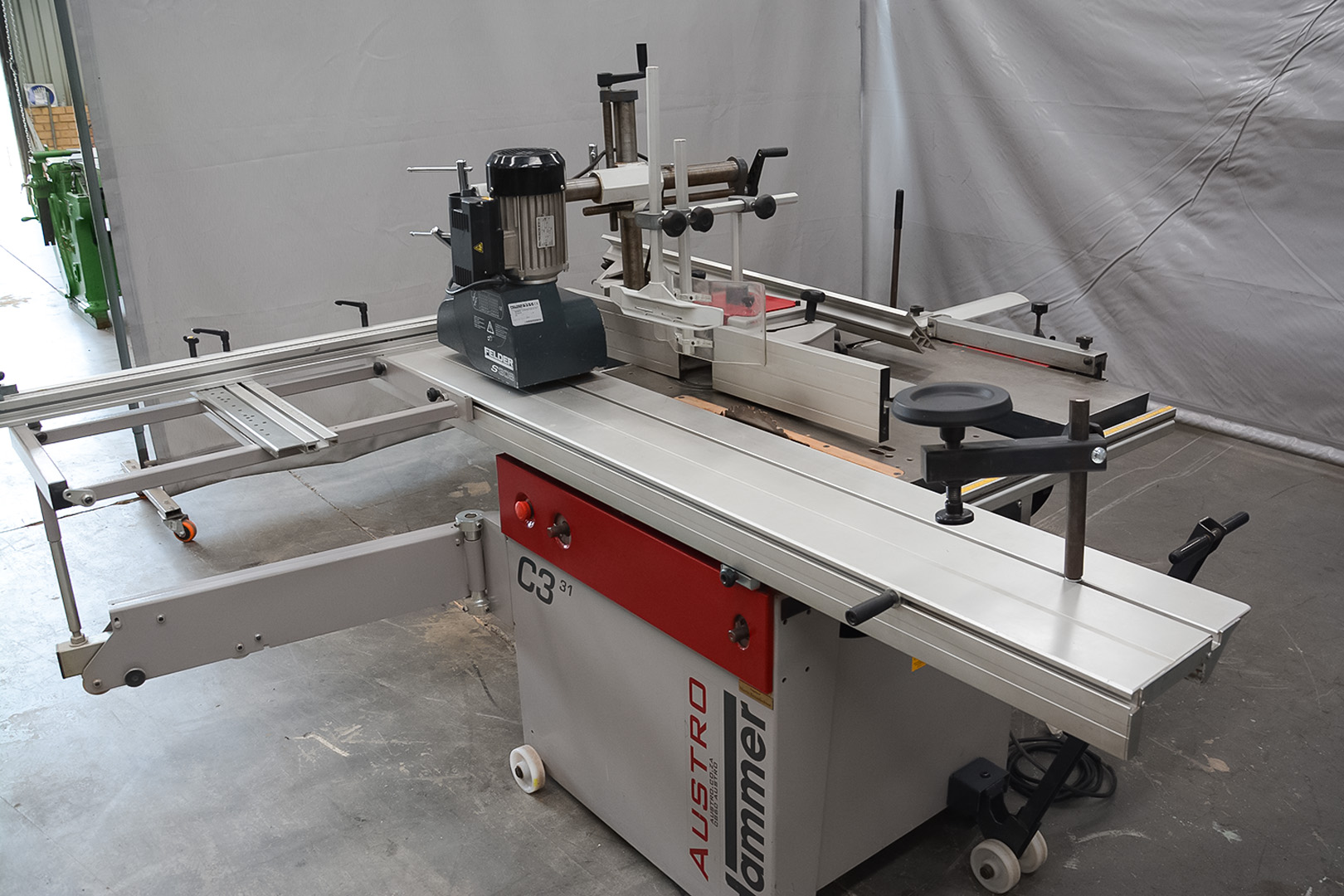

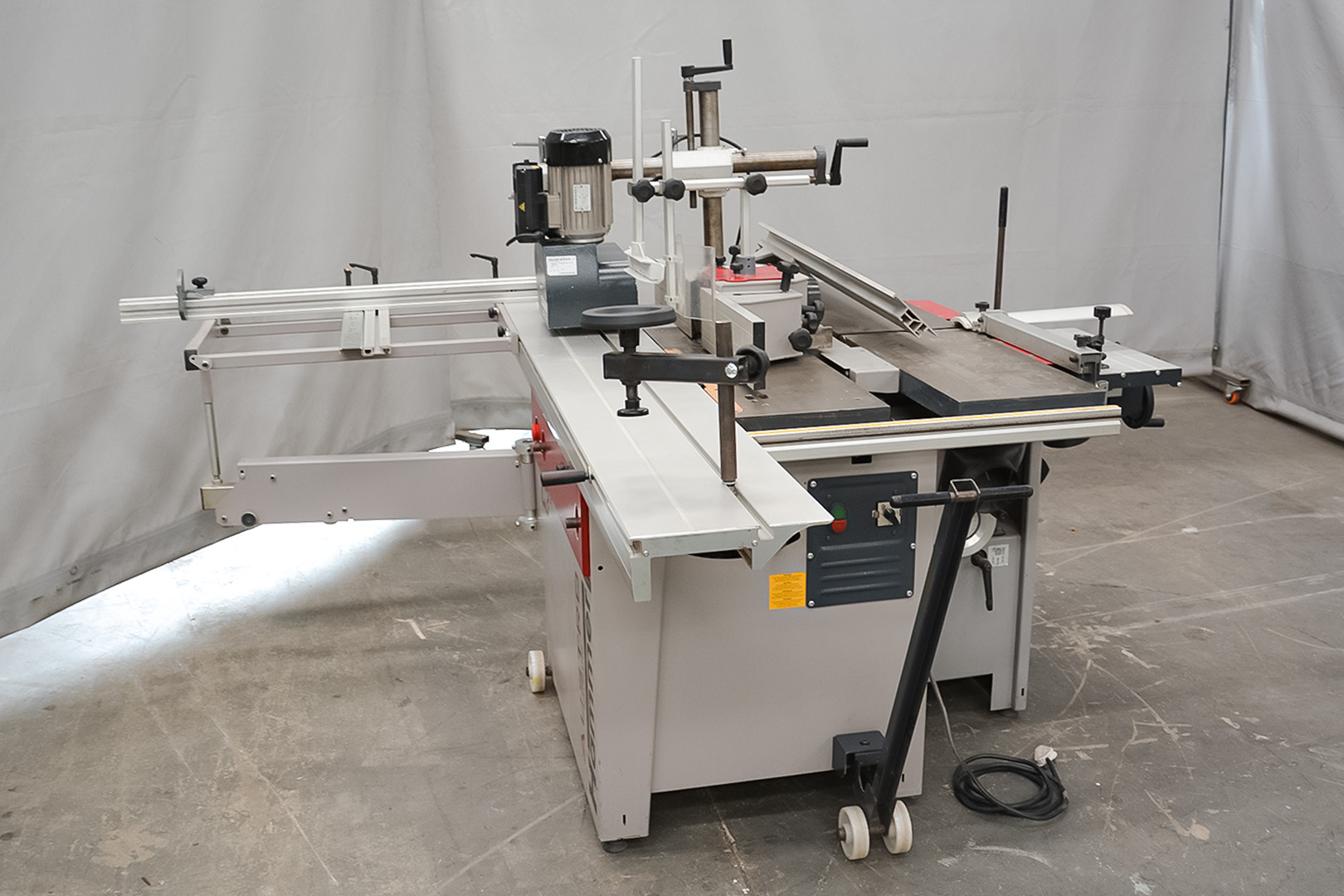

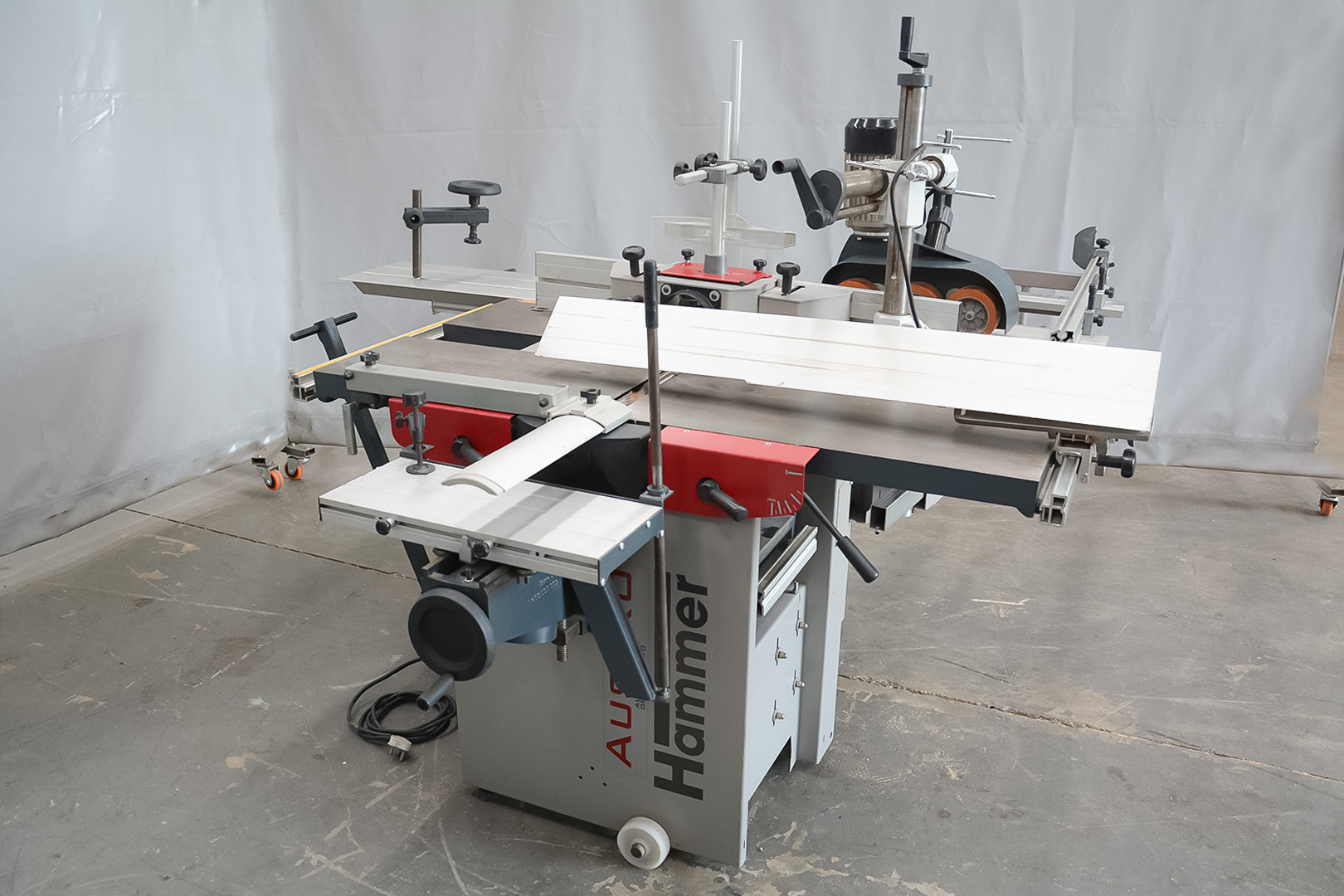

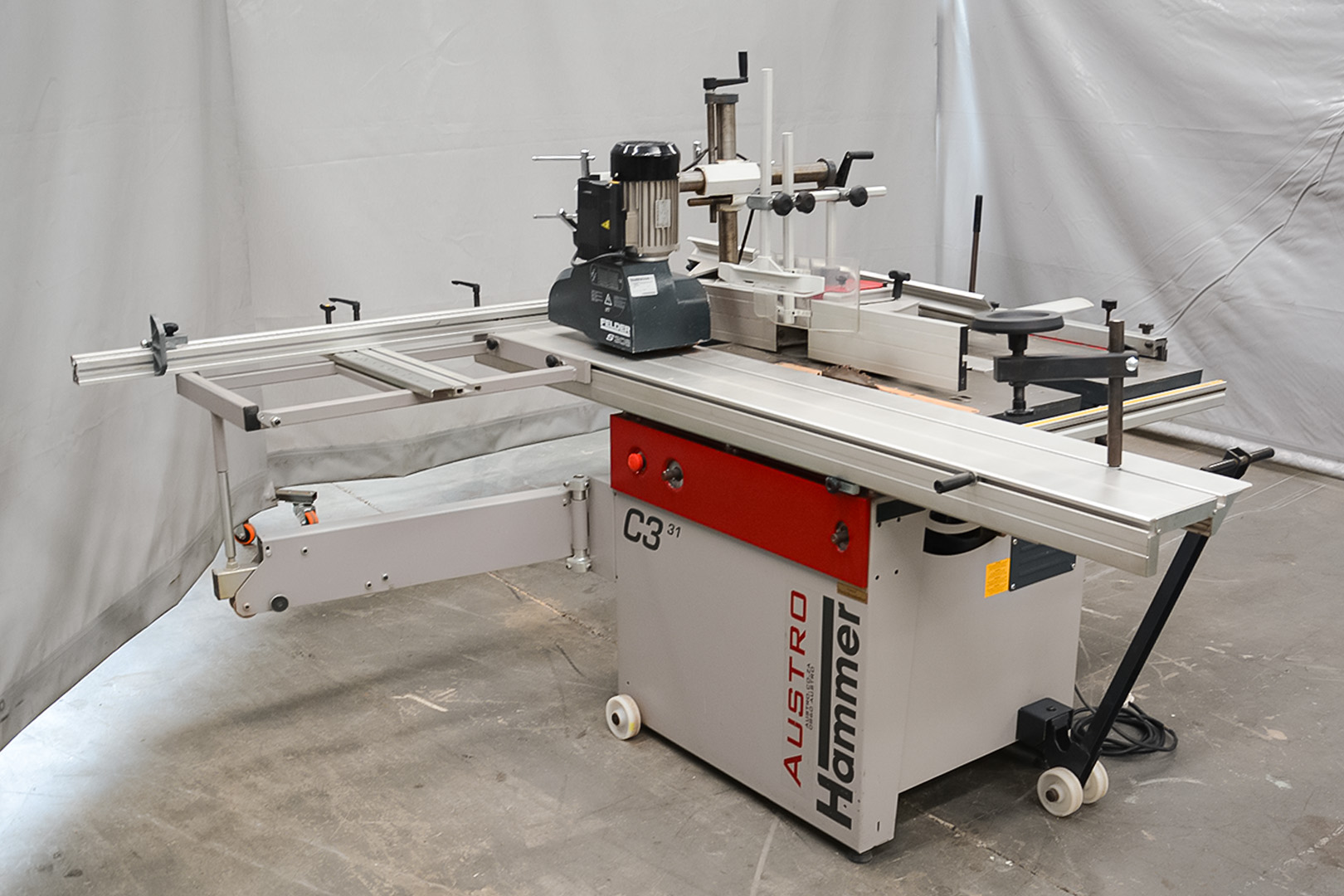

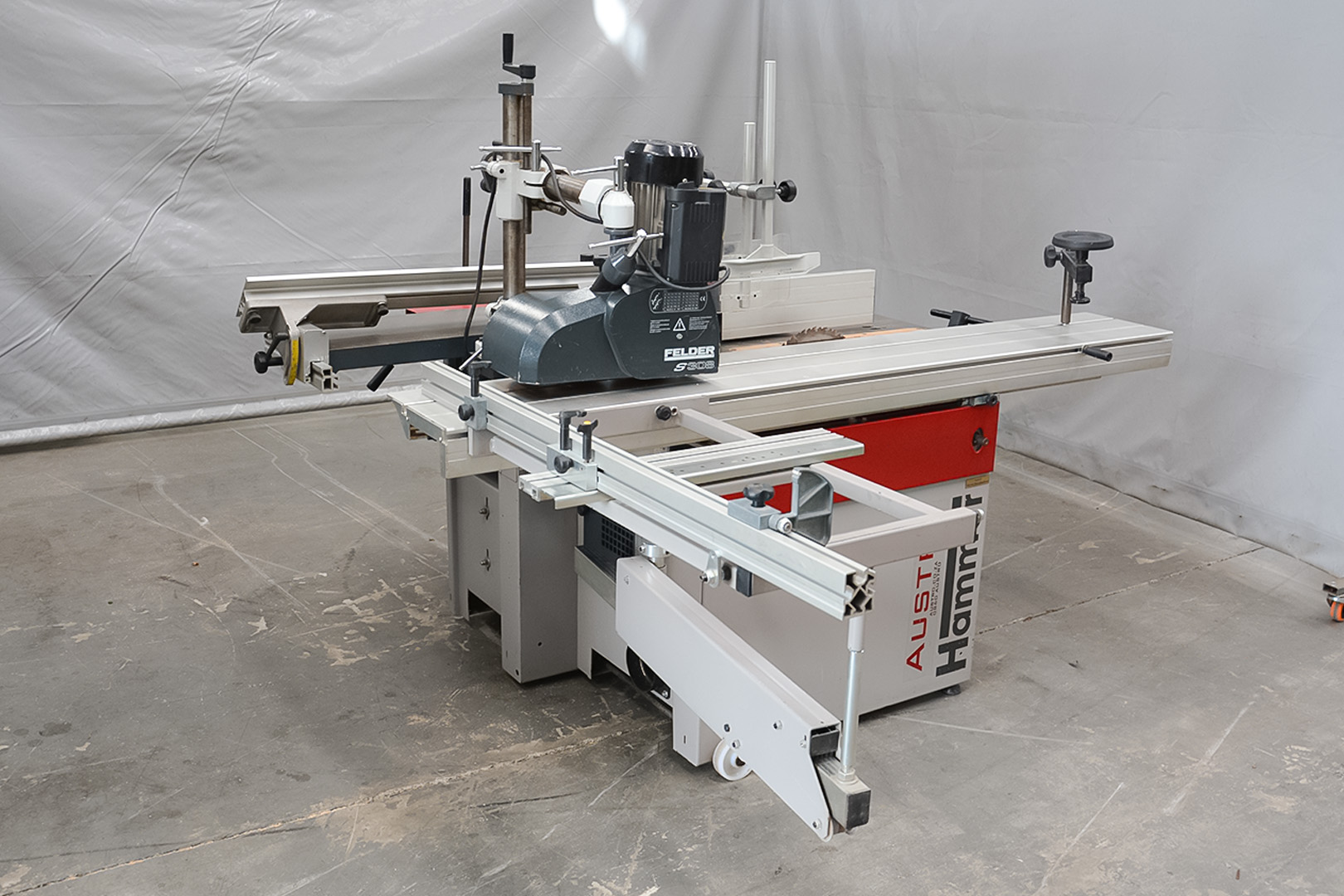

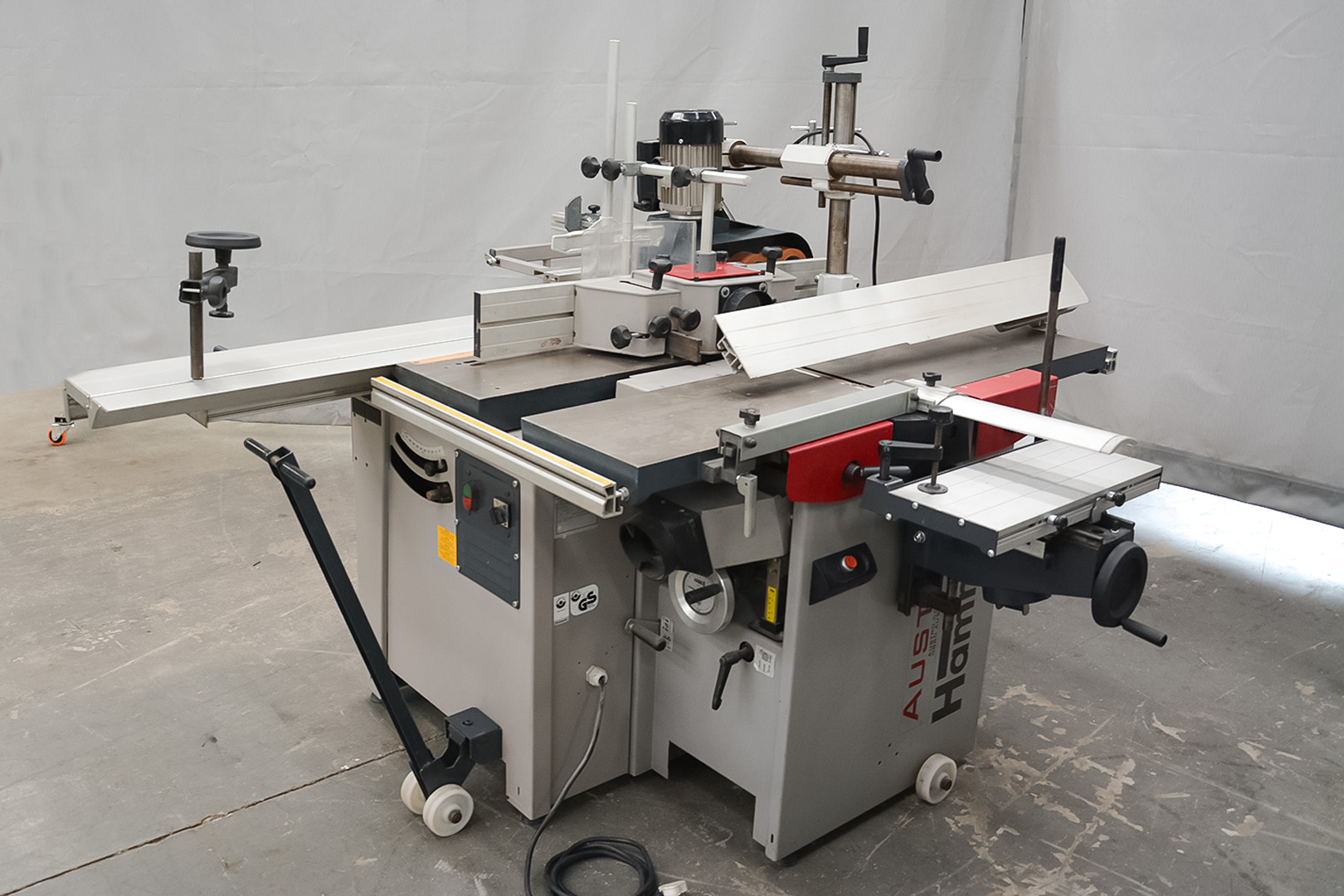

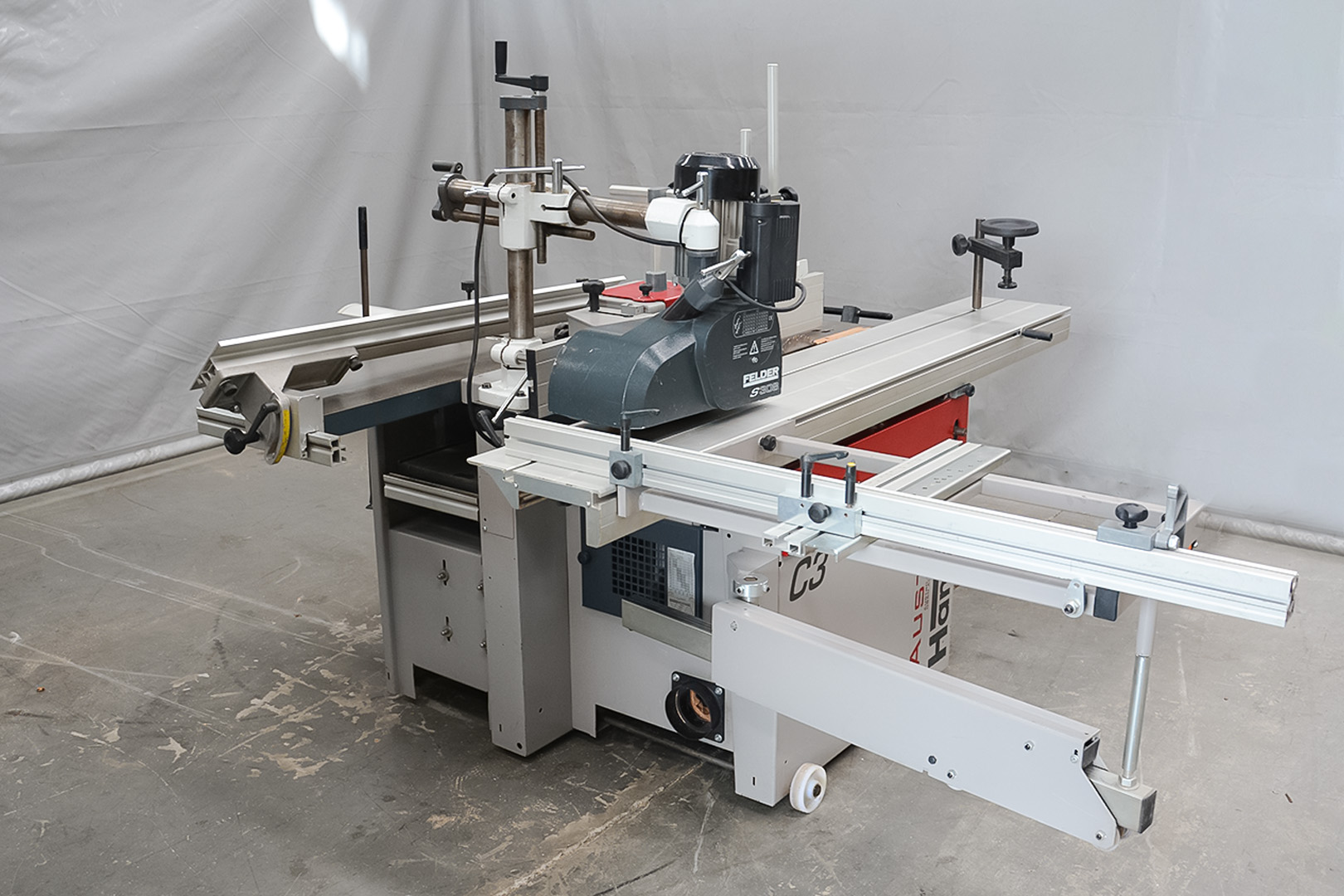

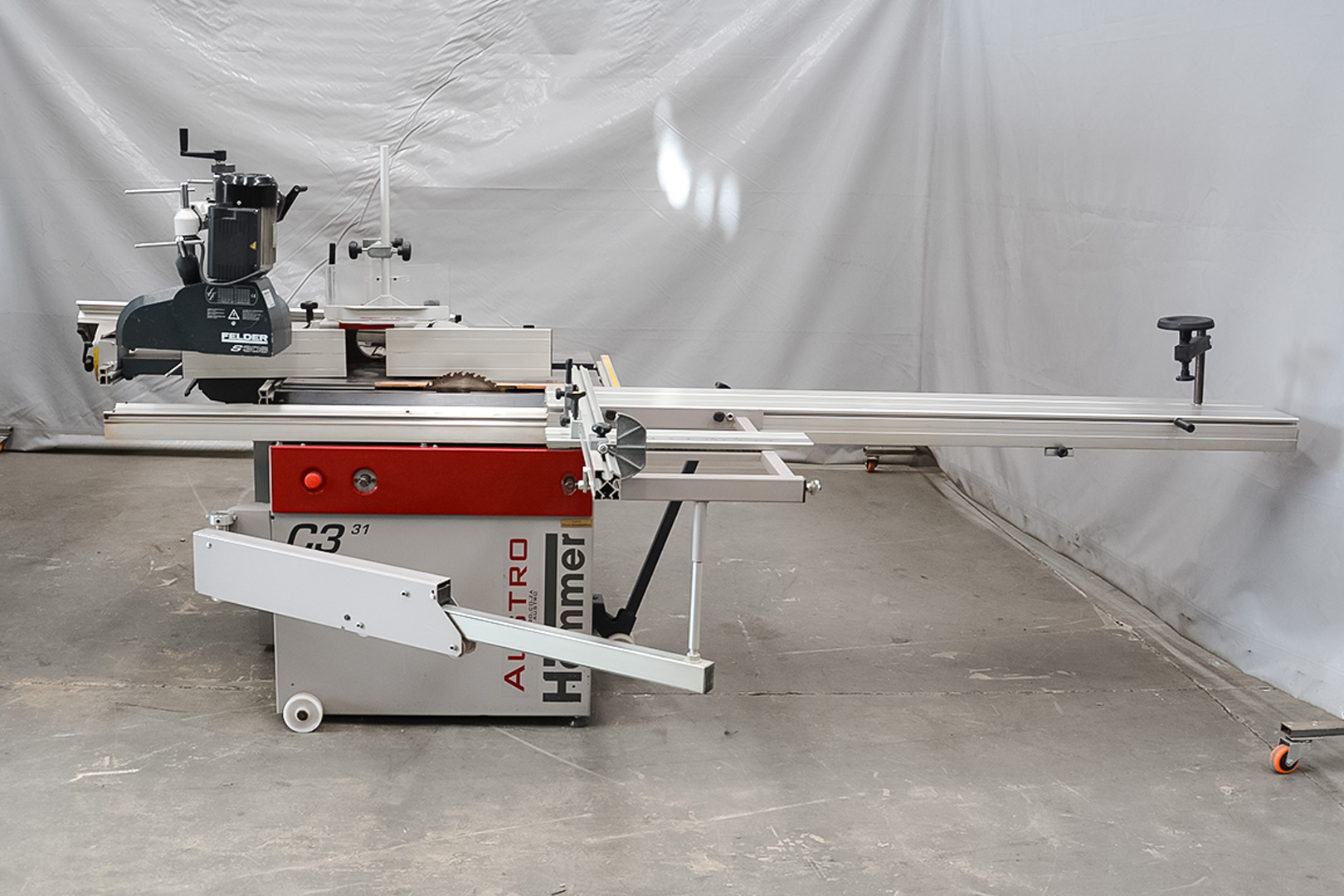

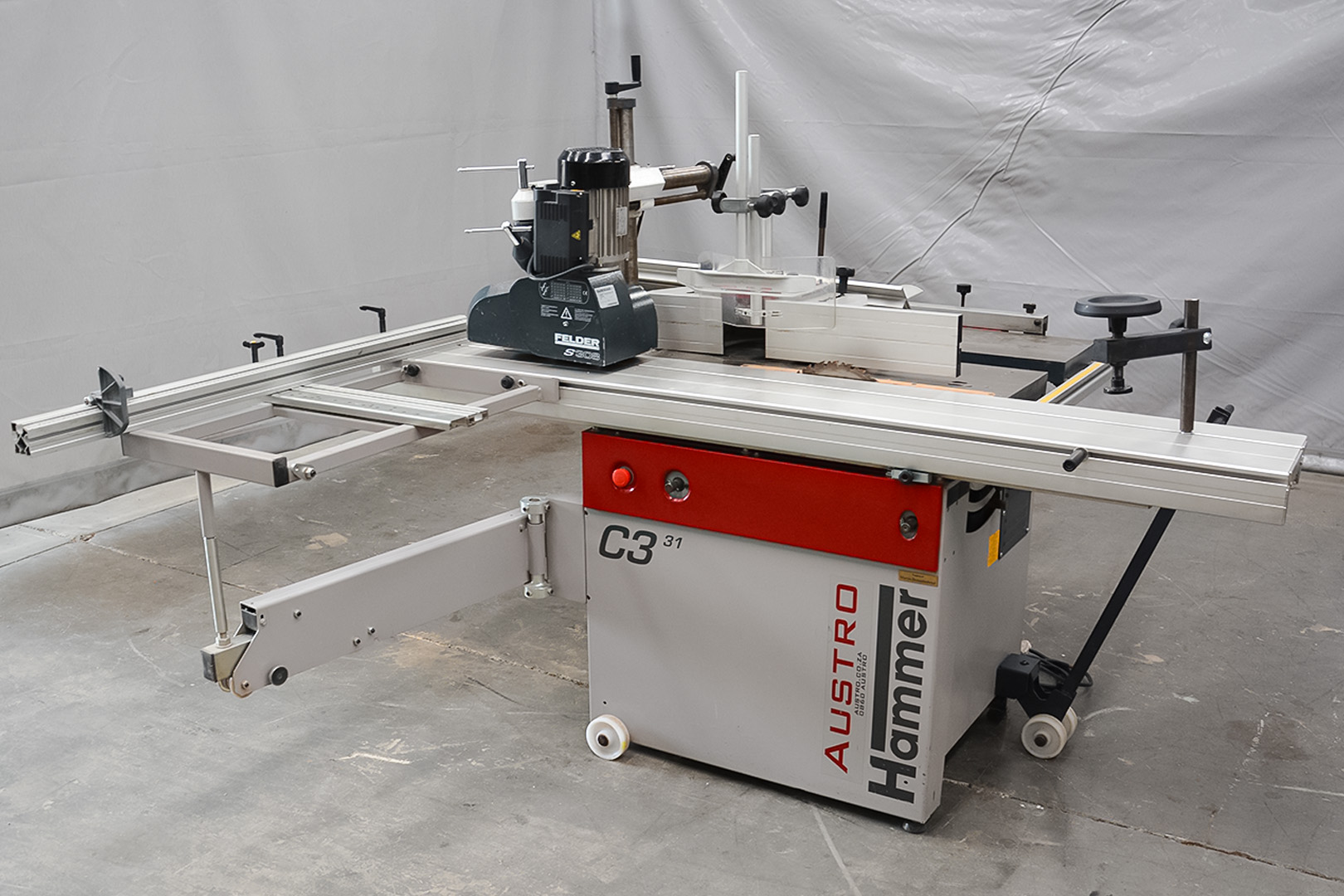

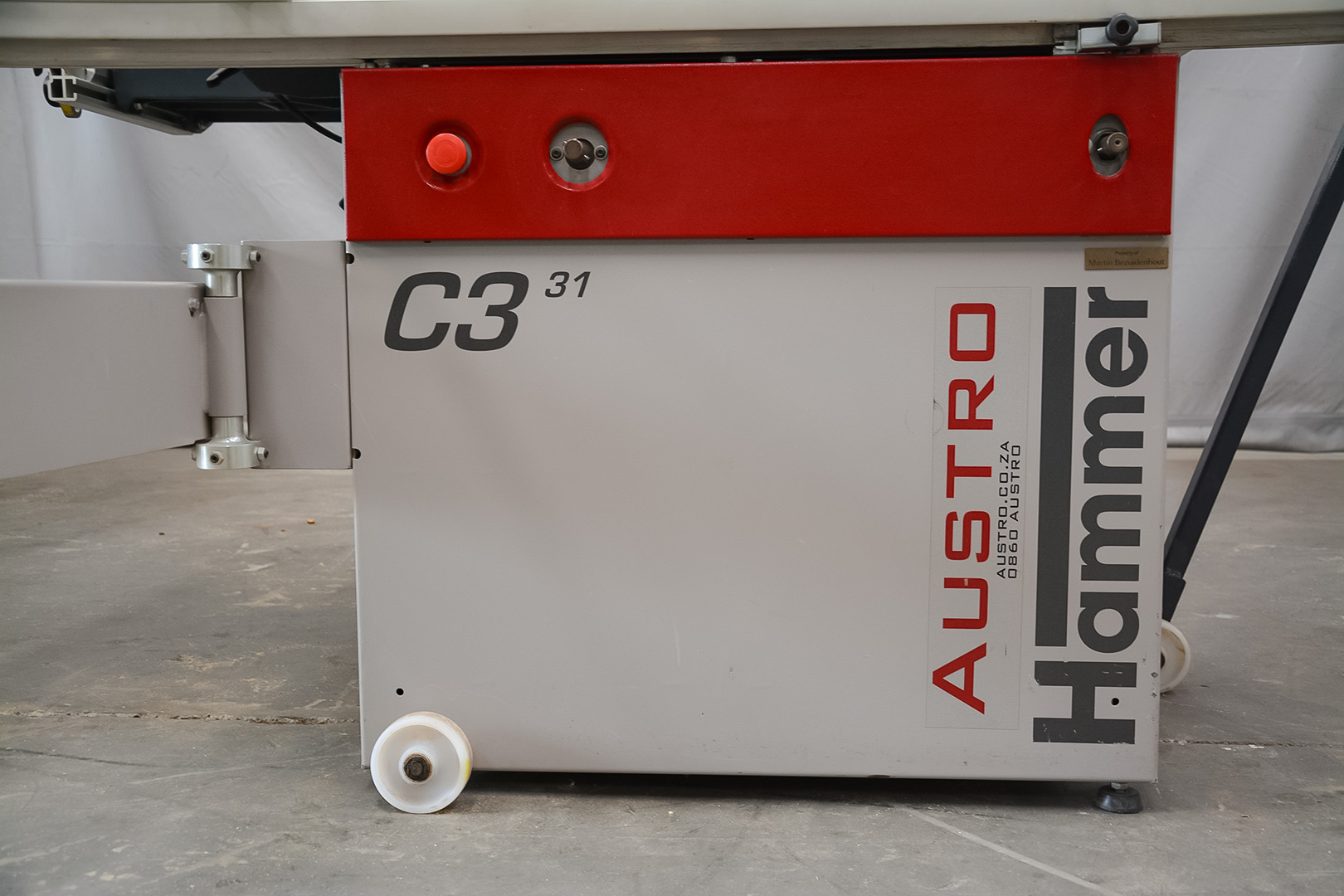

Hammer C3 31 Combination 5 In 1 Machine (Fully Serviced) (C023U5)

This item is SOLD. Please click here to view current stock.



Compact dimensions without sacrificing performance and versatility! Hammer. Affordable functionality and reliability Excellent condition and quality machine in immaculate state. A Felder produced machine known for reliability from Austria Europe. A great option for the hobbyist or workshop looking to save space, and large cost saving as compared to new! Perfect pre-owned option sold fully checked, serviced and with 3-month quality guarantee attached.

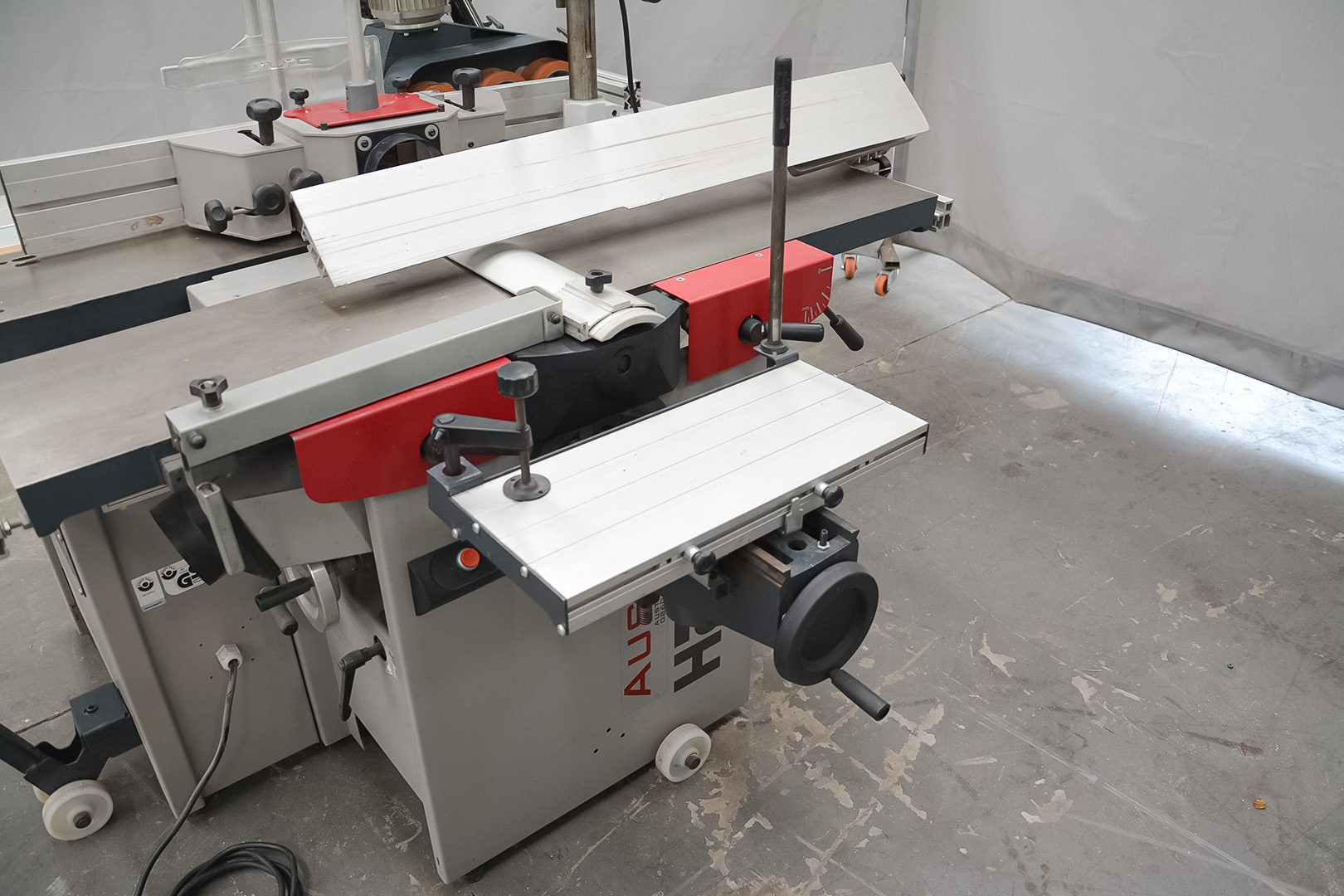

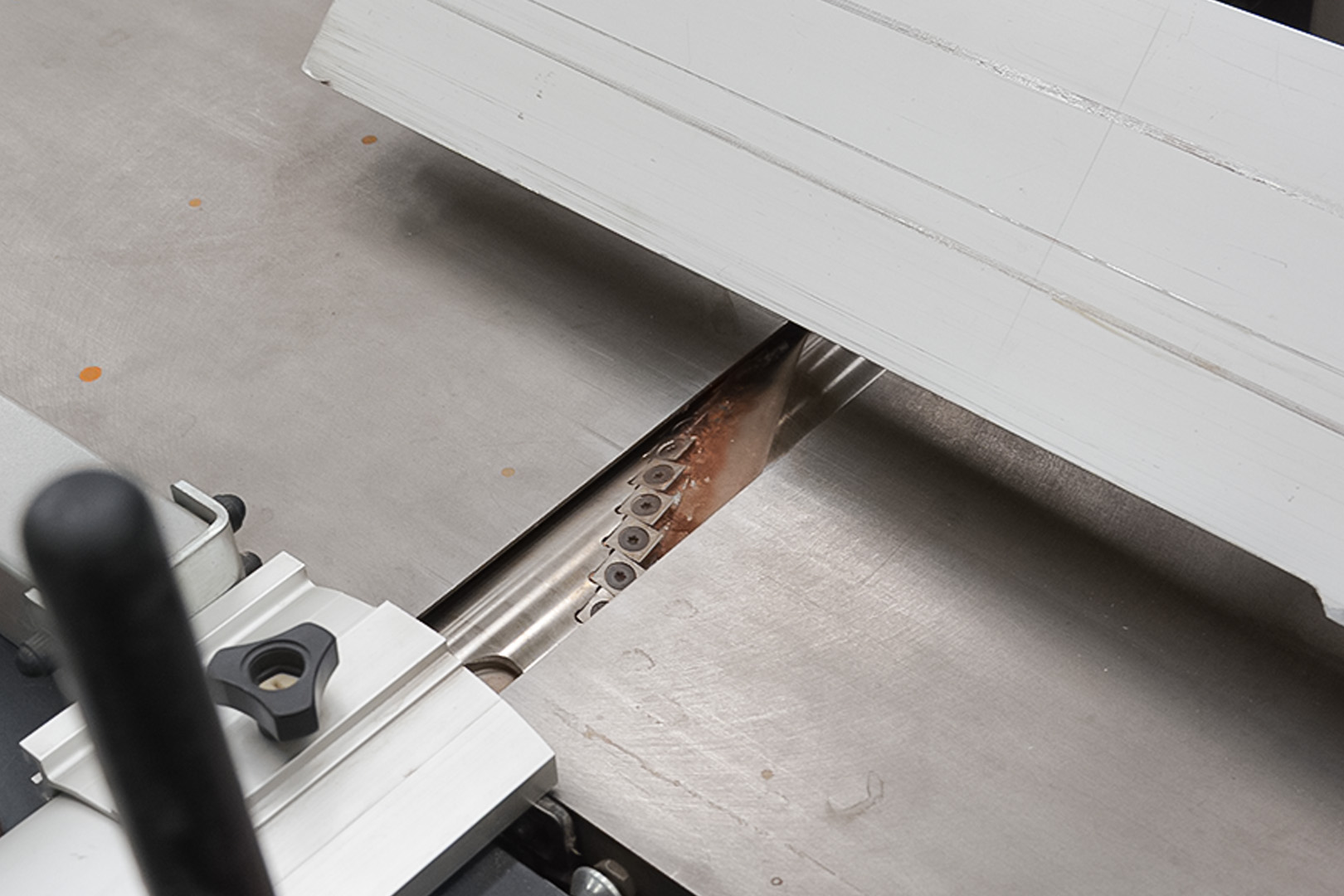

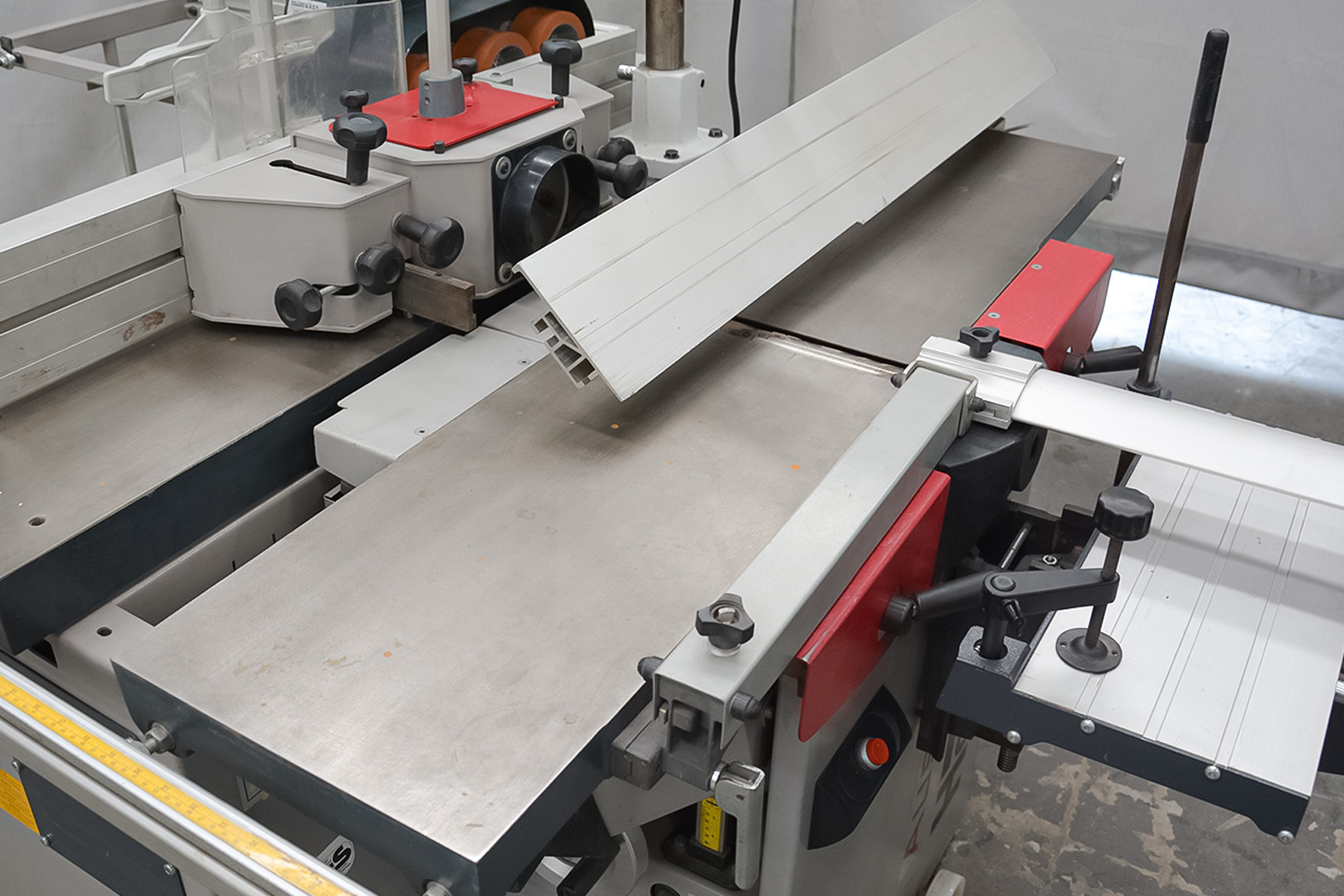

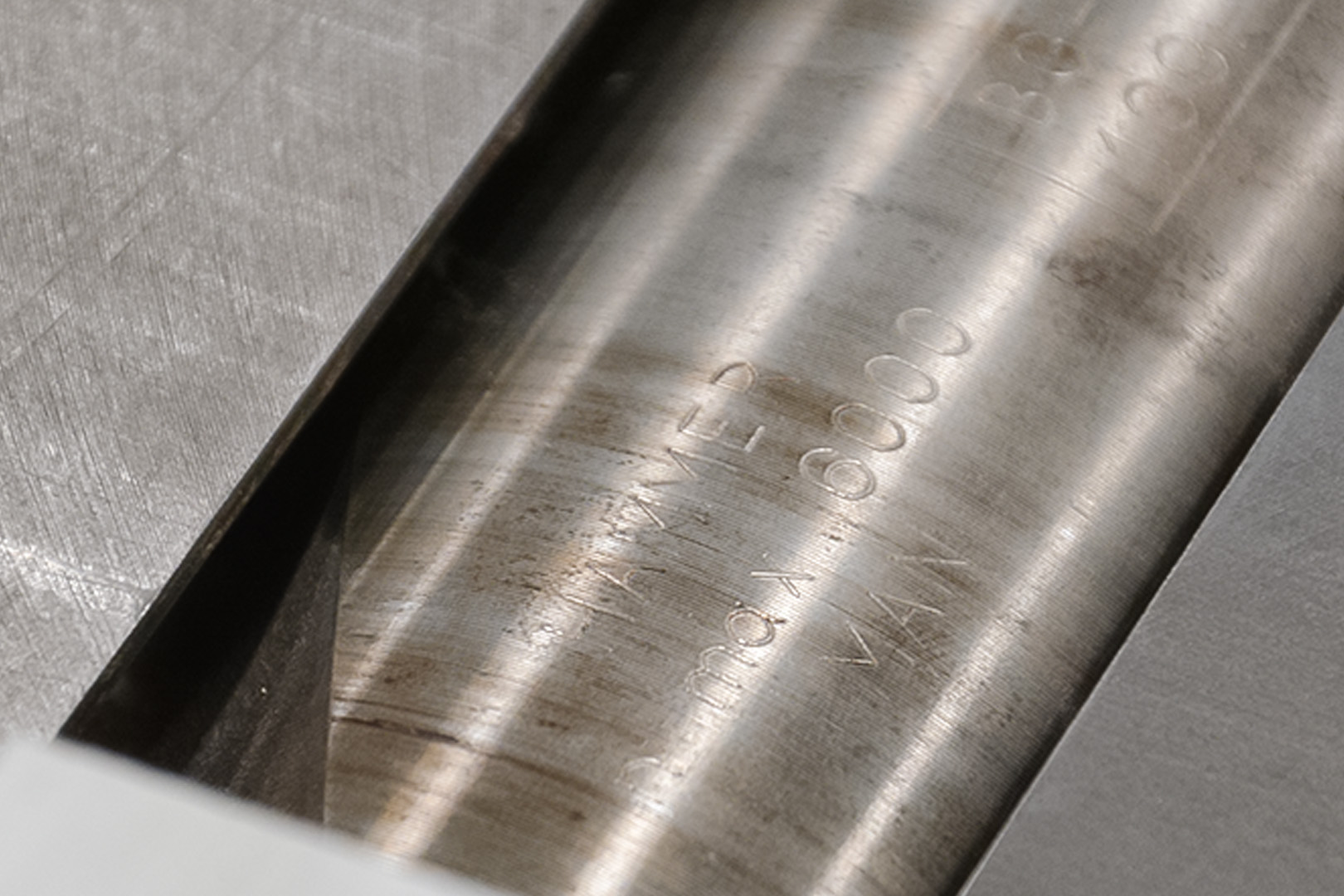

Surface Planer and Cutter block
5 in 1 – Sliding panel saw/Spindle moulder/Surface planer/Thickness planer/Mortise attachment
Motor 4.0 HP (3.0 kW) Single phase/220v
Forward and Reverse Run

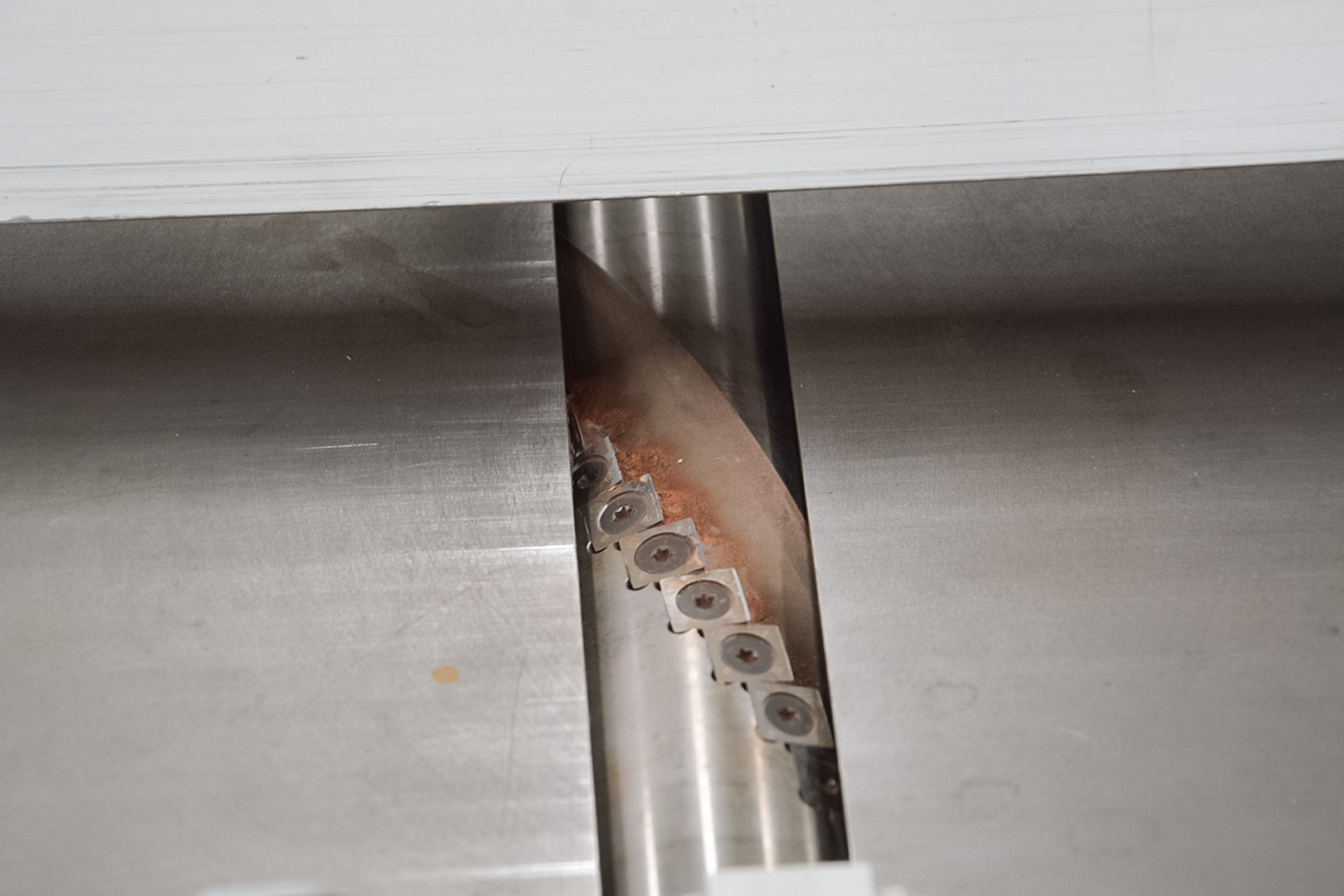

Number of knives Silent-POWER spiral cutter block
Maximum depth of cut 4mm
Surface planing width 310mm
Surface planer table length 1400mm

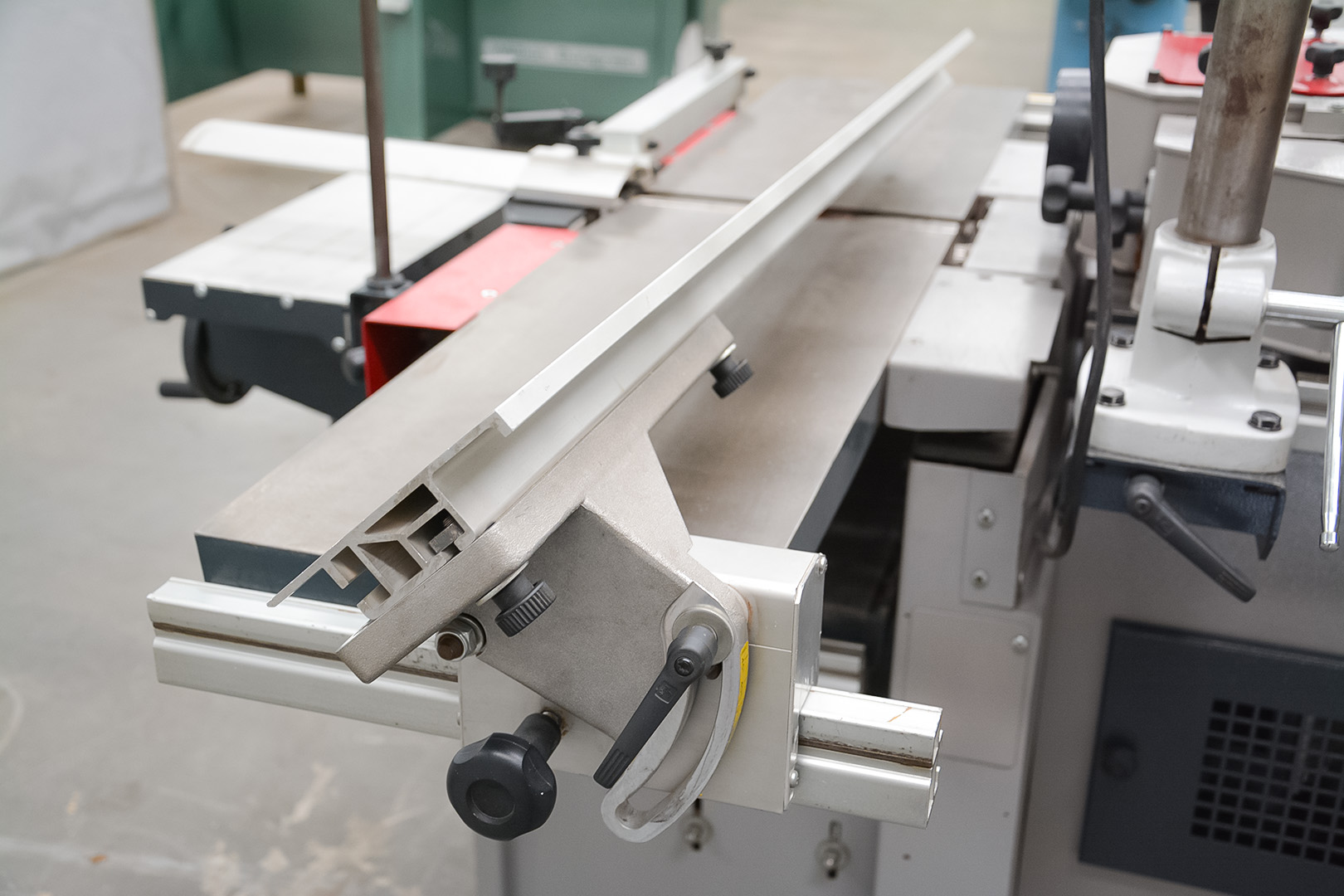

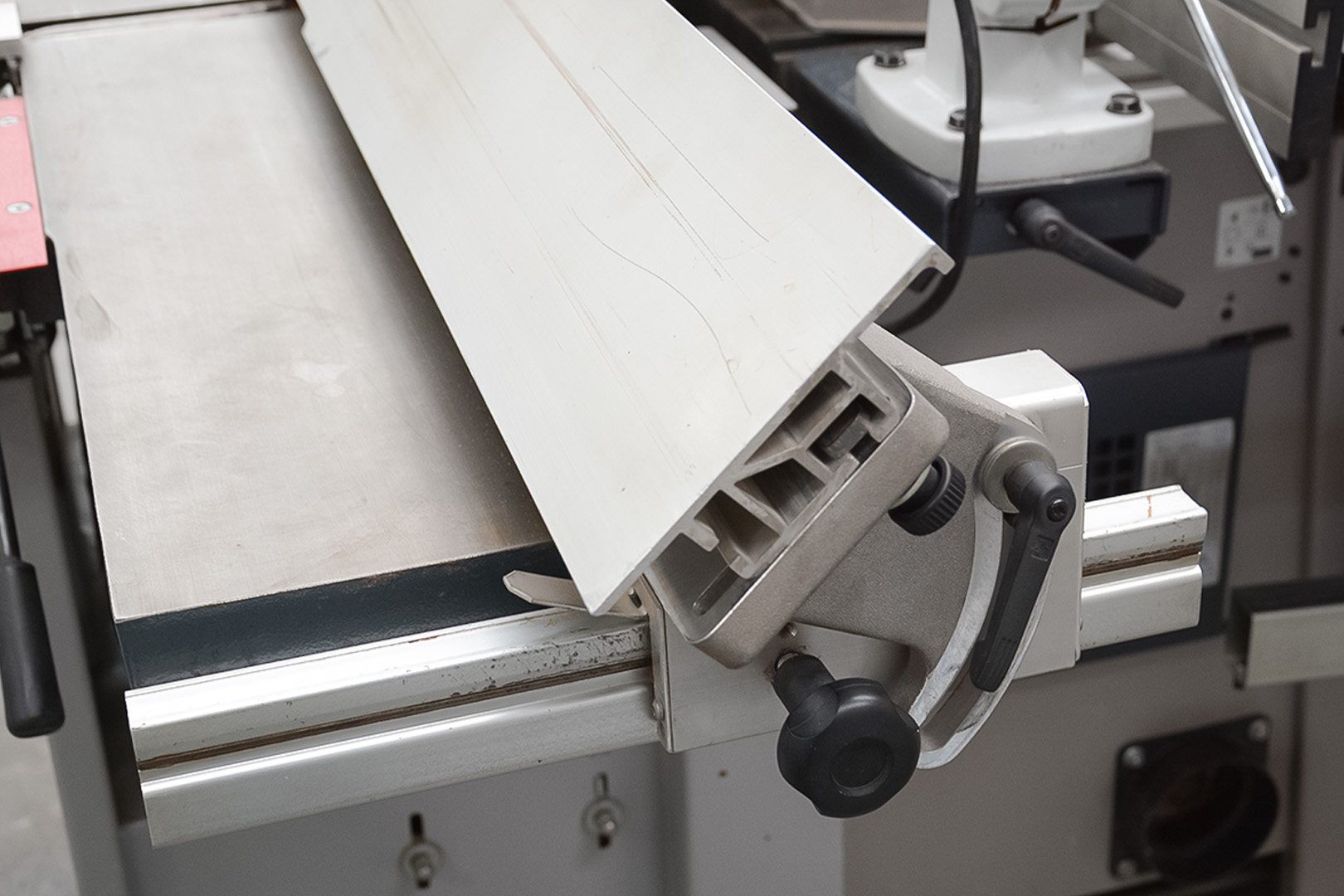

Length of surface planer fence 150mm x 1500mm

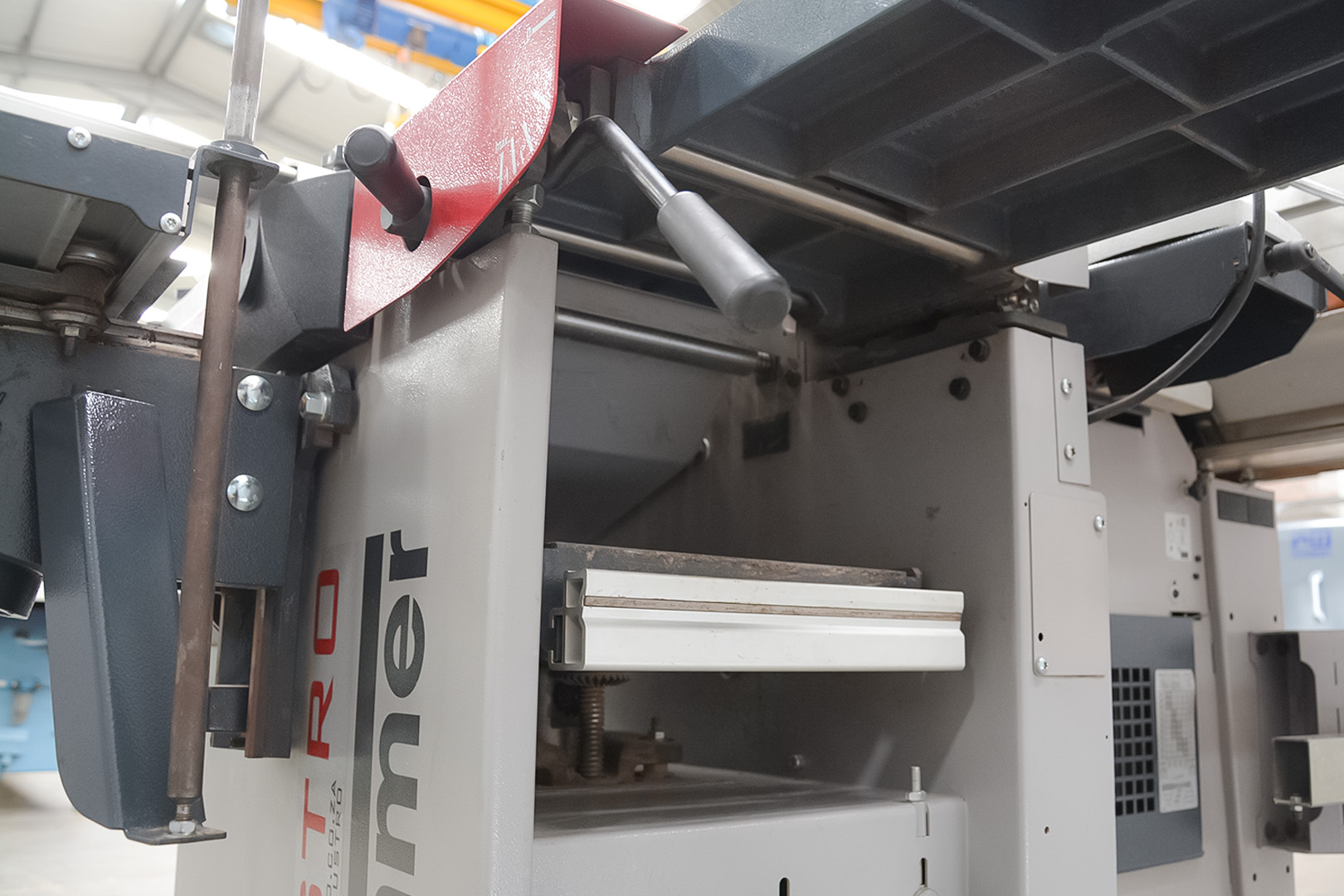

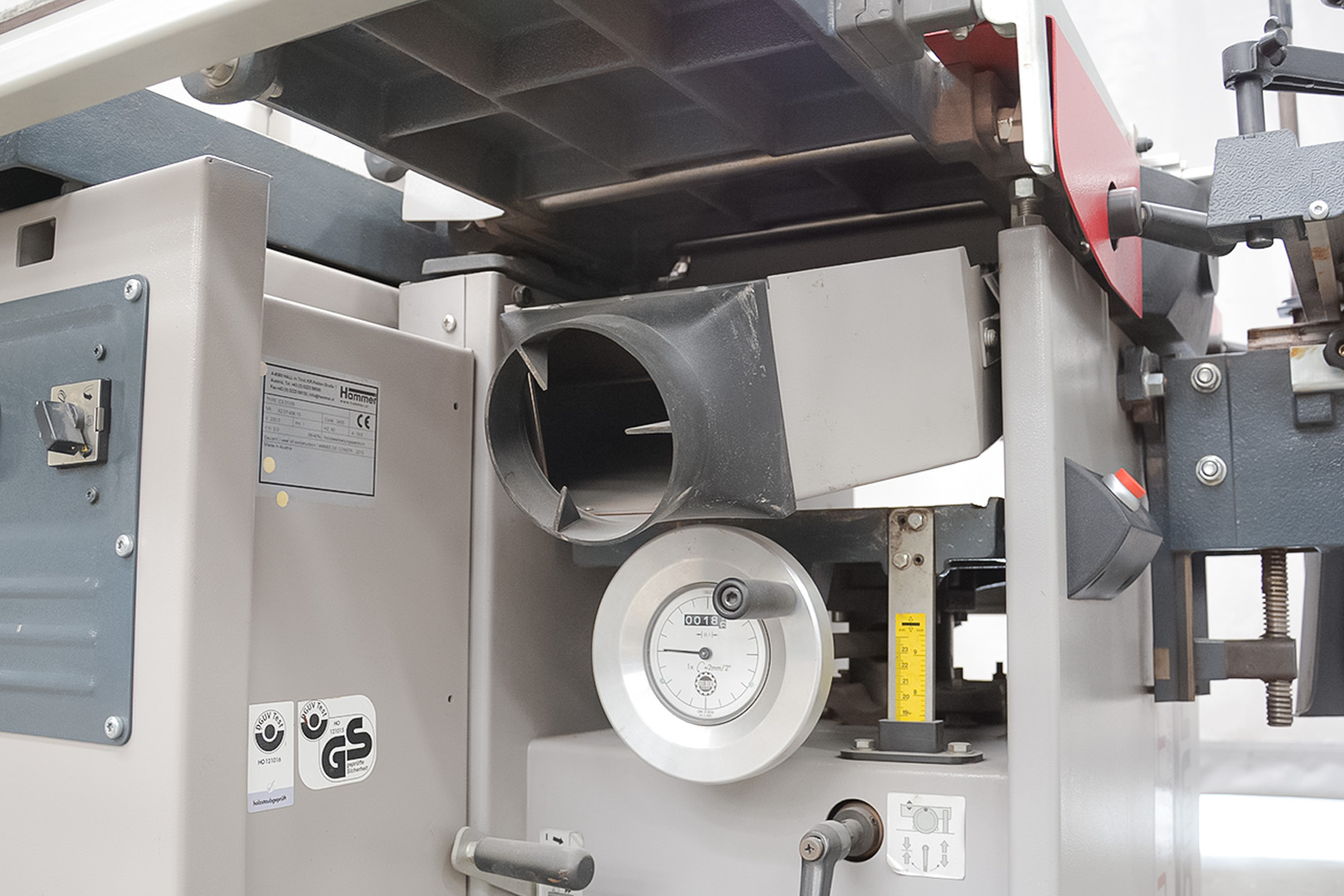

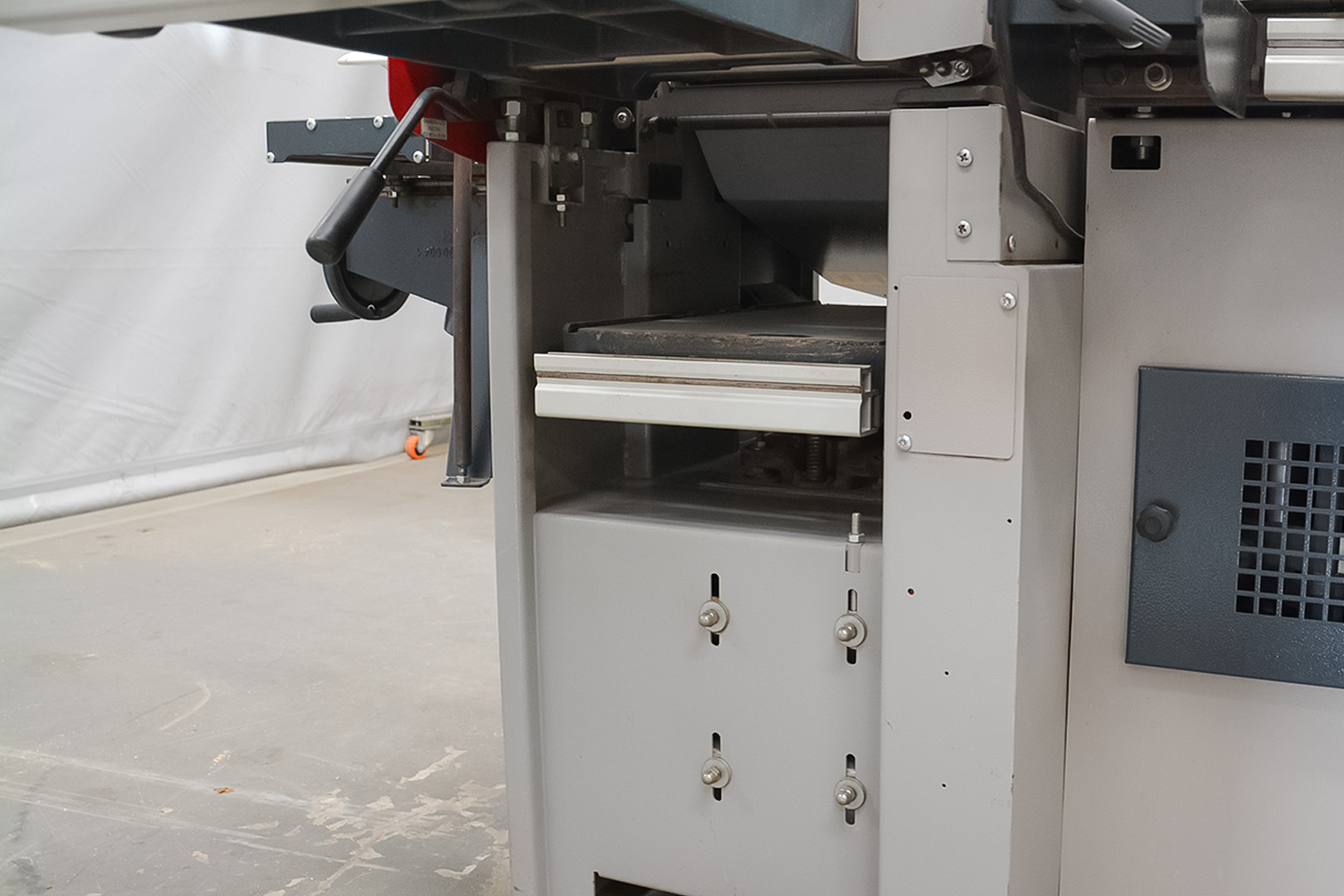

Thickness planer unit
Thickness planing width 306mm
Thickness table length 540mm
Thickness height min.–max. 4–225 mm
Synchronized feeder drive 6 m/min. (50 Hz)

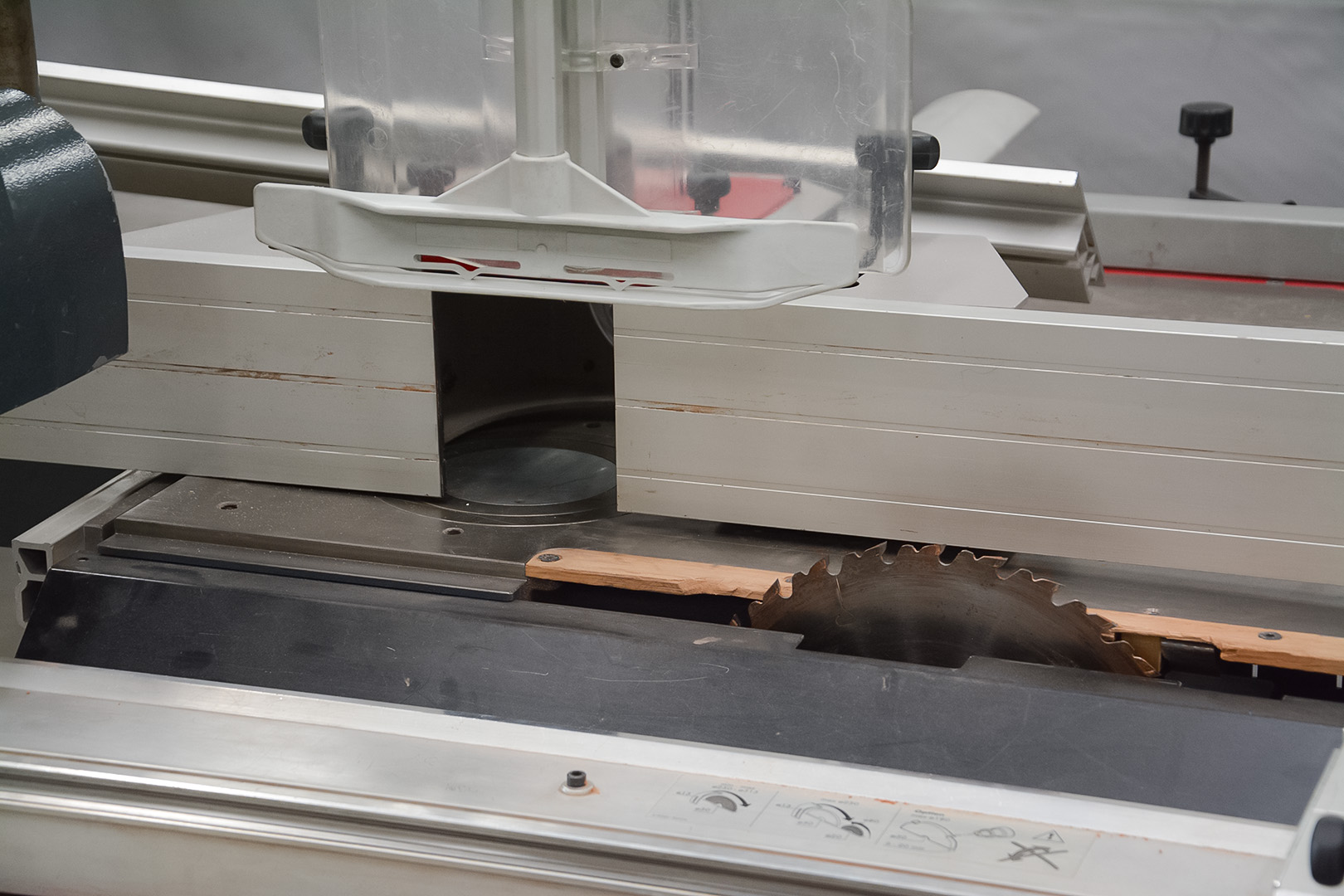

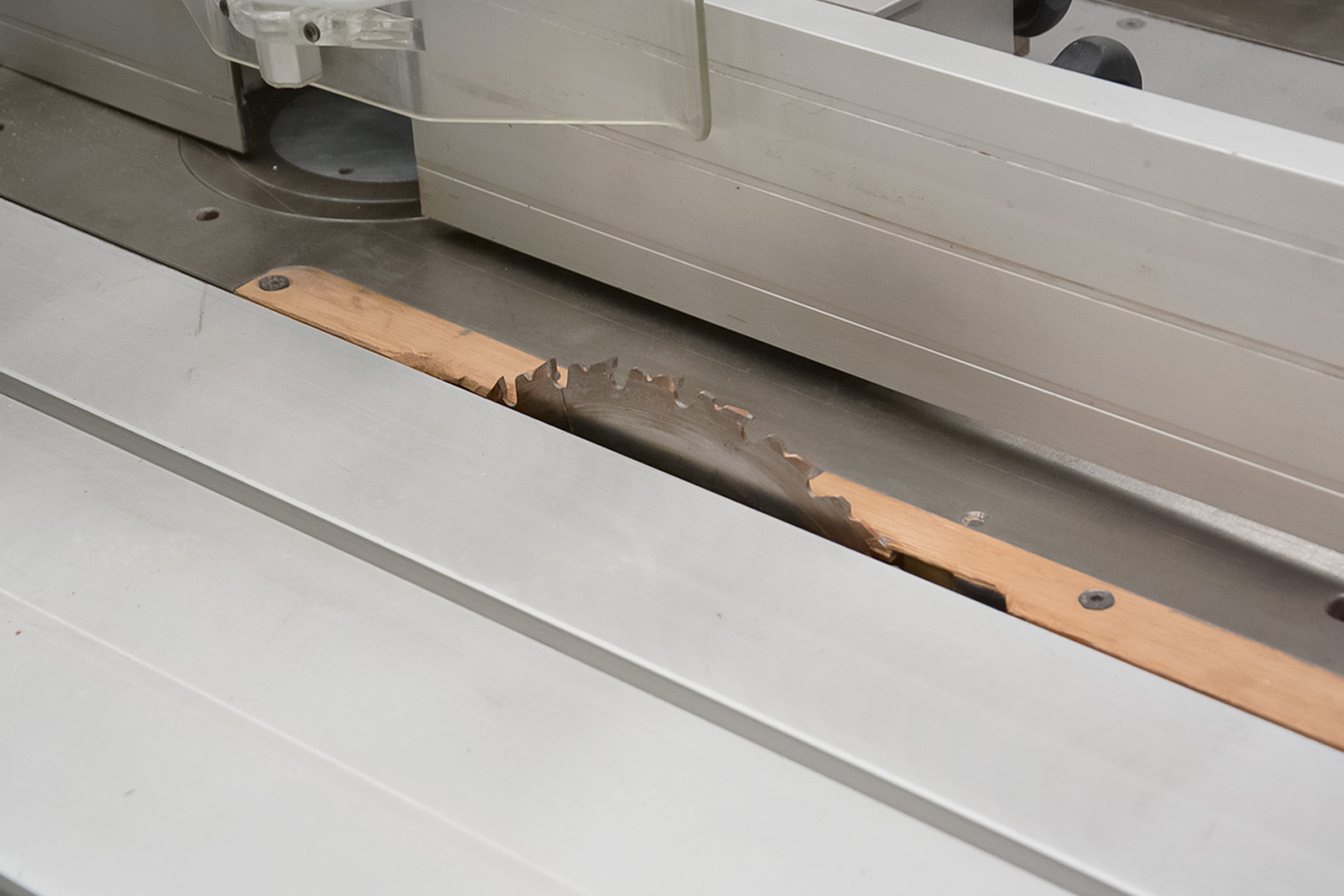

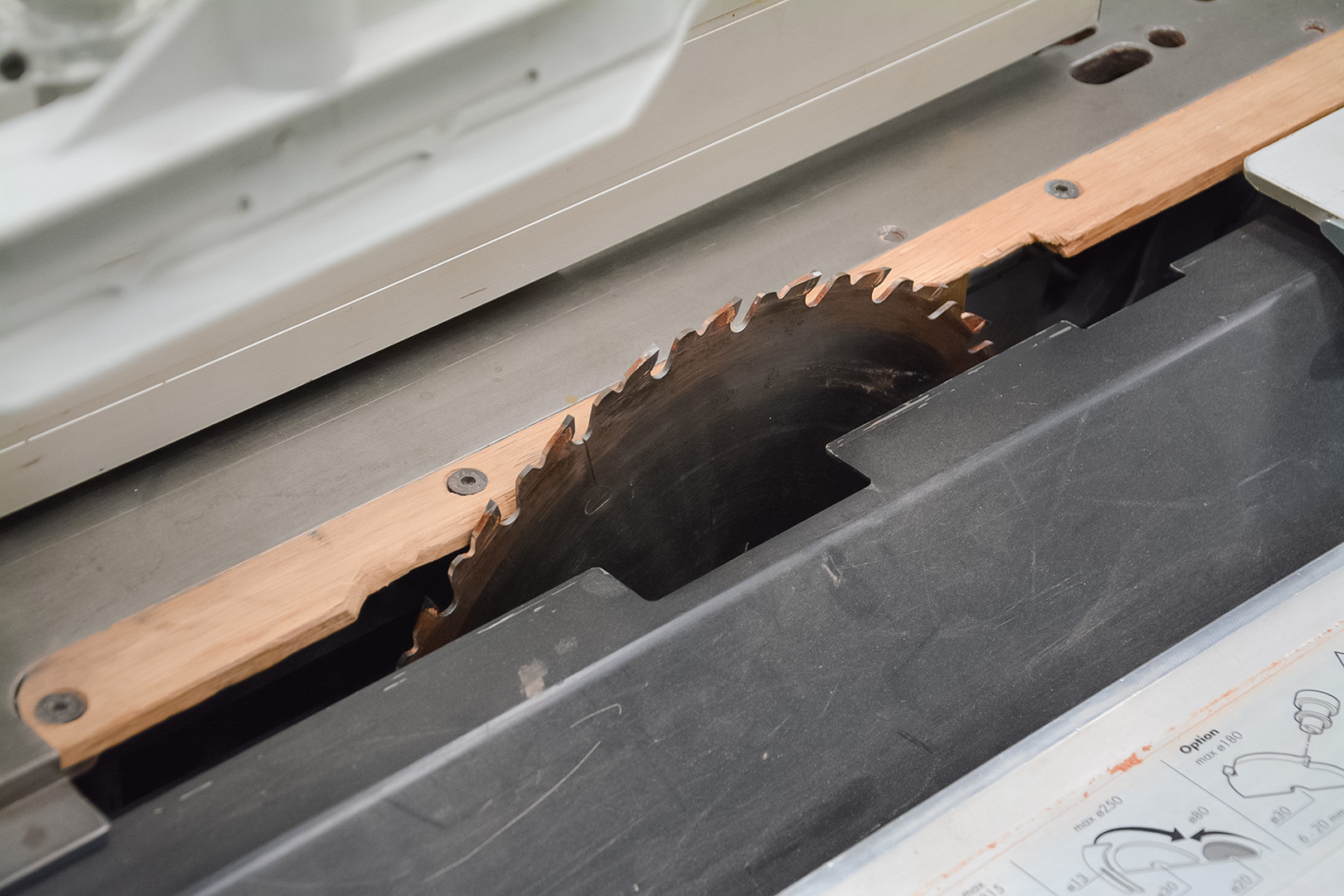

Saw Unit

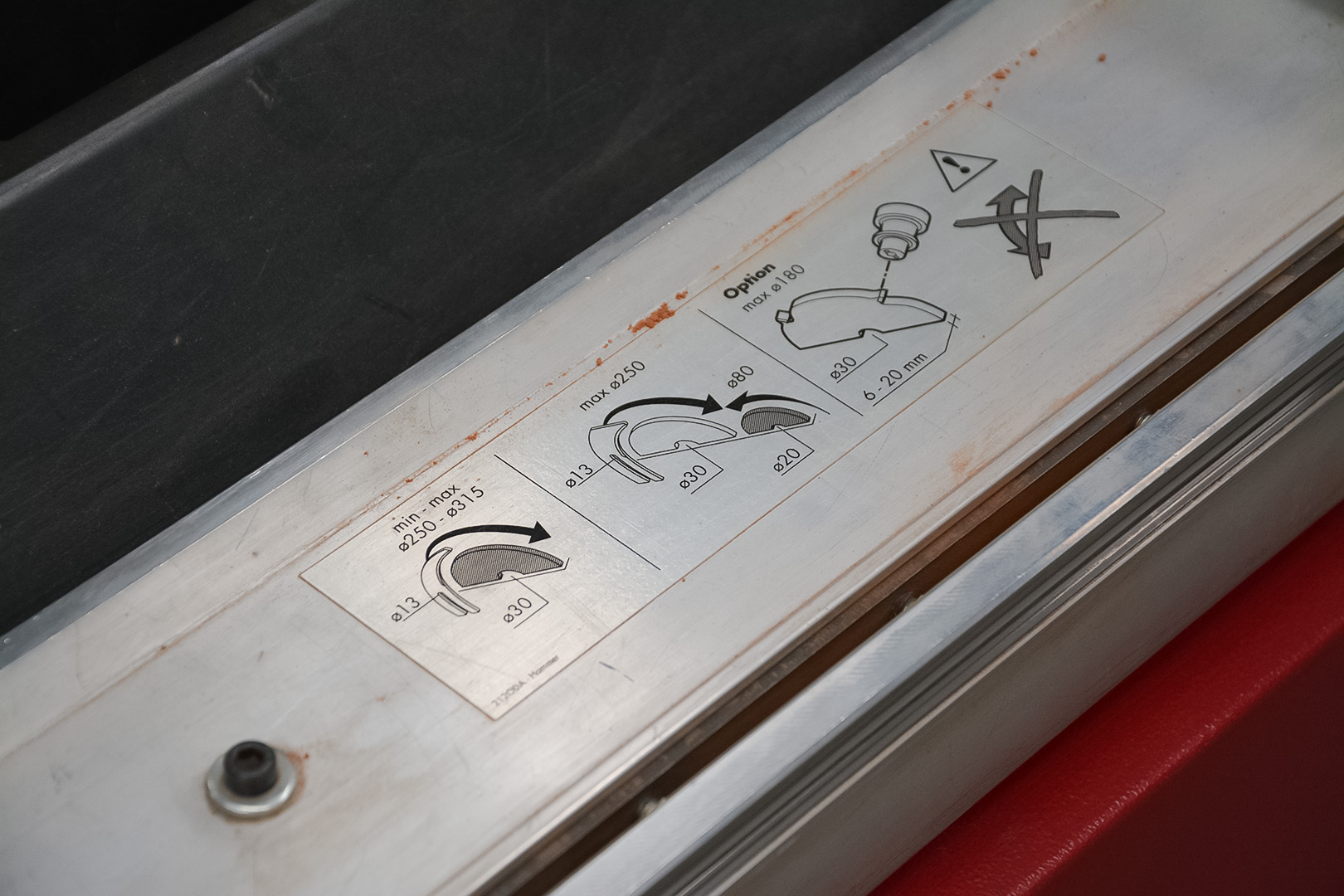

Main sawblade dia. 250–315 mm, Saw unit speed 4800 rpm

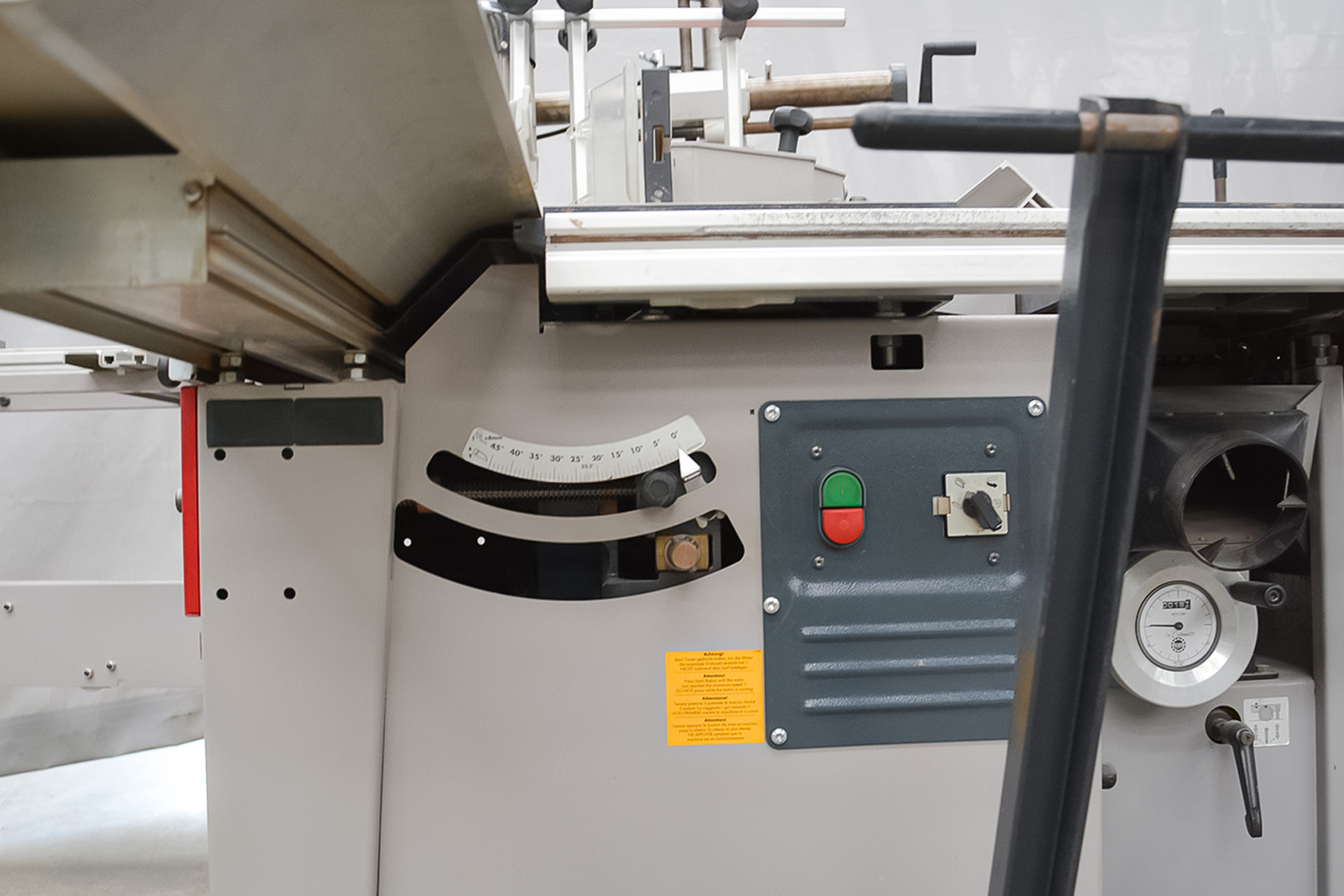

Saw blade tilting from 90°–45°, Max. cutting height 103 mm
Saw-spindle moulder table 860mm x 300mm

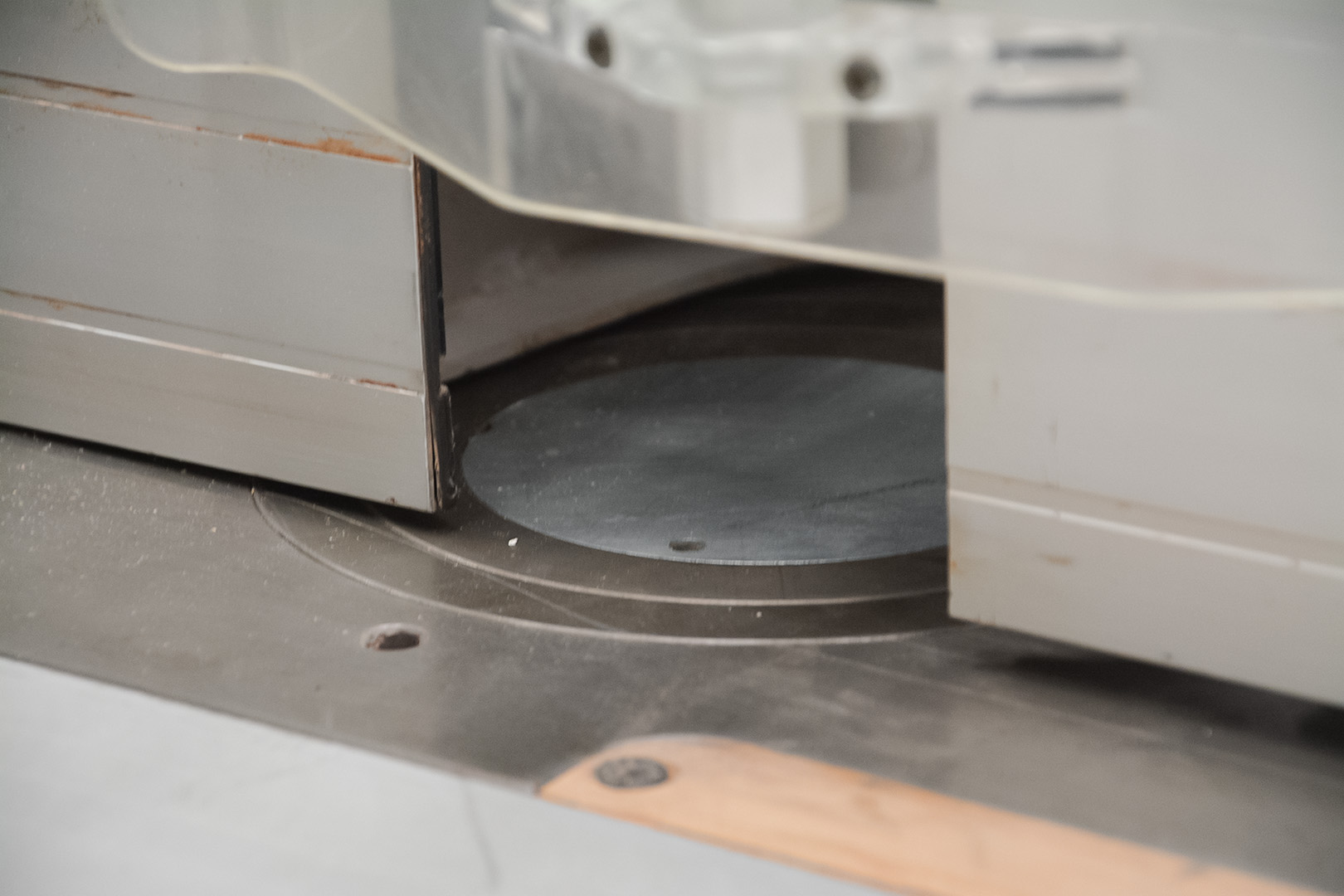

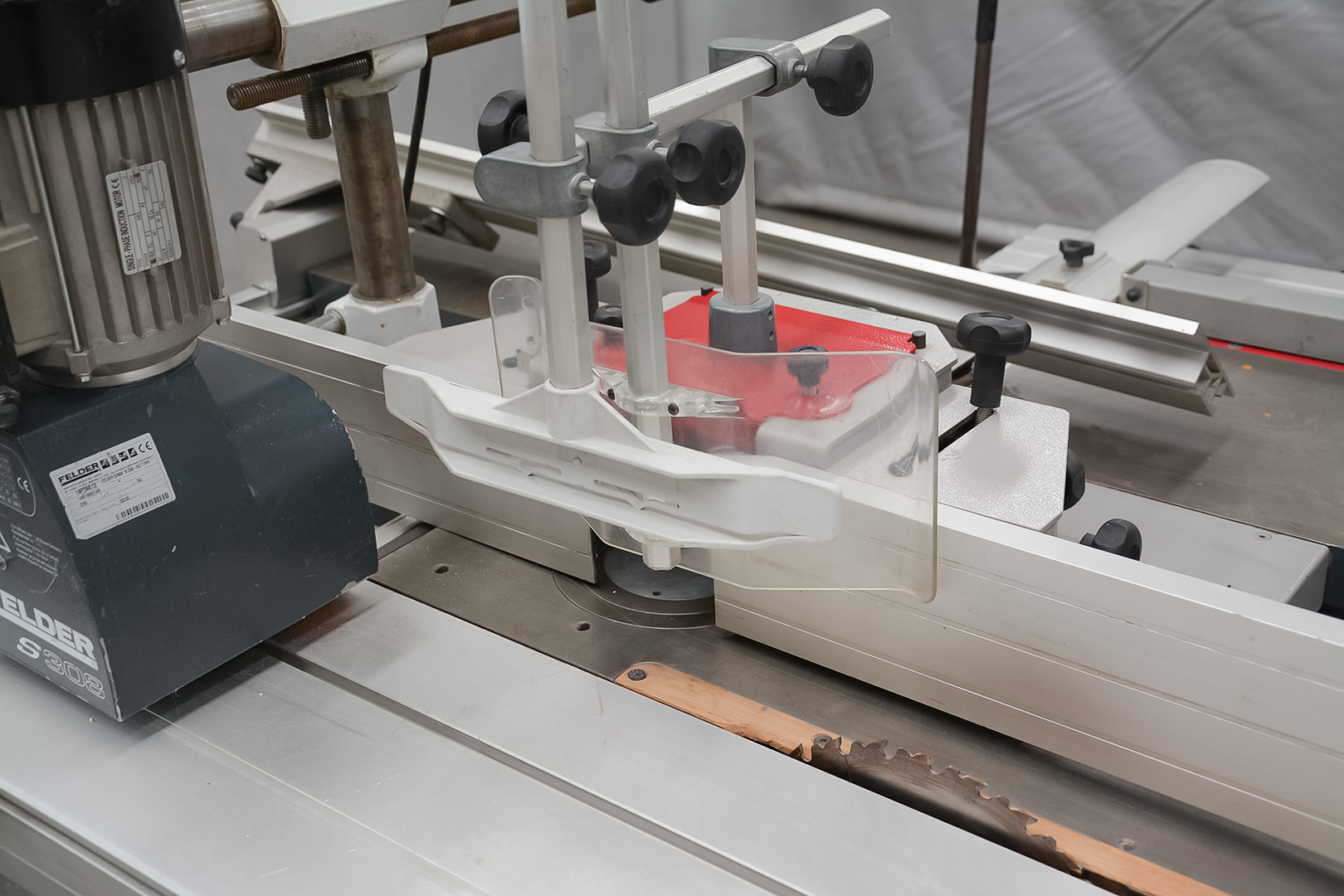

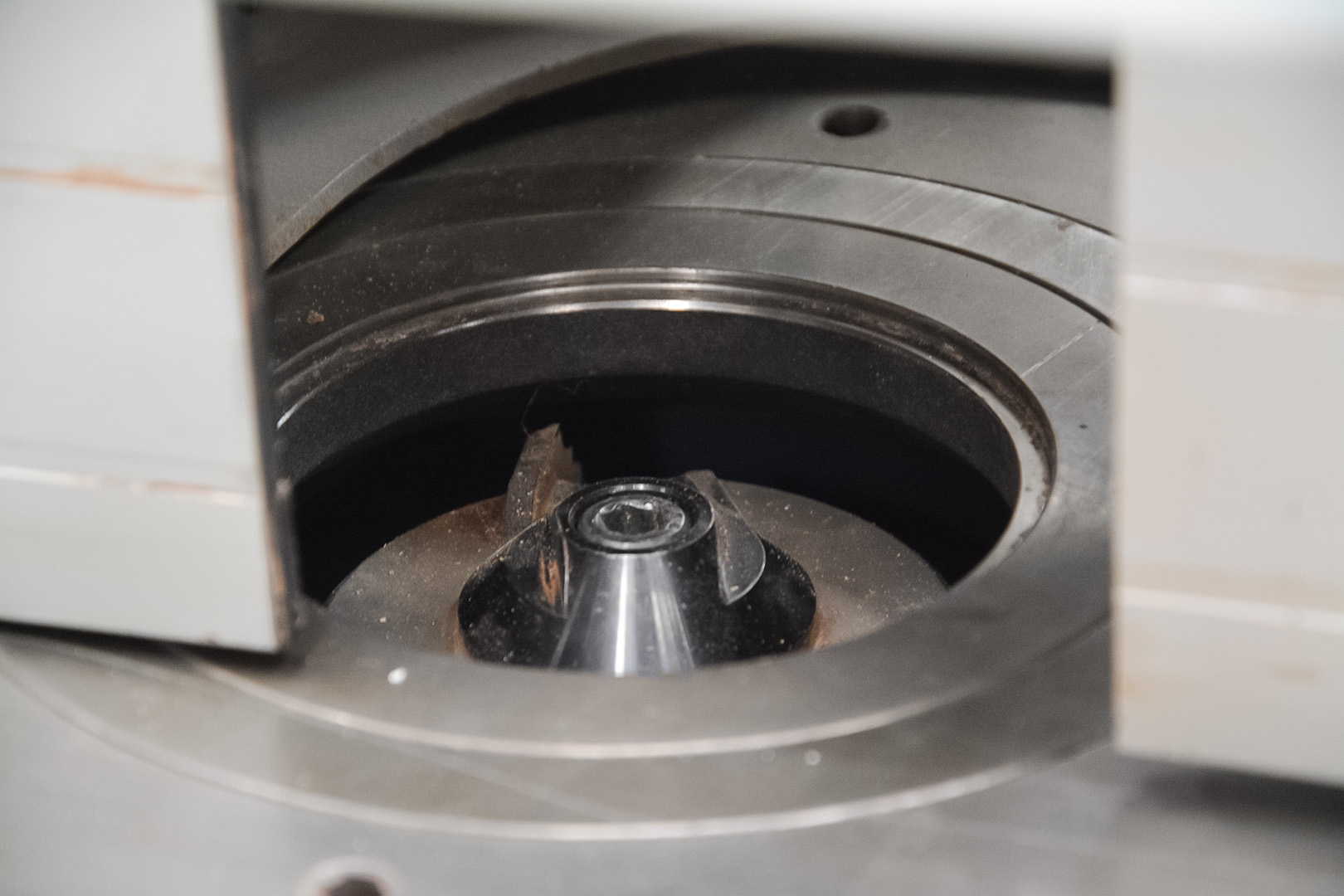

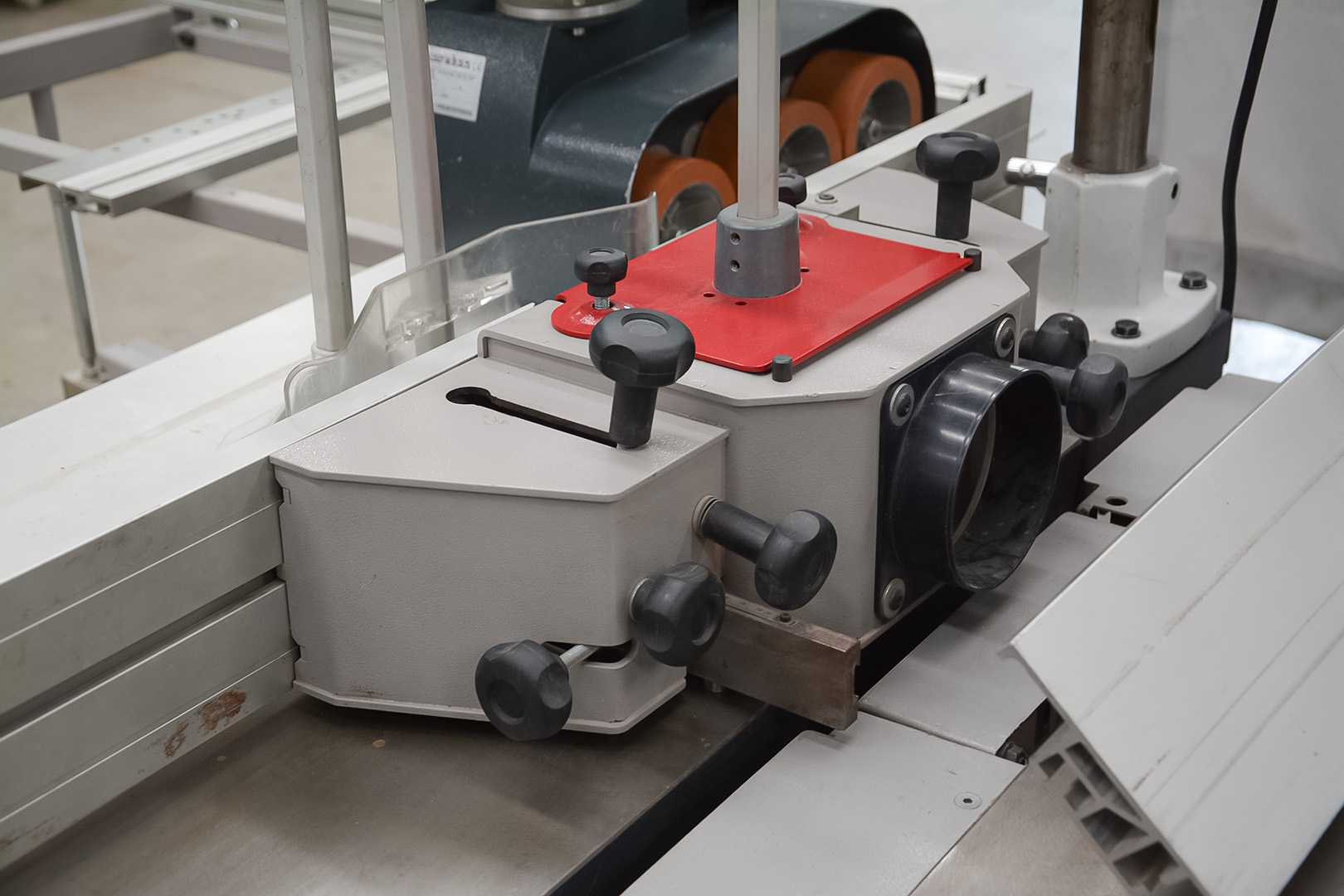

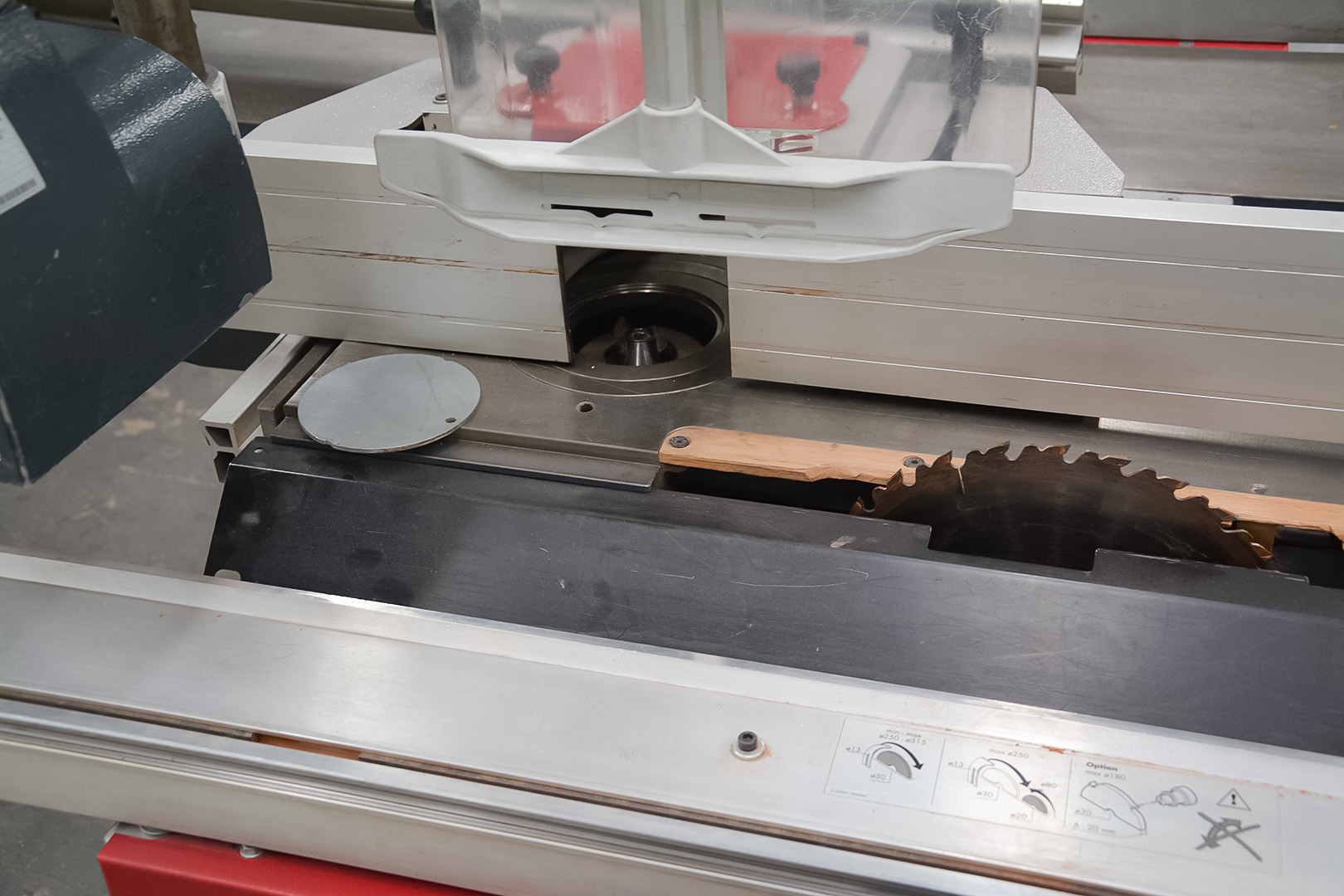

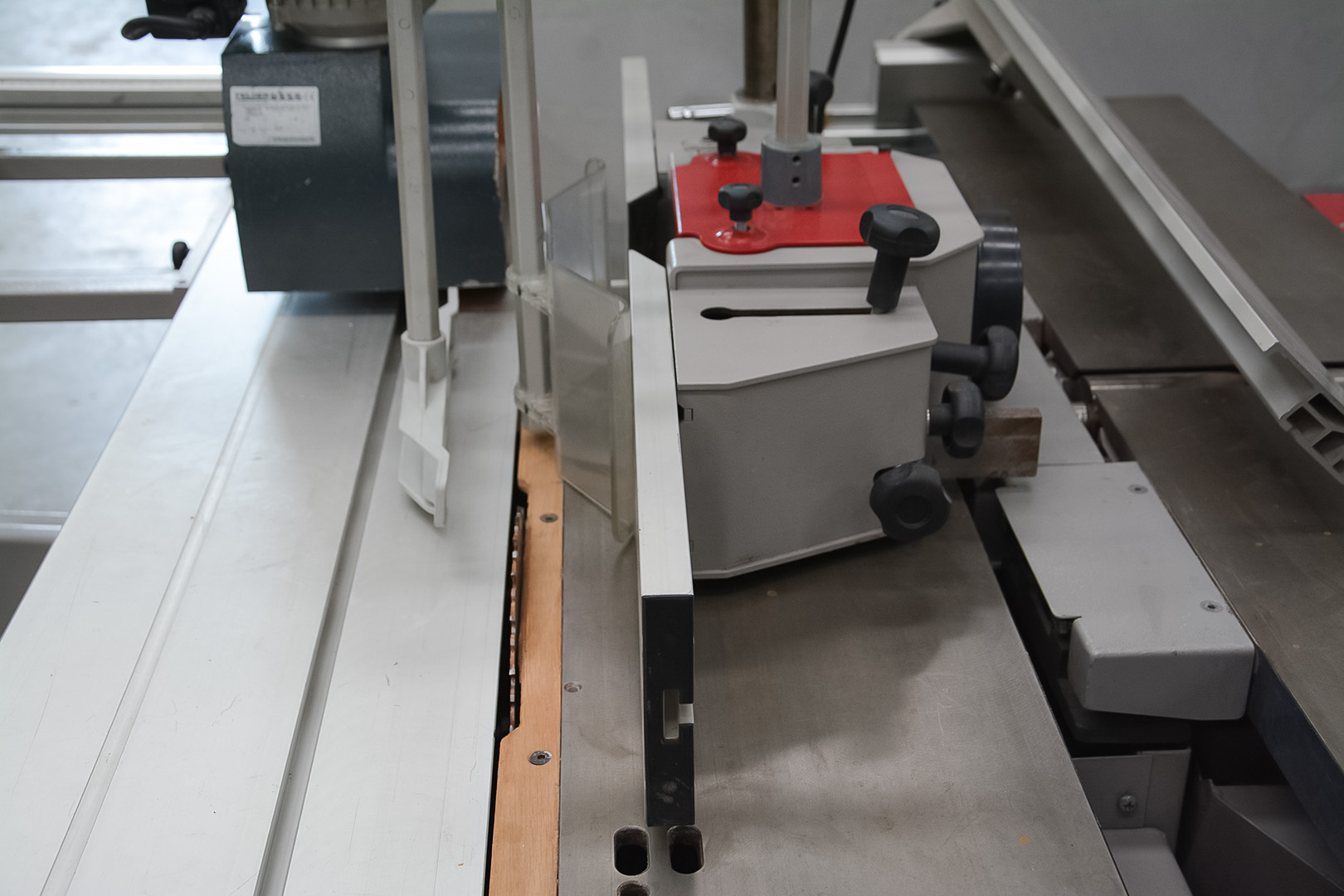

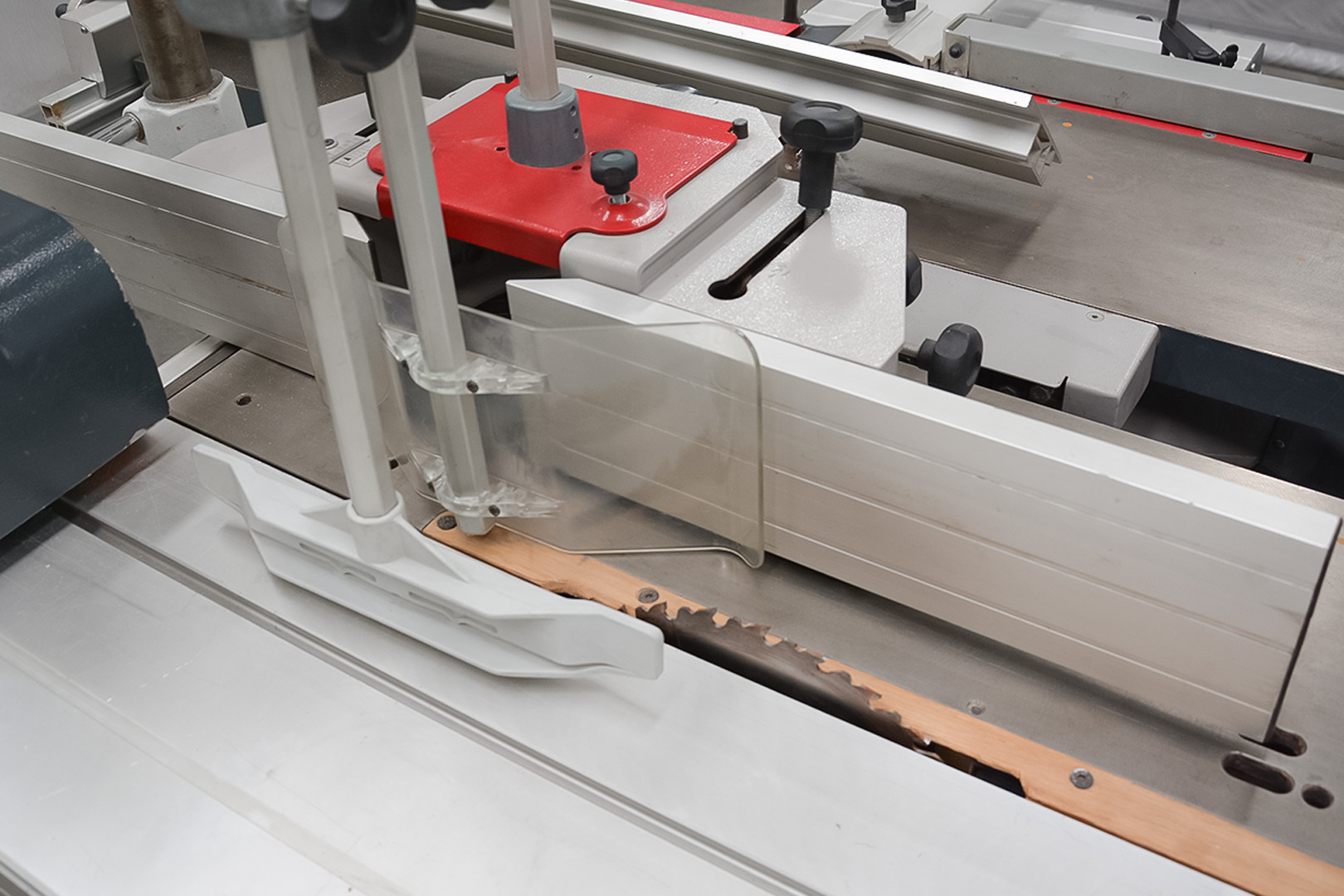

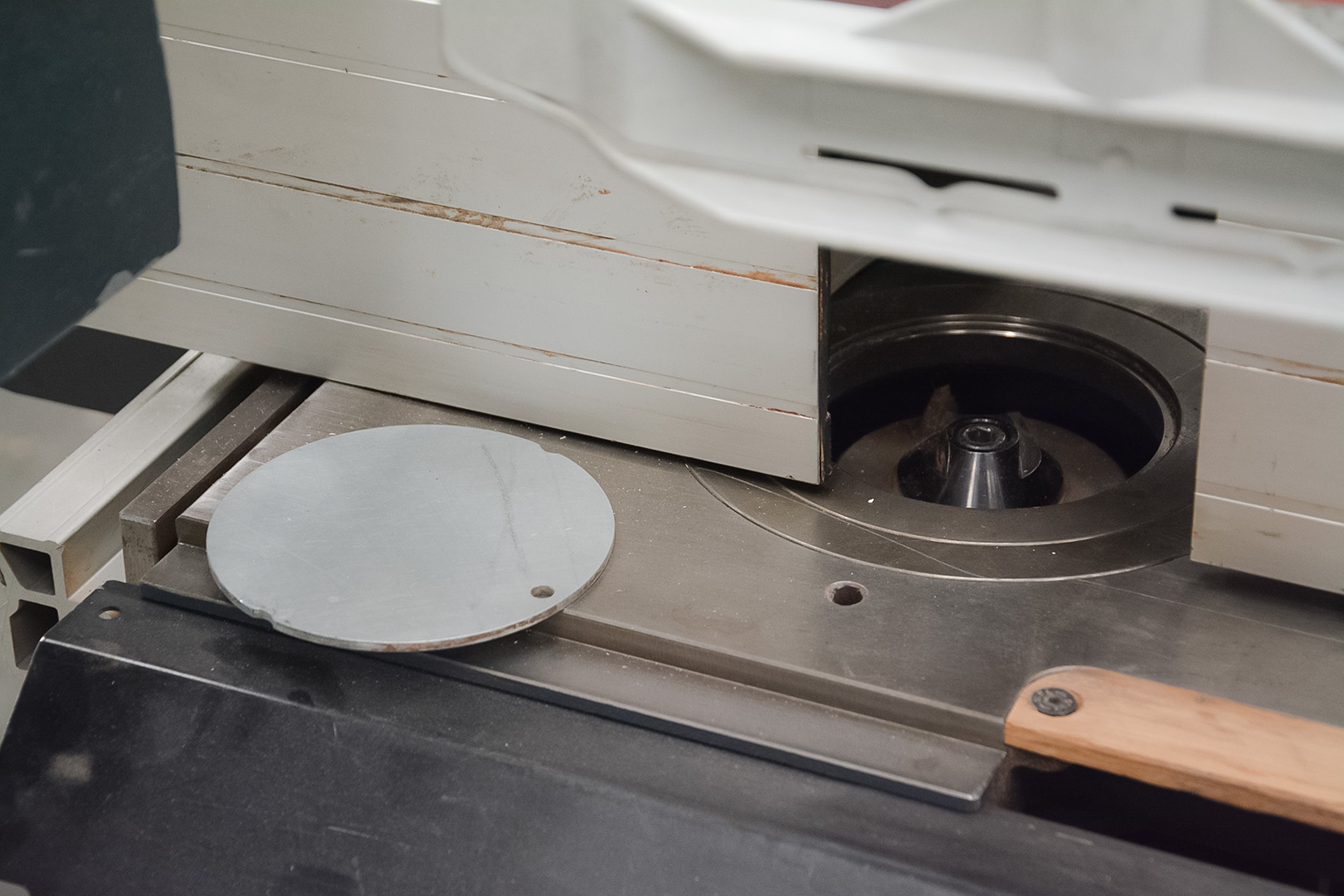

Spindle Moulder Unit and Spindle Fence
Speed 3000/6000/8000/10.000 rpm
Moulder spindle dia. 30 mm, usable height 100 mm
Spindle fence 220 for max. ­tooling diameter 220 mm
Max. tooling diameter beneath table at 90° – 180mm

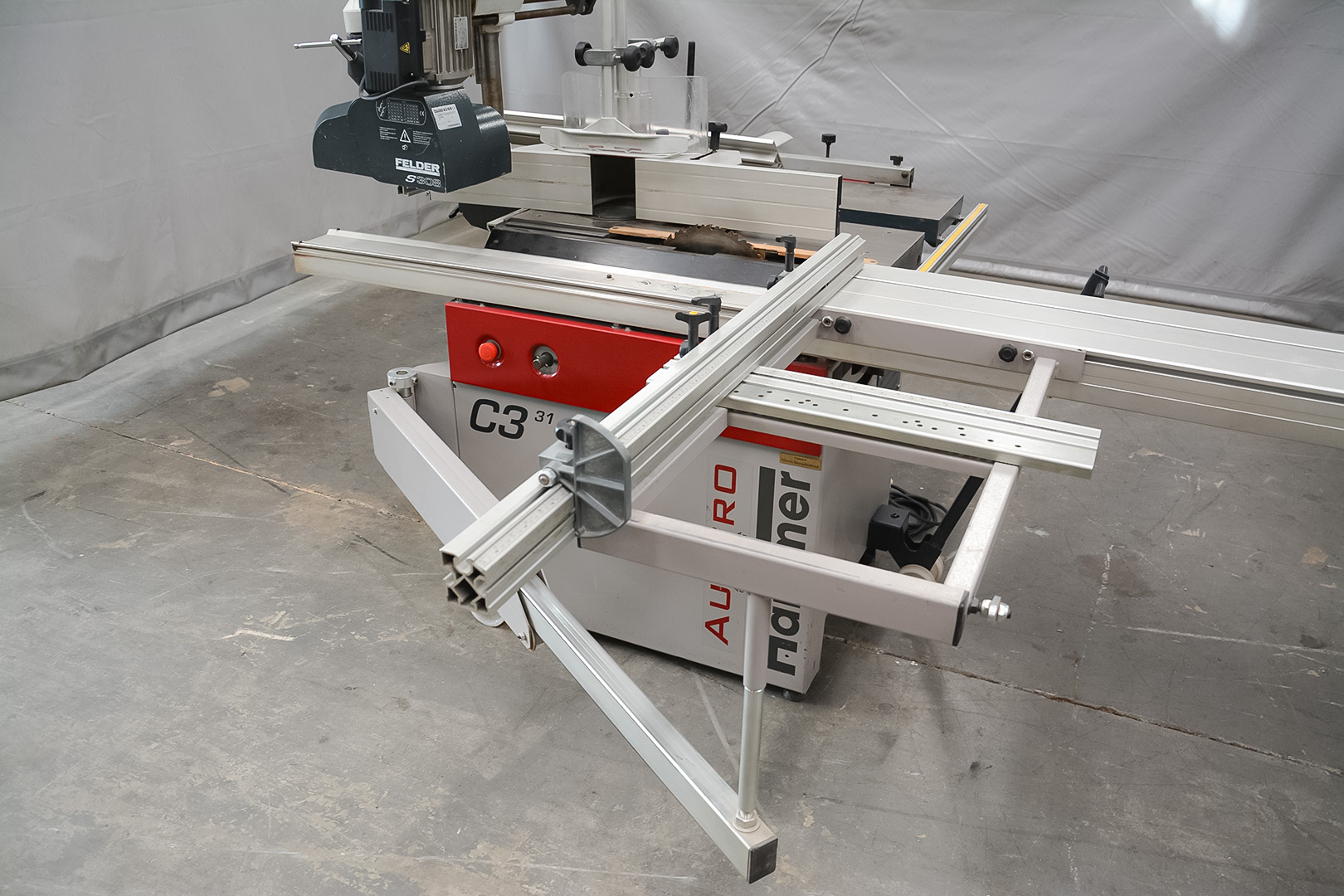

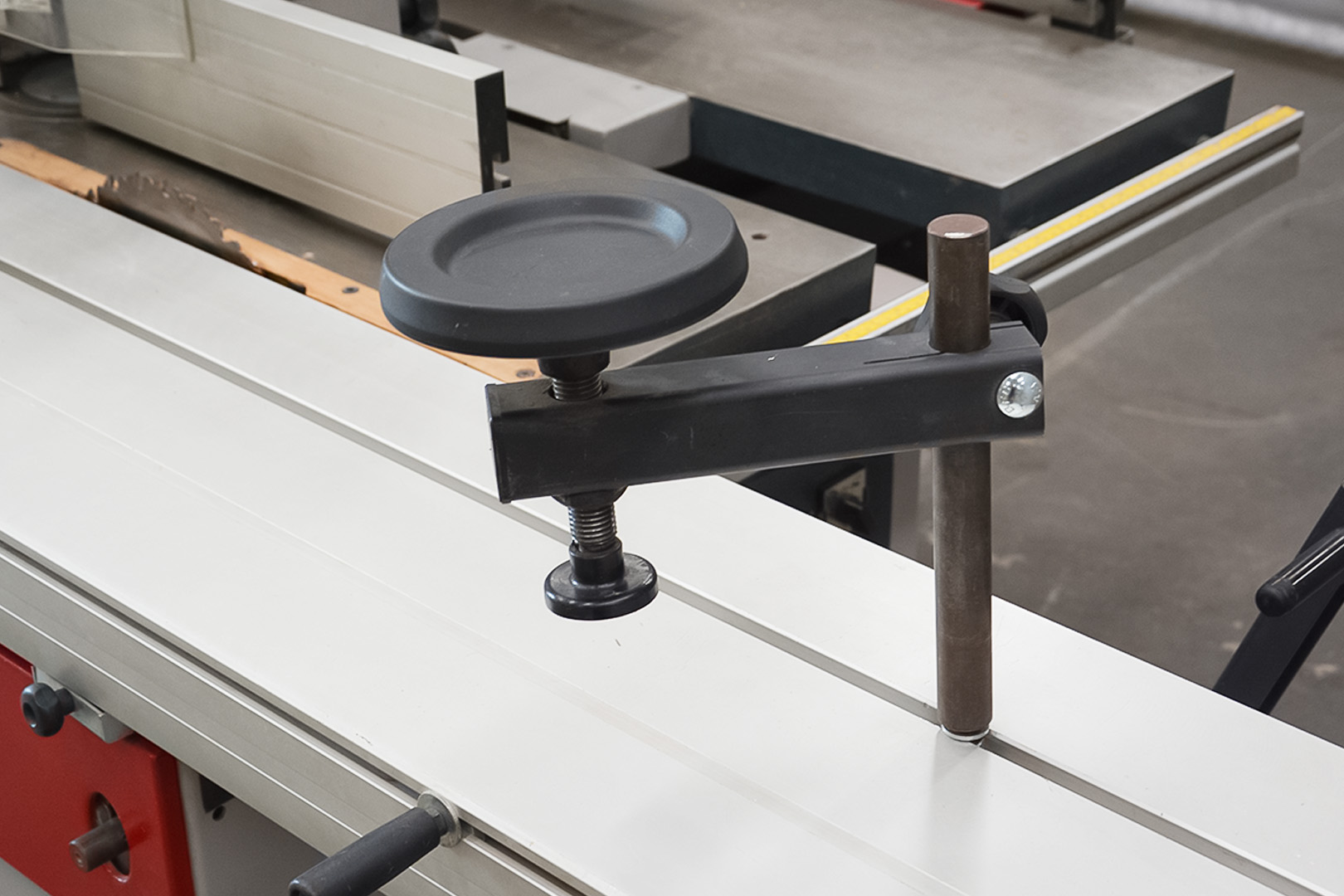

Sliding Table
Format sliding table 2000 mm(78″), cutting length 2050 mm(80″)*

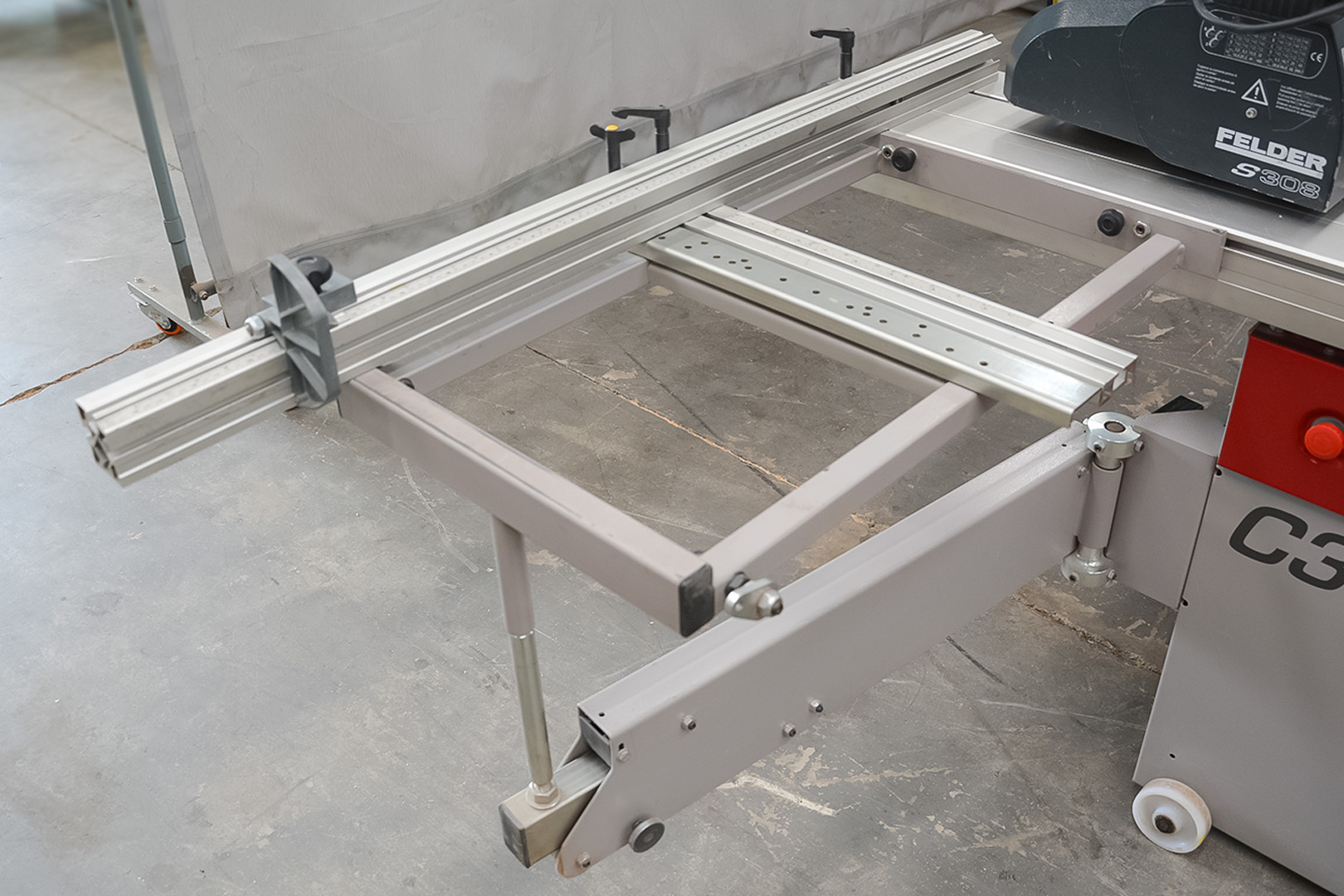

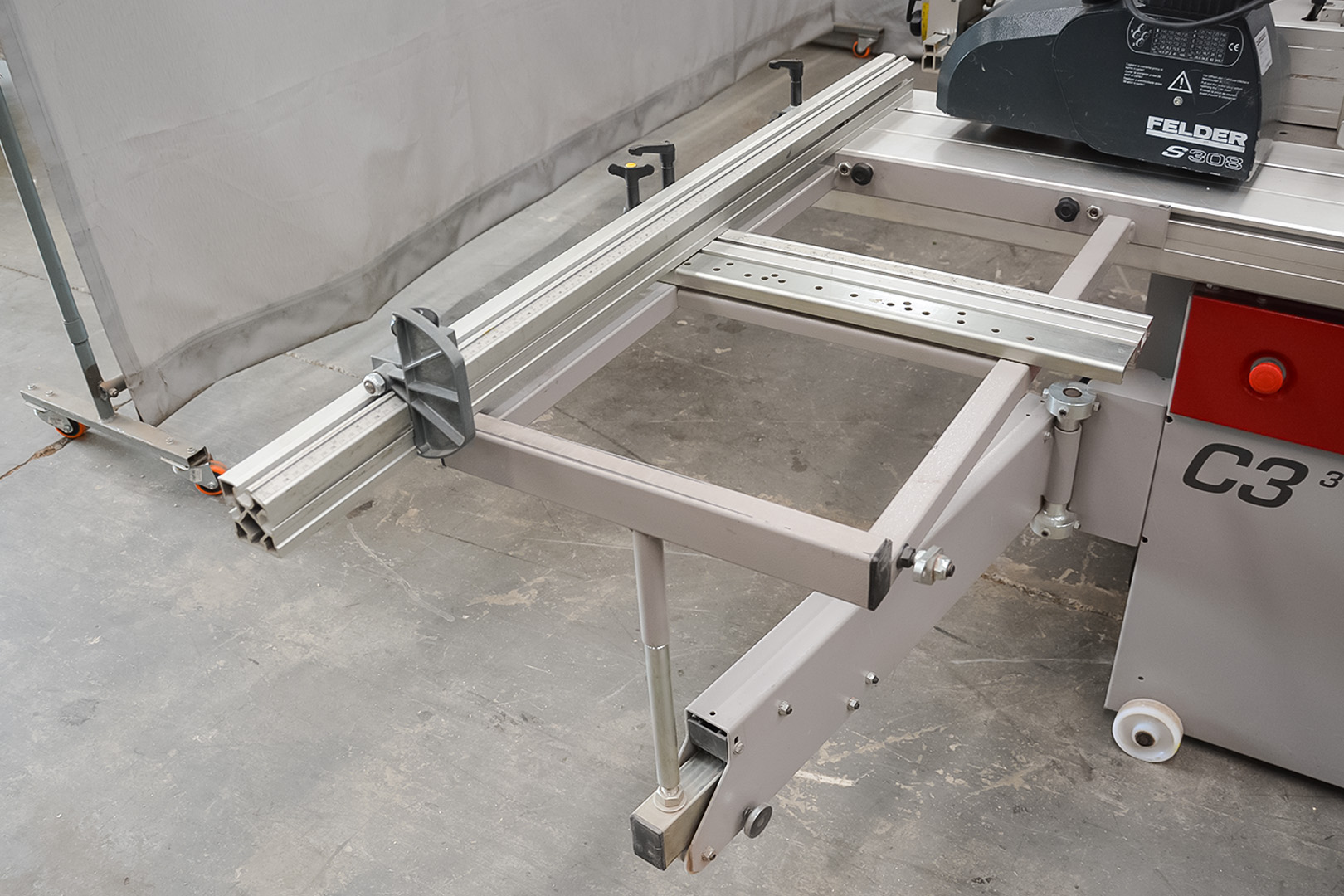

Outrigger Tables and Crosscut Fences
Outrigger table 1100
Precision mitre guide index system
Crosscut fence 51” (1300 mm) for outrigger 1100 (#160)

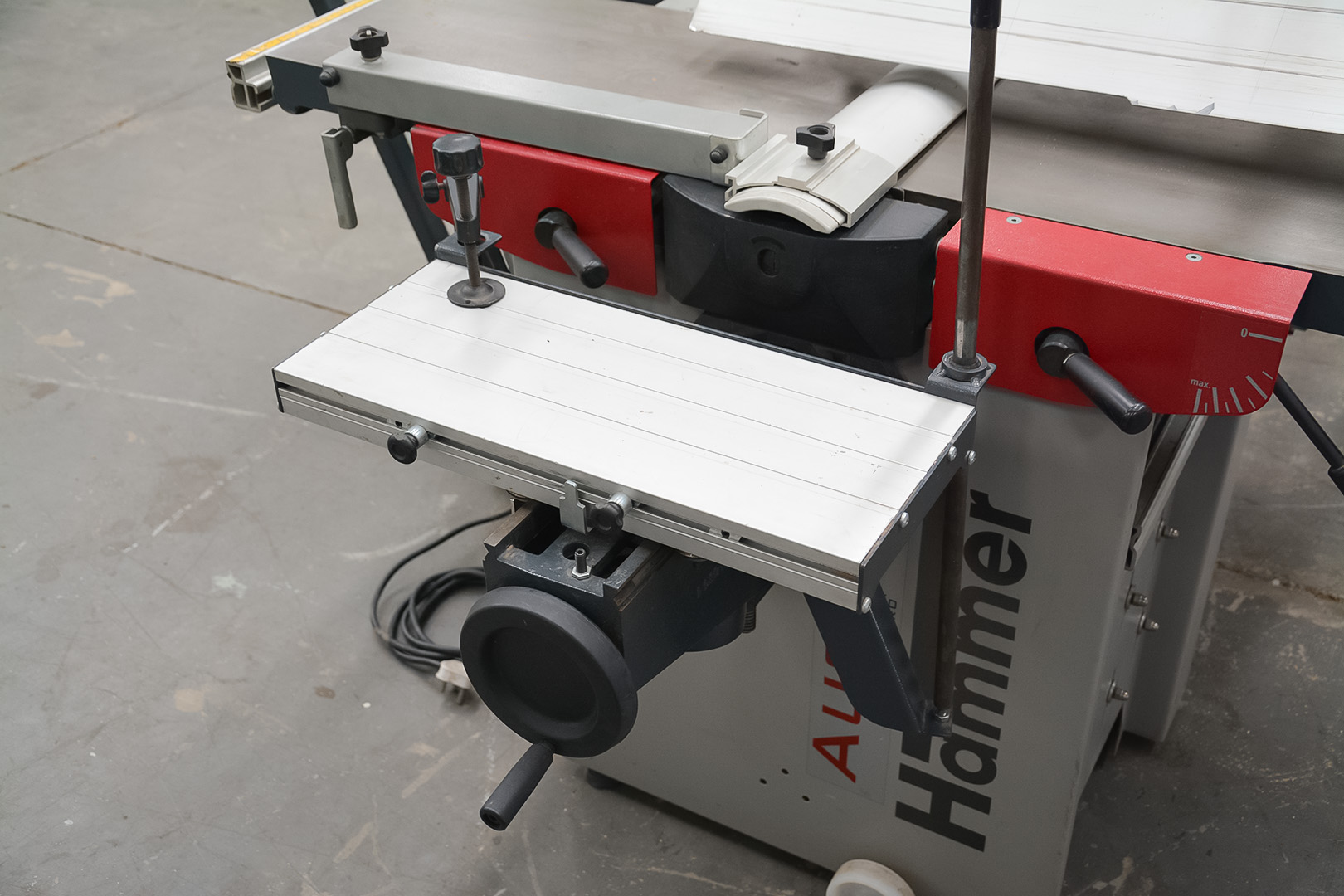

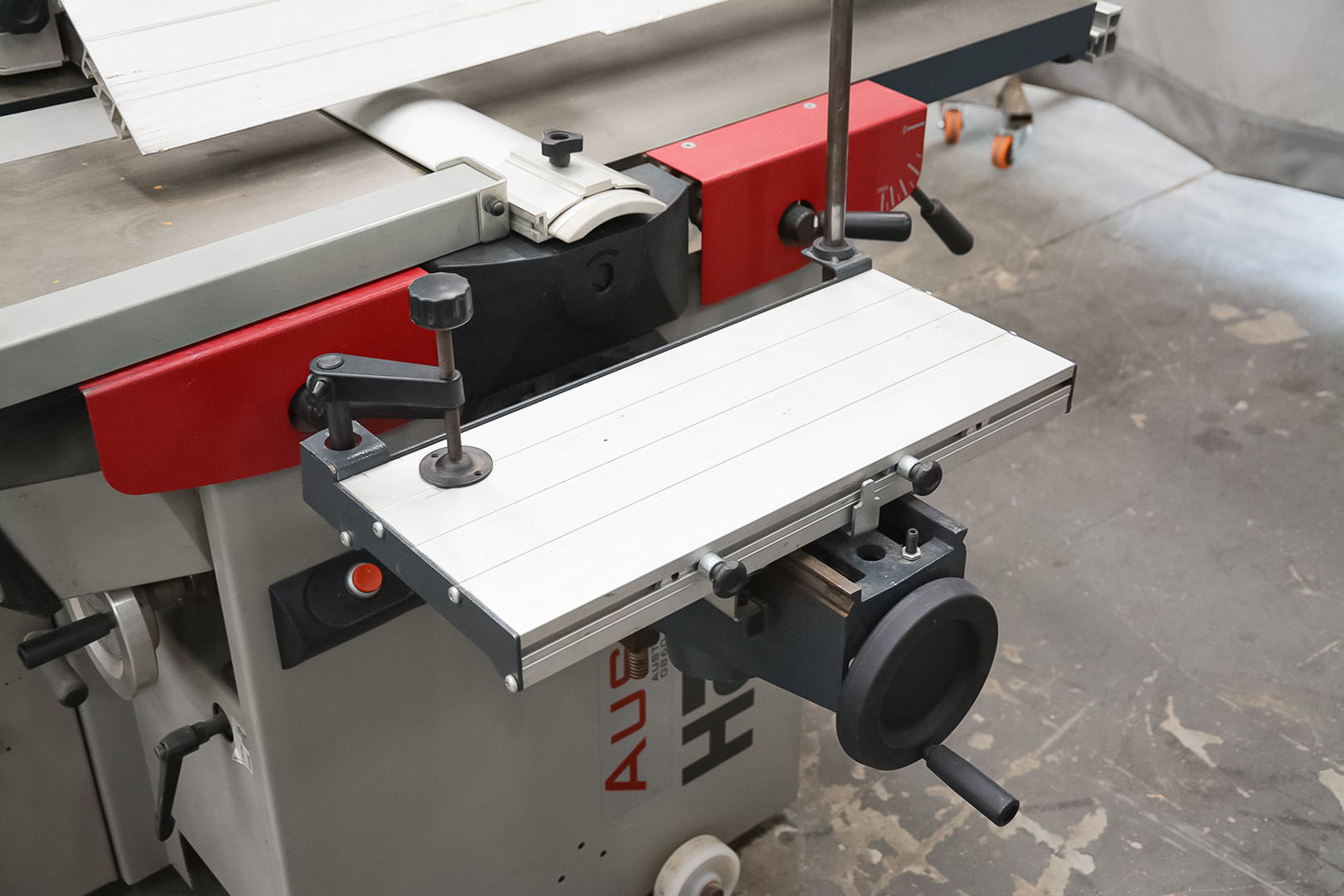

Mortising Unit
Mortising table
Mortising chuck 0–16 mm

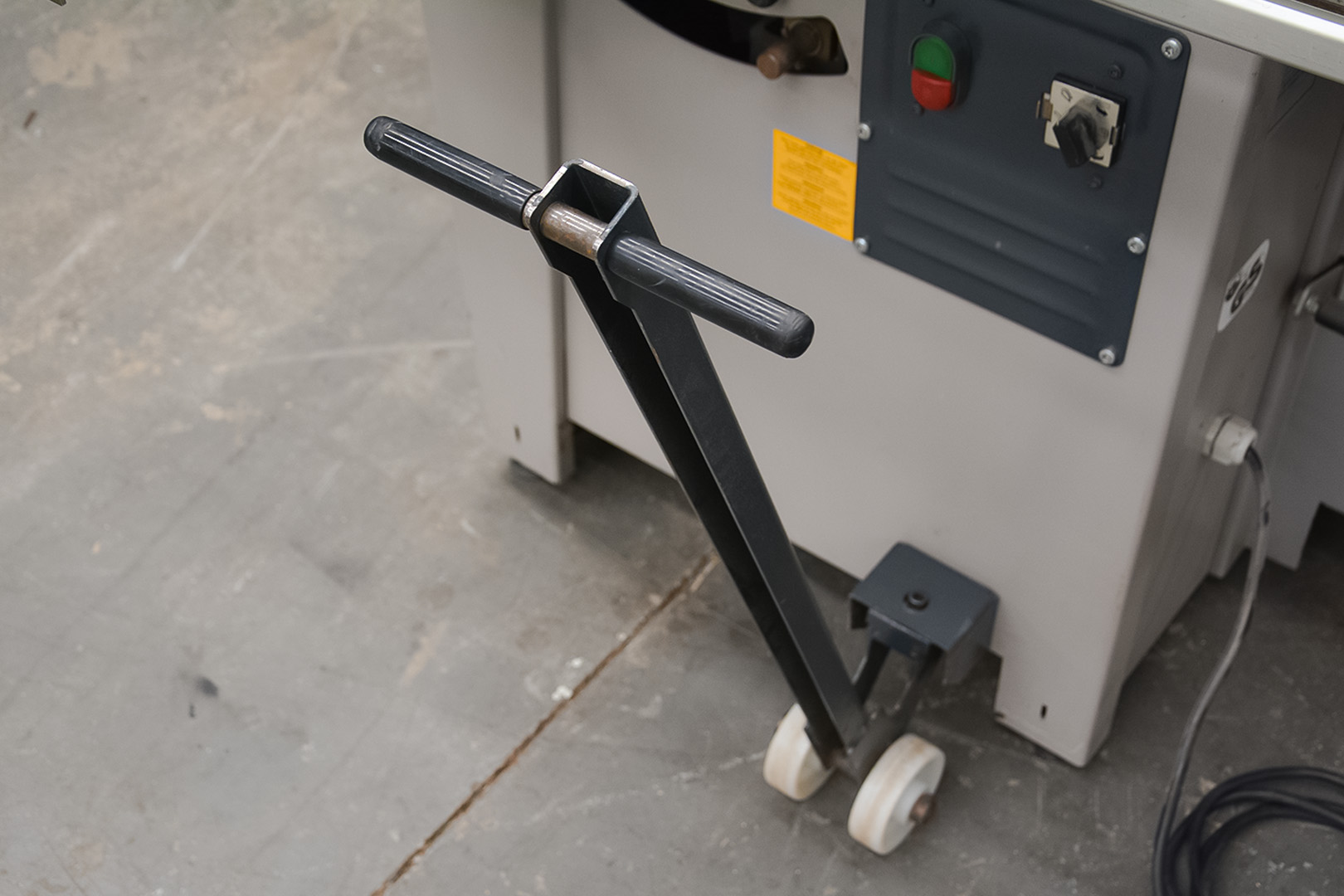

Rolling carriage without lifting bar
Weight – 610kg

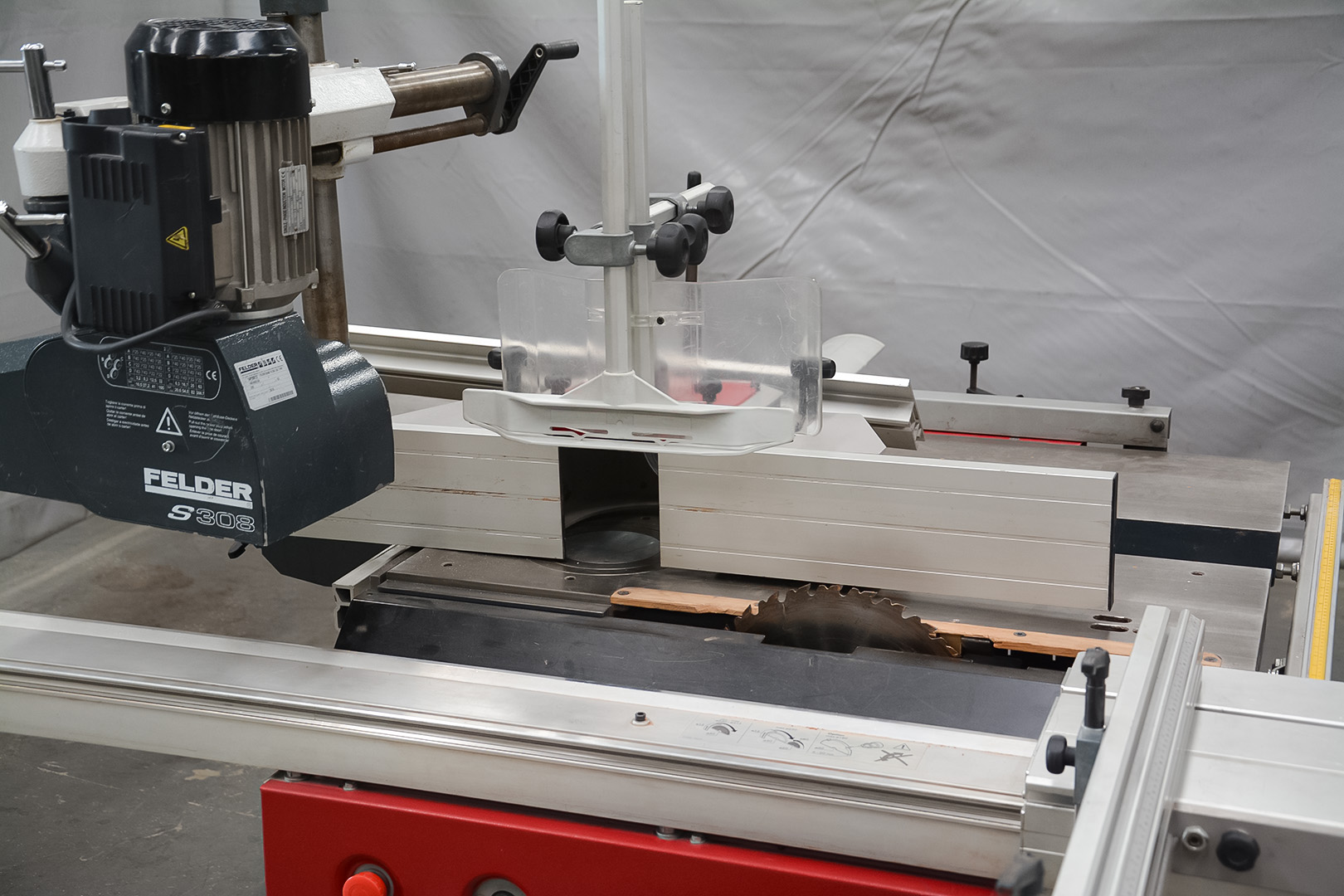

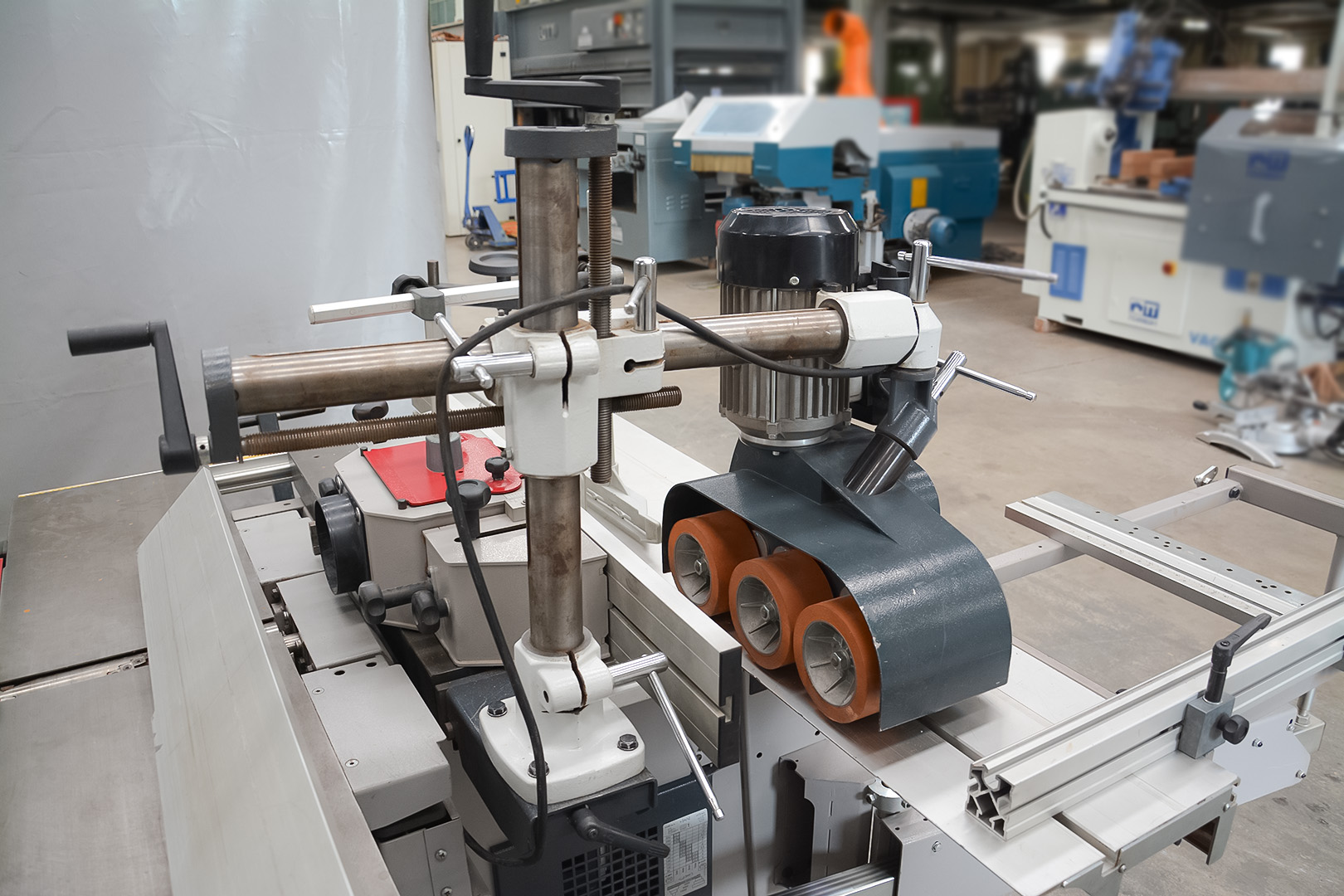

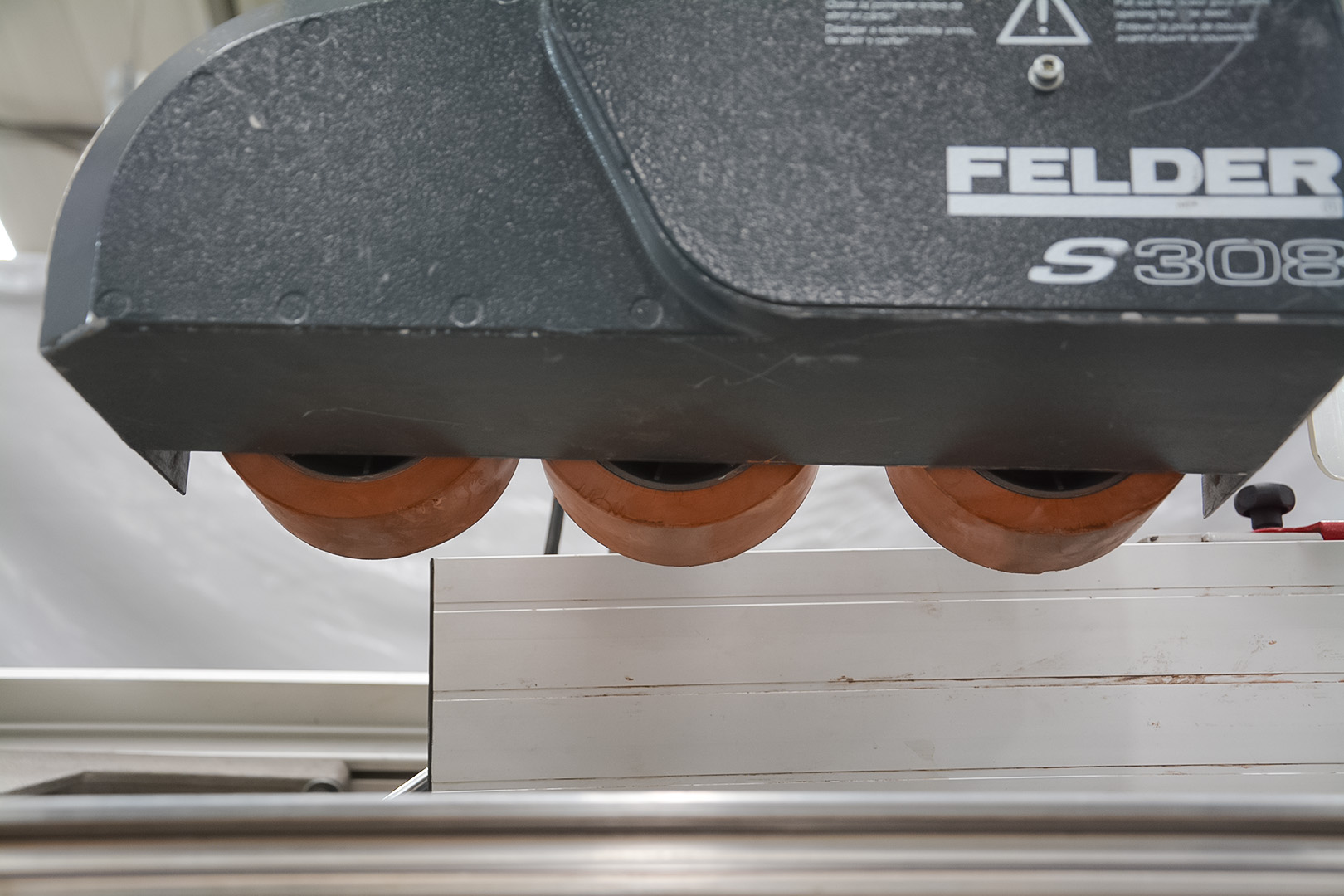

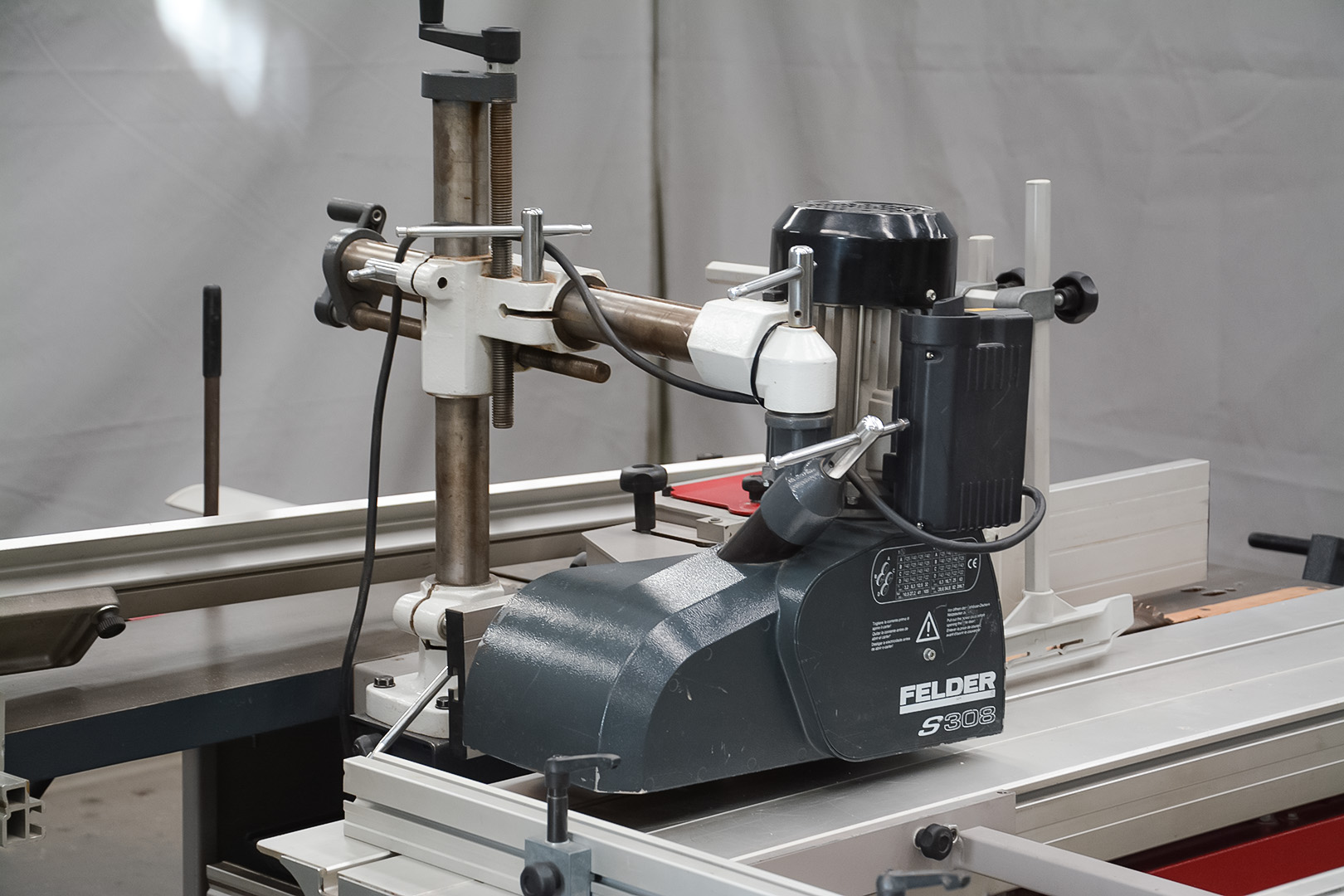

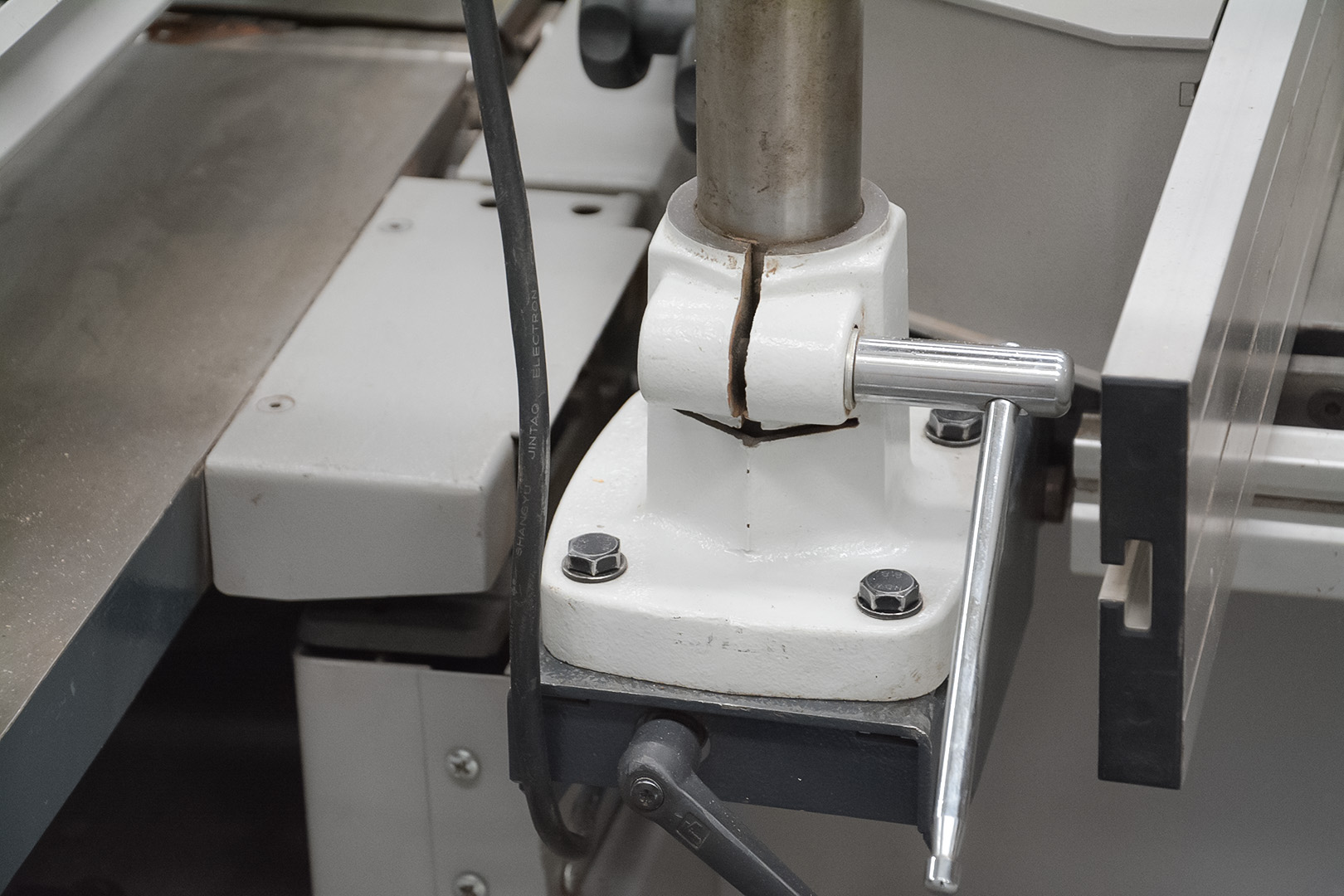

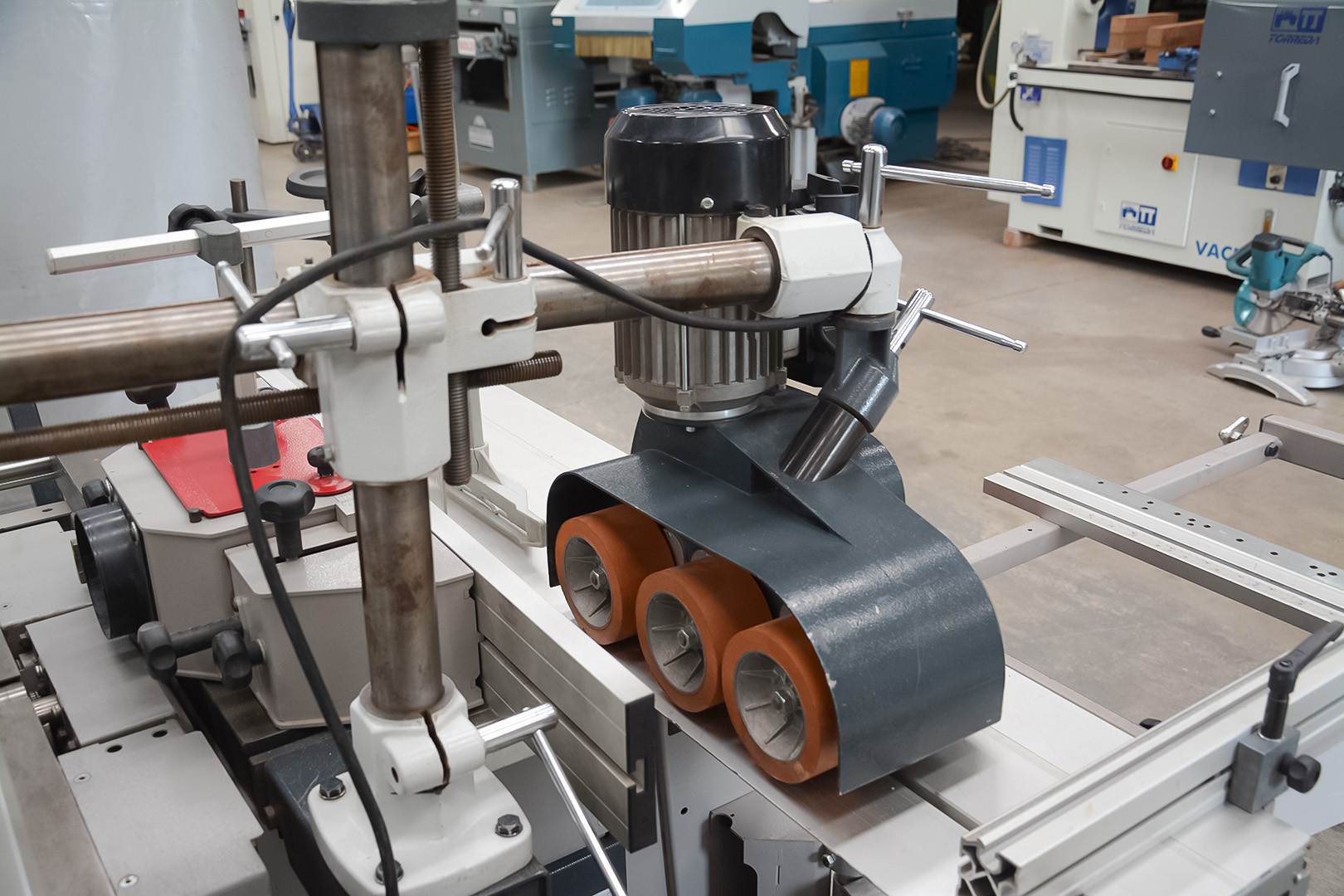

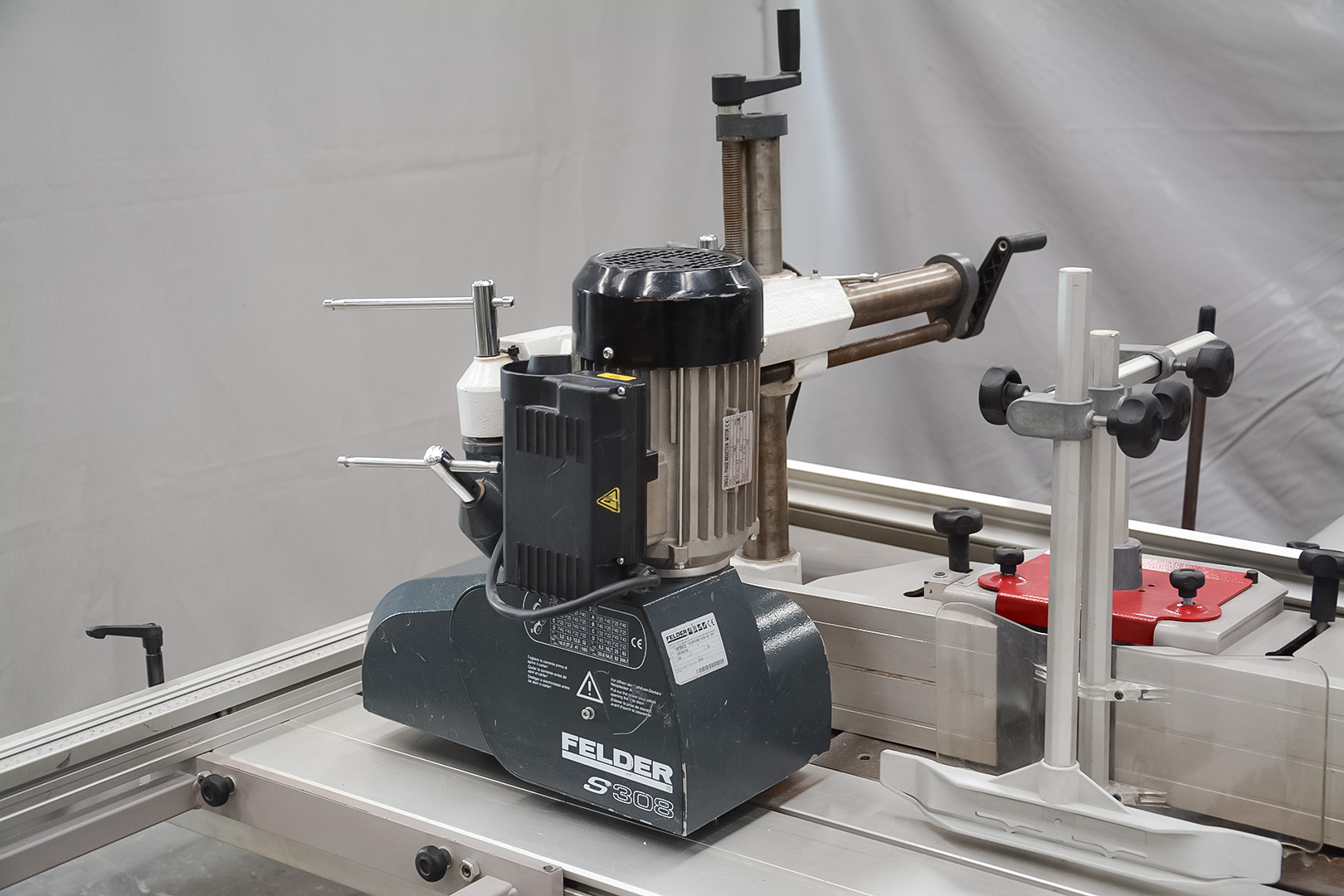

Power feeder

 YouTube Video Demo:

Excellent and Solid quality Band Saw available at GFP Machines.

✅ 3 Month quality warranty. T&C’s apply.
✅ Fully serviced and checked by GFP Machines!
✅ Technical services and training provided.
✅ Delivery assistance throughout Africa.
✅ Gys Potgieter’s promise: “If you are not happy with your machine, then bring it back within 7 days for a full refund”.

Contact us for pricing and inquiries.
