This item is SOLD. Please click here to view current stock.

Fully serviced and in excellent working condition
Working width 20-230 mm
Planing height 8-150 mm
Infeed table – 1700 mm
Spindle Ø 40 mm
Variable speed infinitely adjustable 4-32m / min

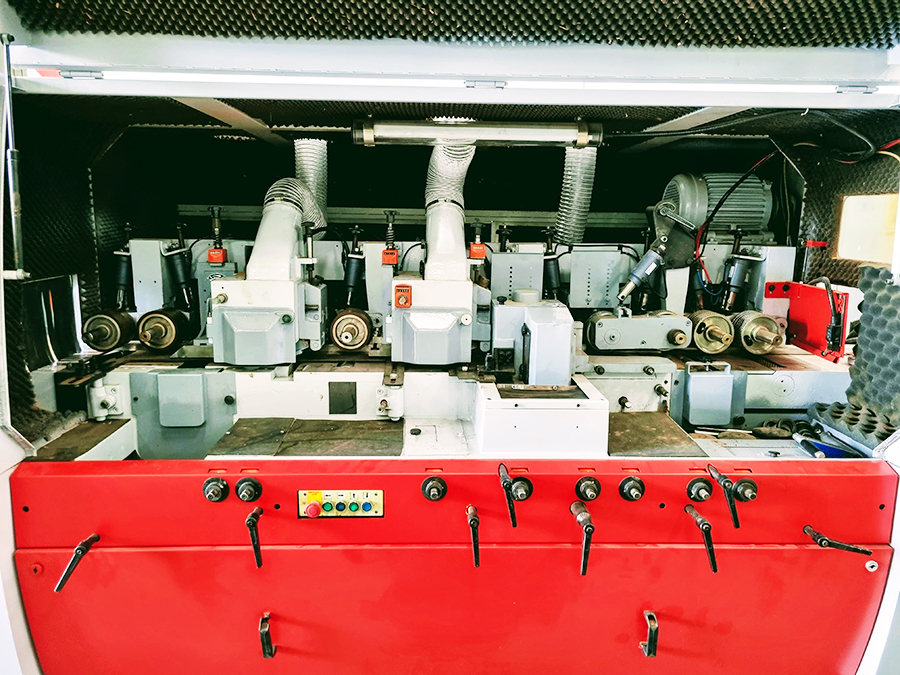

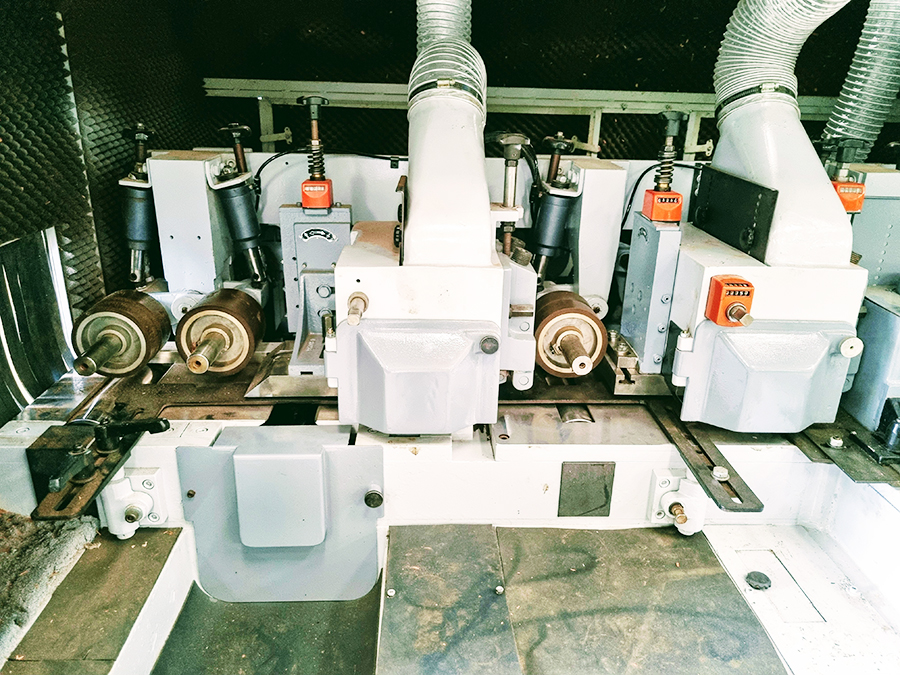

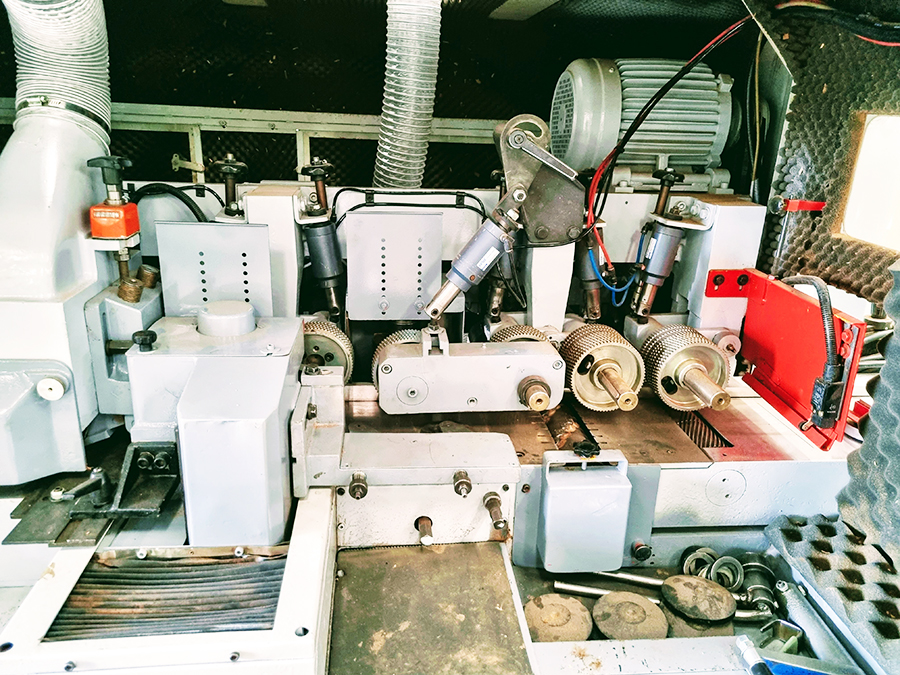

Spindles 6 pieces arranged: BOTTOM + RIGHT + LEFT + TOP + TOP + BOTTOM
1) spindle horizontal bottom – 7.5 kW 6000 RPM
2) Spindle vertical right – 7.5 KW 6000 RPM
3) The spindle vertical left – 7.5 kW 6000 RPM
4) The upper horizontal spindle – 11 kW 6000 RPM
5) spindle horizontal top – 11 kW 6000 RPM
6) spindle horizontal bottom – 11 kW 6000 RPM
Engine thrust power of 4.5 kW
Adjustment motor of 1.1 kW
Automatic central lubrication
Three pinch rolls (friction rollers) in the lower table to improve feeding efficiency
Six upper steel infeed rollers
Three rubber outfeed rollers
Pneumatic clamps feed roller
Drive shafts Cardan
Minimum length of work piece – 600 mm
