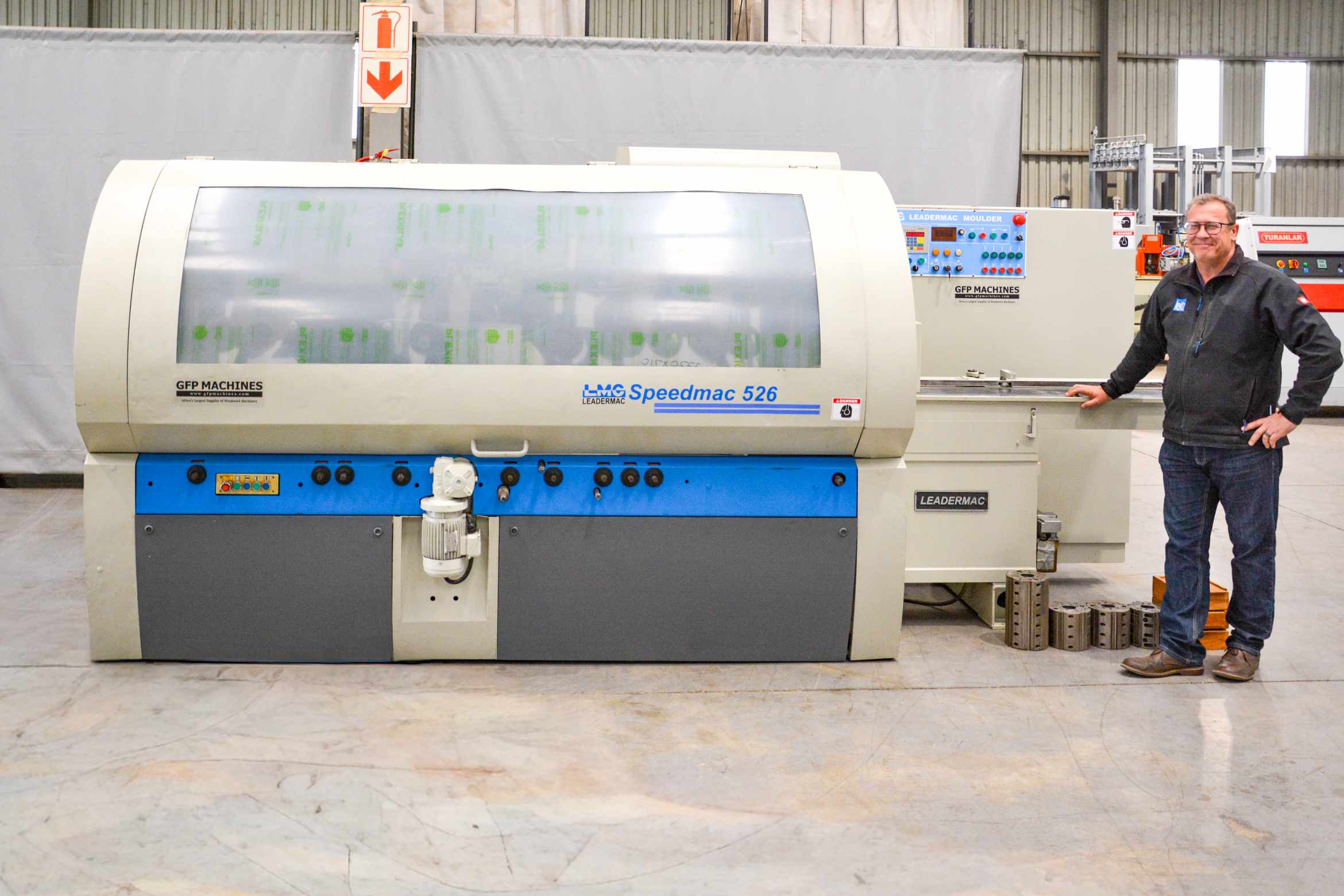

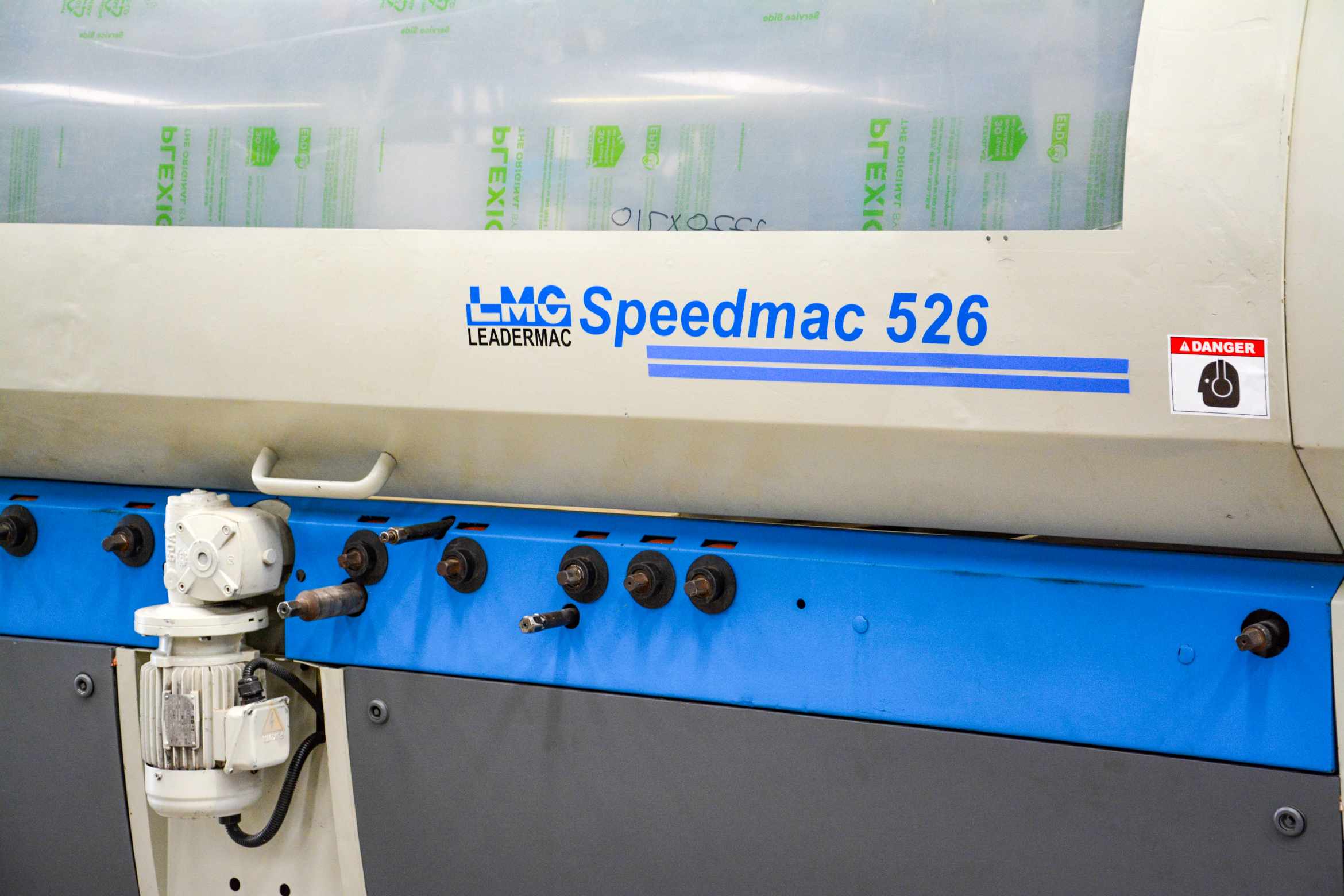

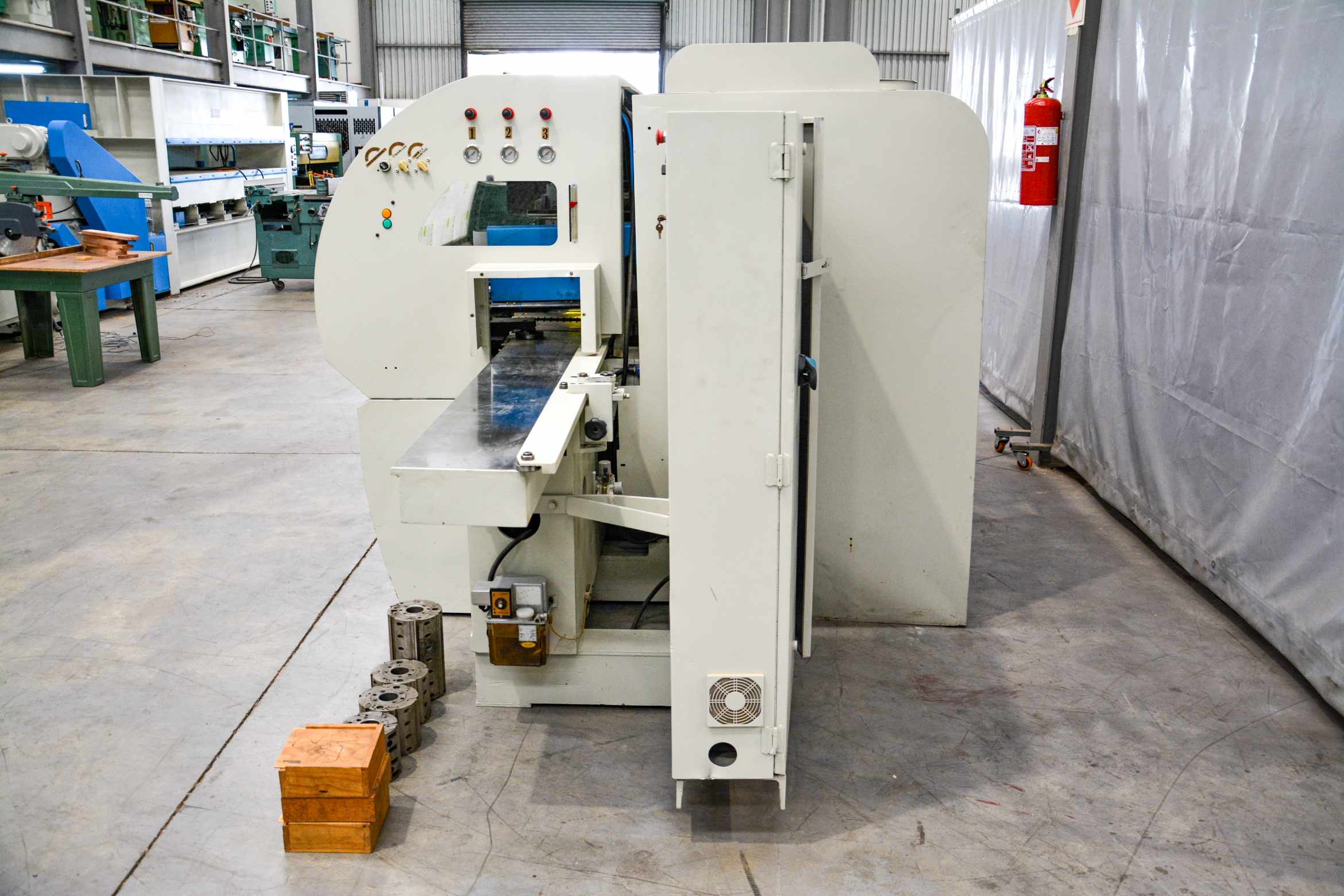

Leadermac Speedmac 526 5-Spindle Heavy-Duty High-Speed Planer Moulder with Hydro Tooling – 70kW 380V (MO061U)

Product information



  • Power Supply: 380V | 50Hz | 3-Phase

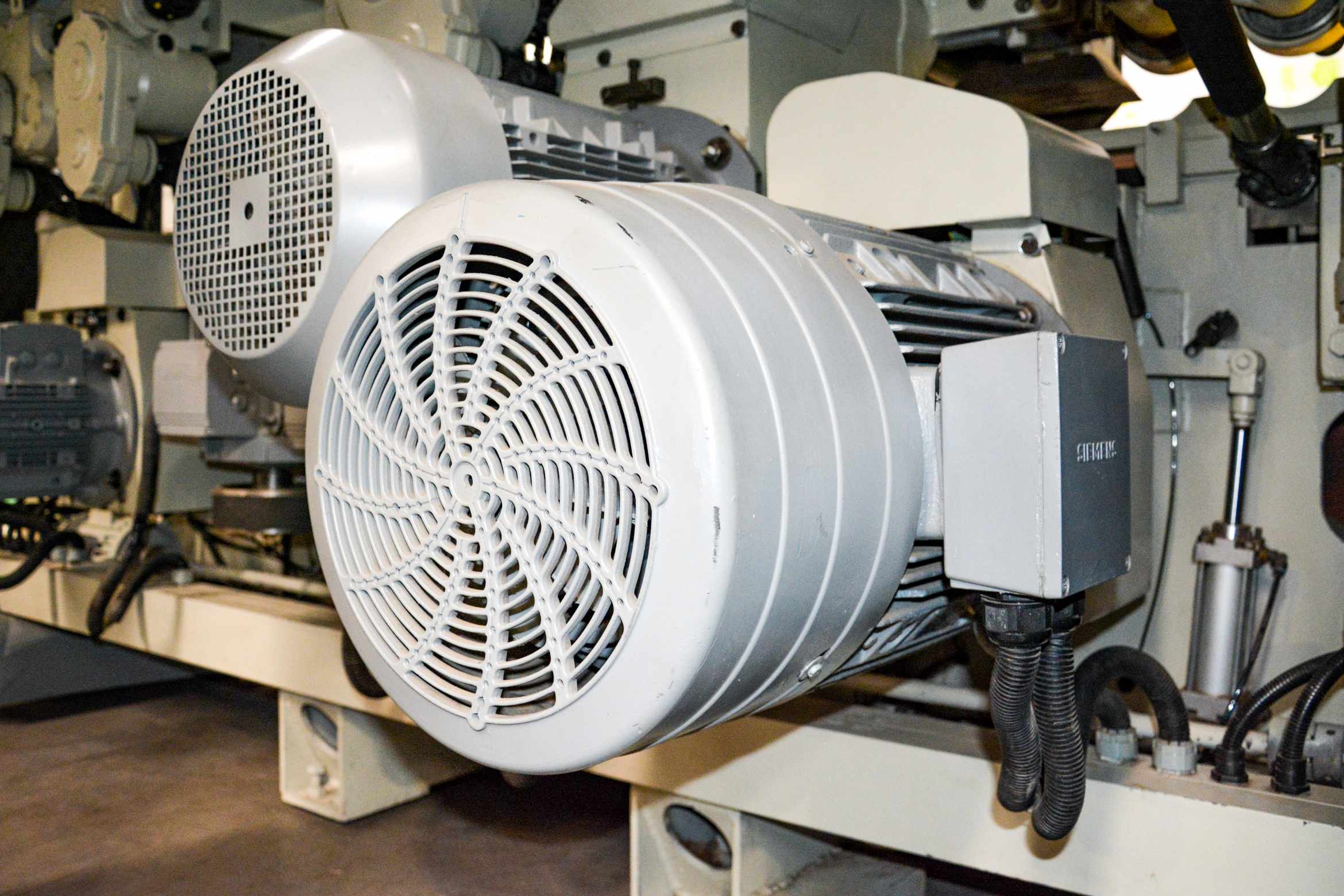

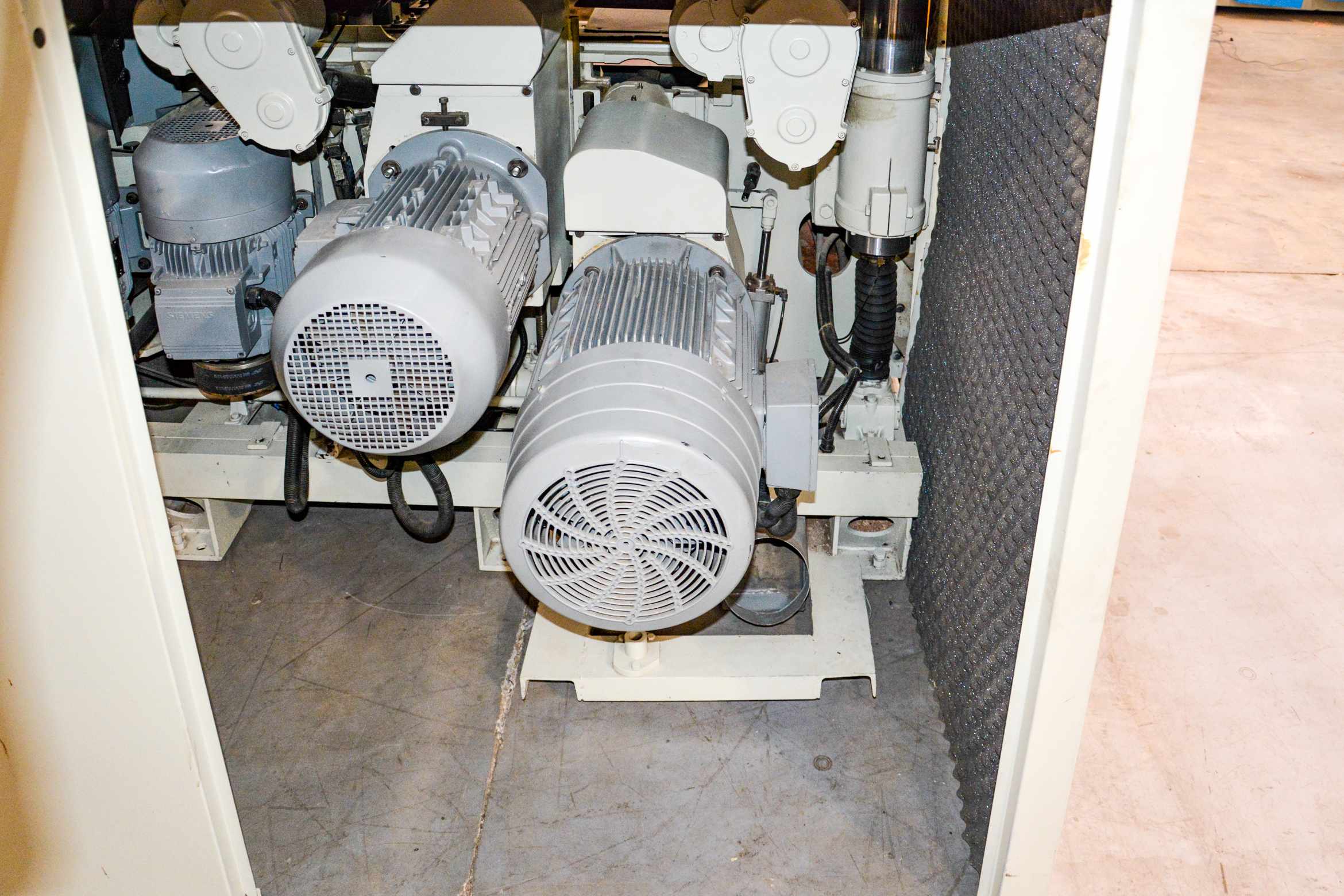

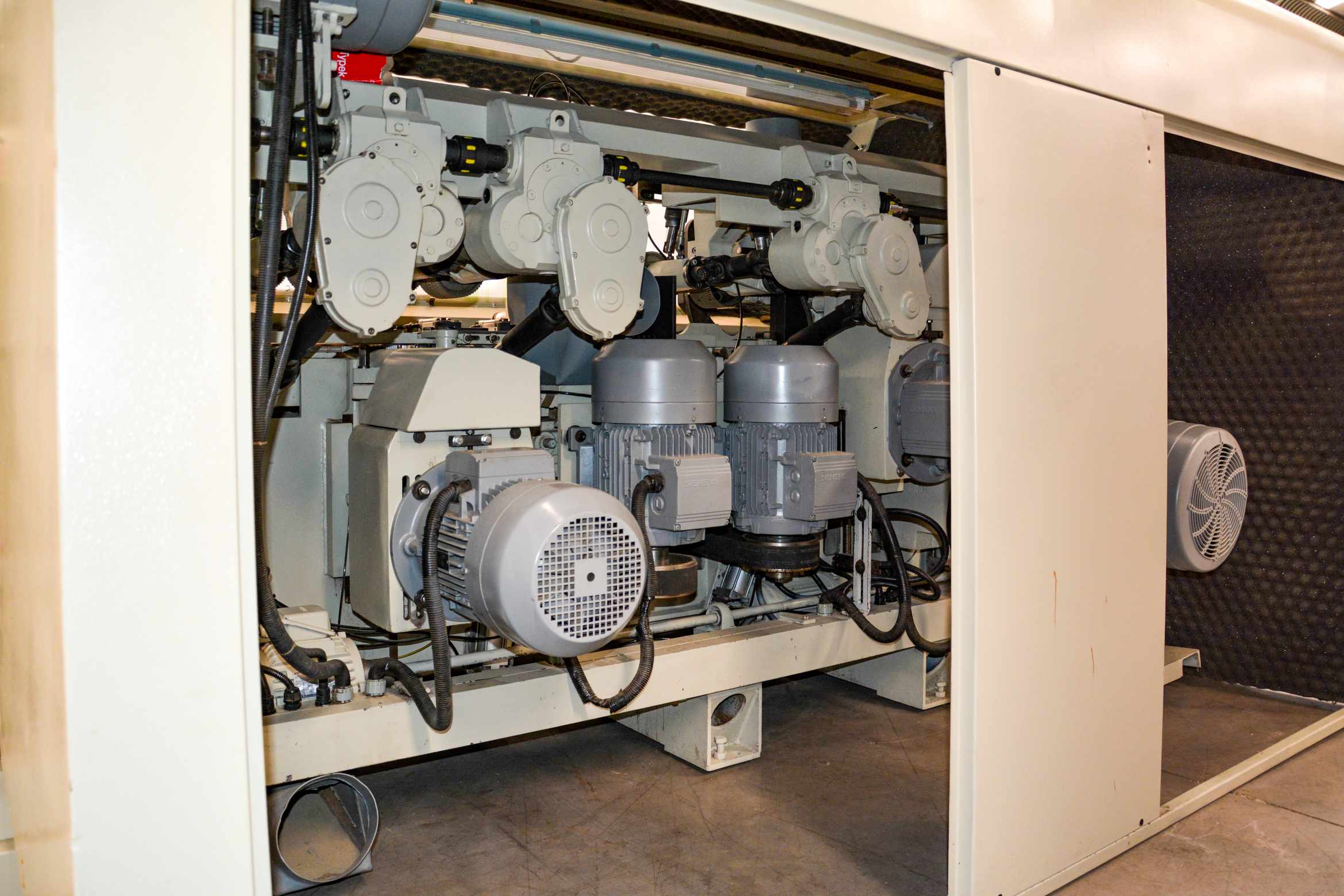

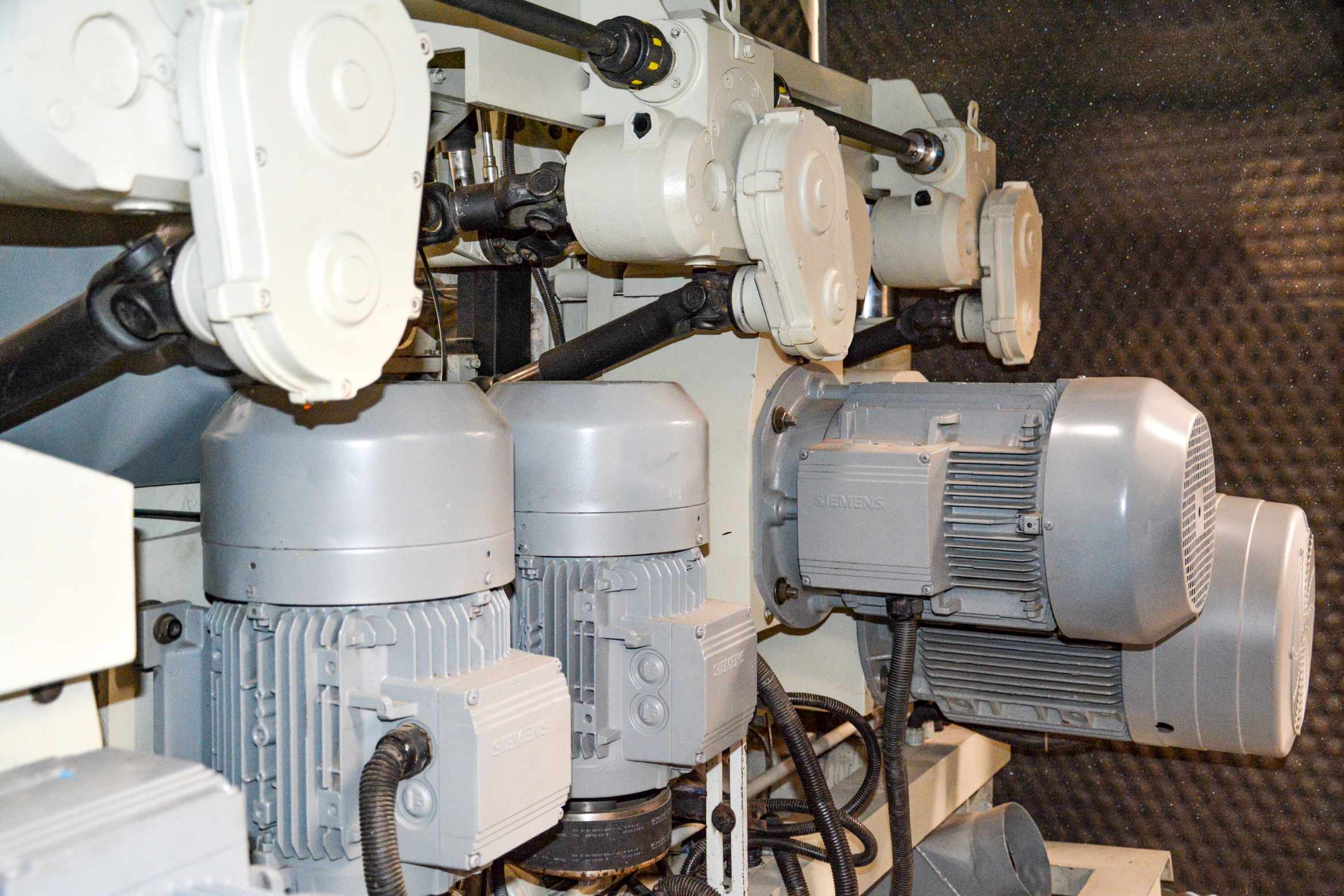

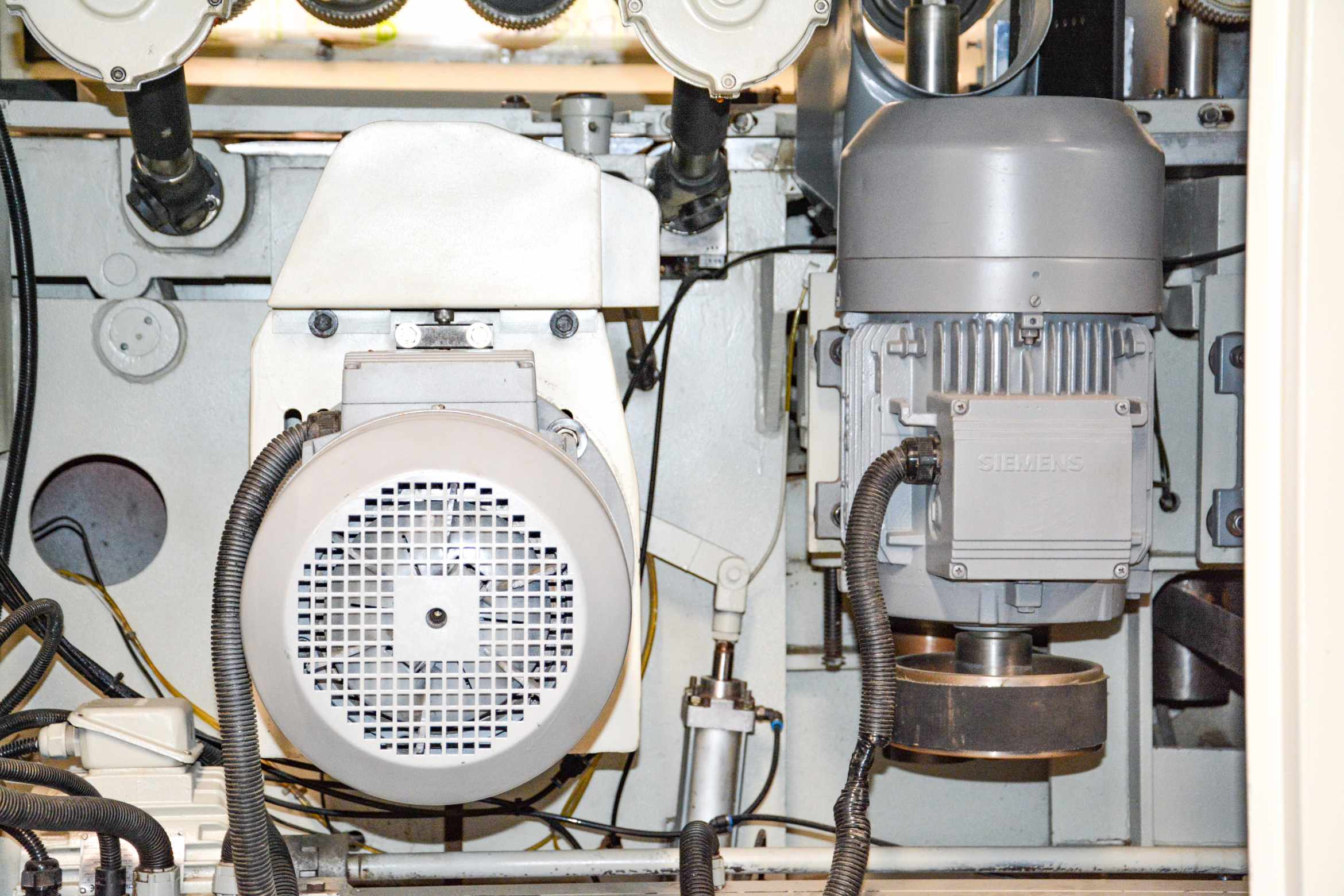

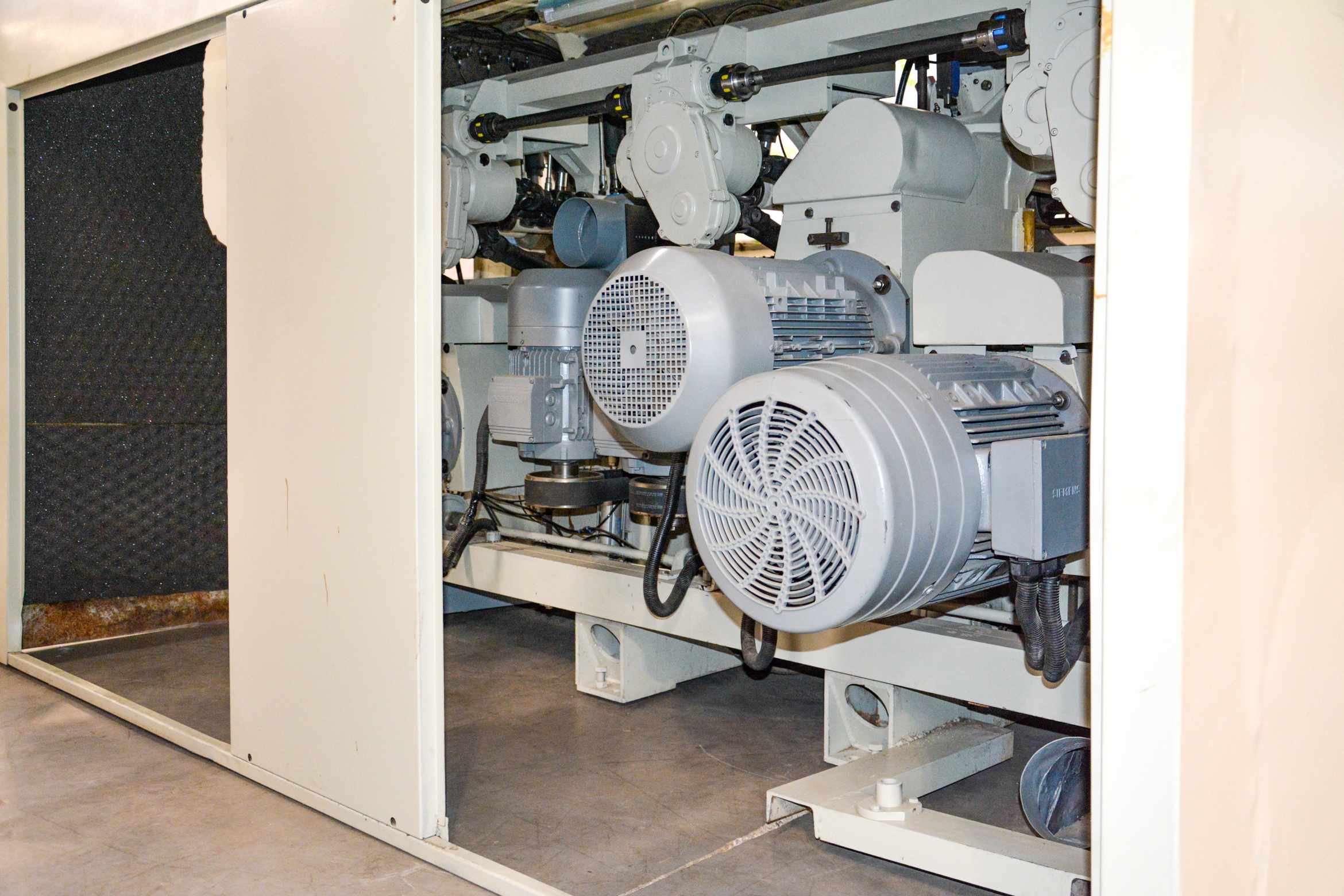

  • Spindle Motor Configuration (5 Spindles):
    • Spindle 1 (Bottom): 11 kW

    • Spindle 2 (Right): 11 kW

    • Spindle 3 (Left): 11 kW

    • Spindle 4 (Top): 15 kW

    • Spindle 5 (Bottom / Final Head): 22 kW

  • Total Spindle Drive Power: 70 kW
  • Max working width of 260mm
  • Max working thickness 150mm

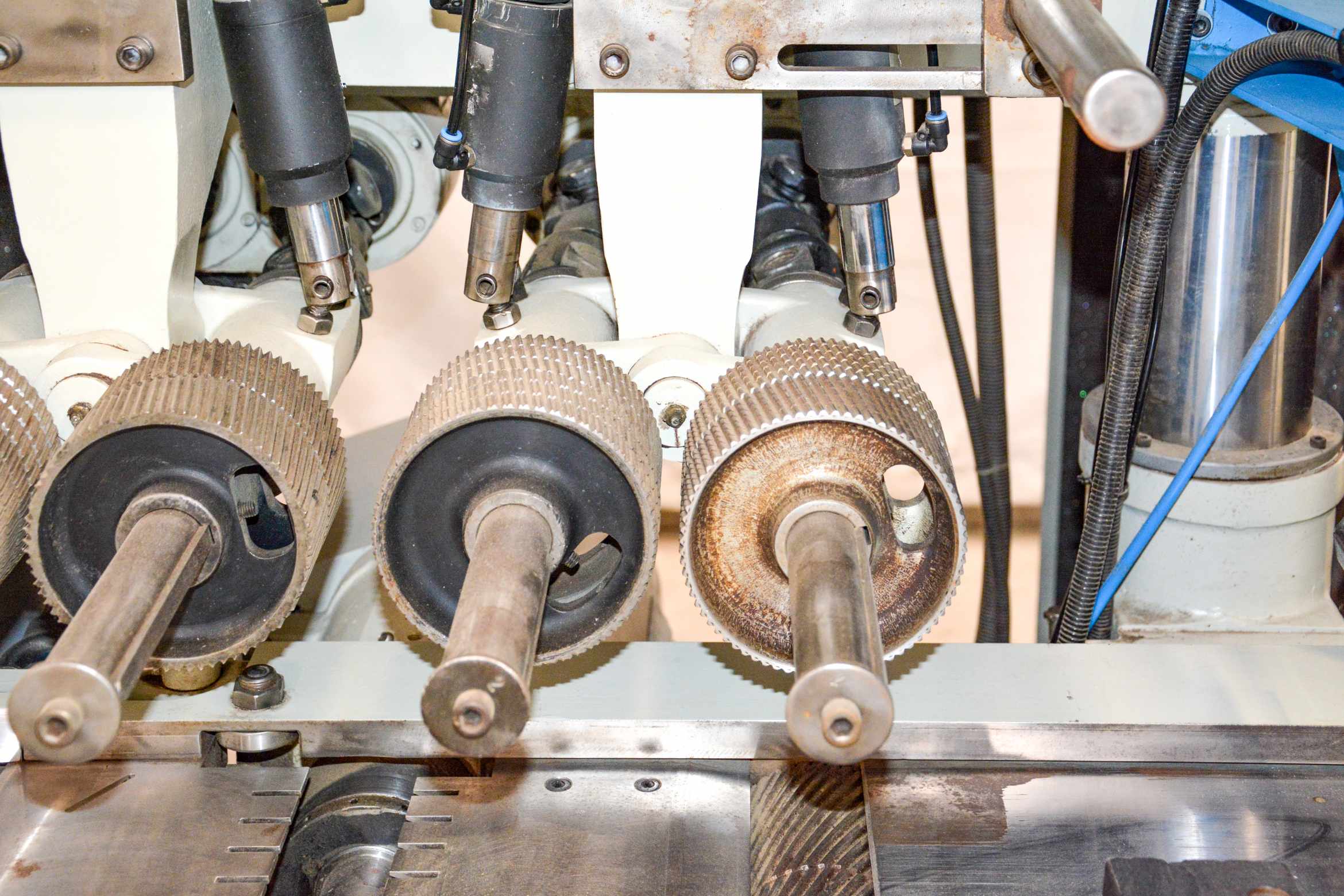

  • Fast feed speeds up to 60m per minute

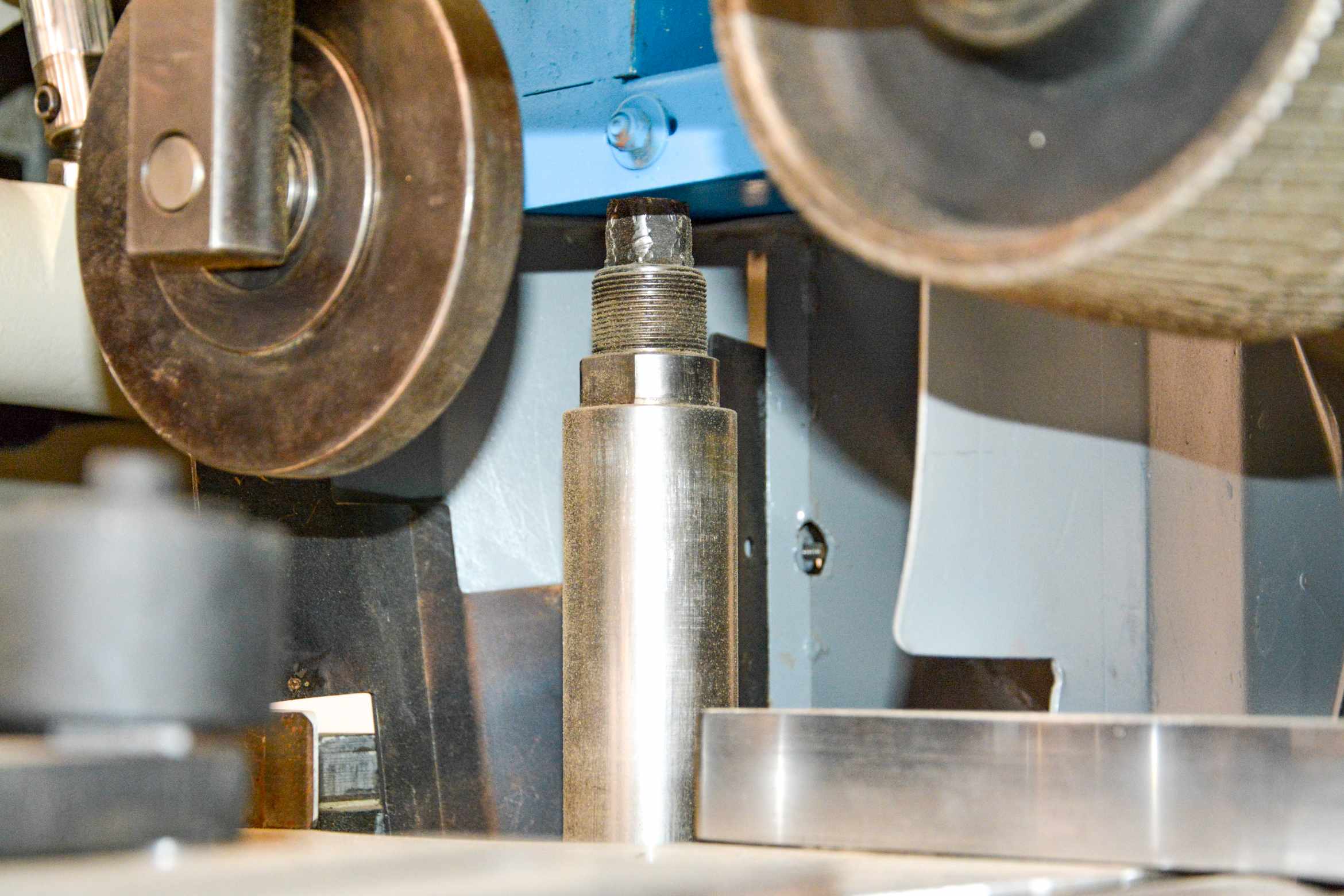

    Spindle Shaft Diameter: 50 mm (Hydro Spindles)

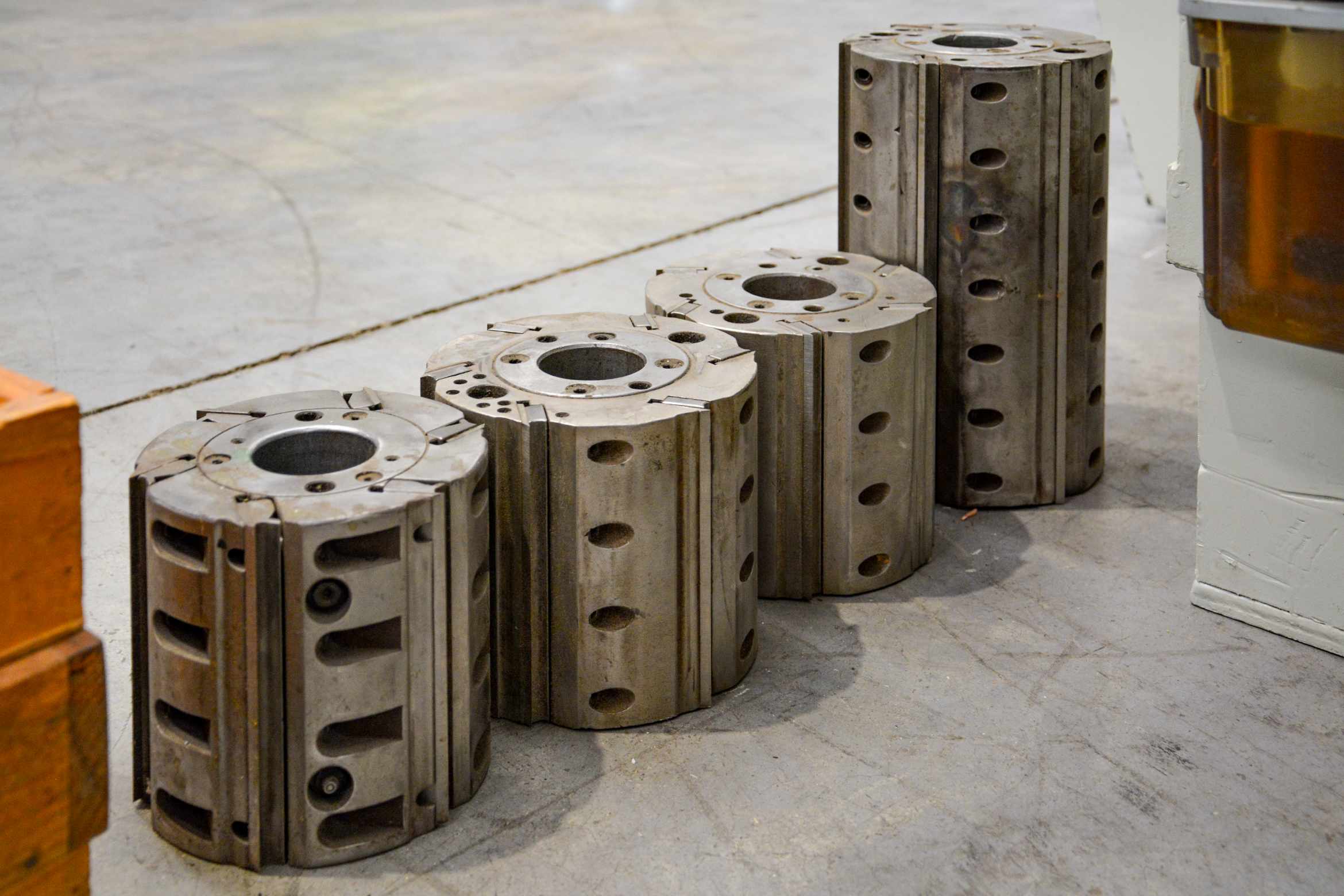

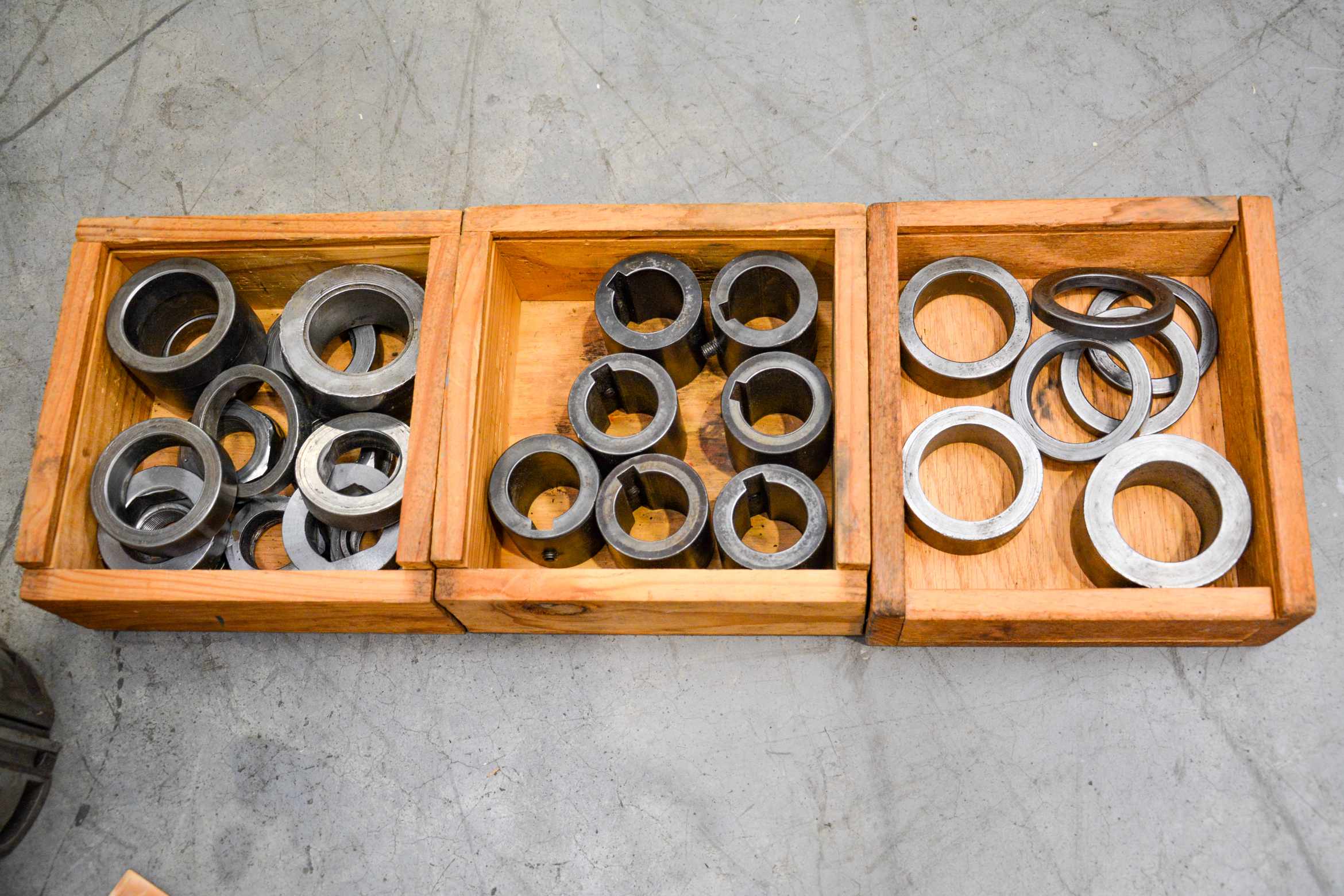

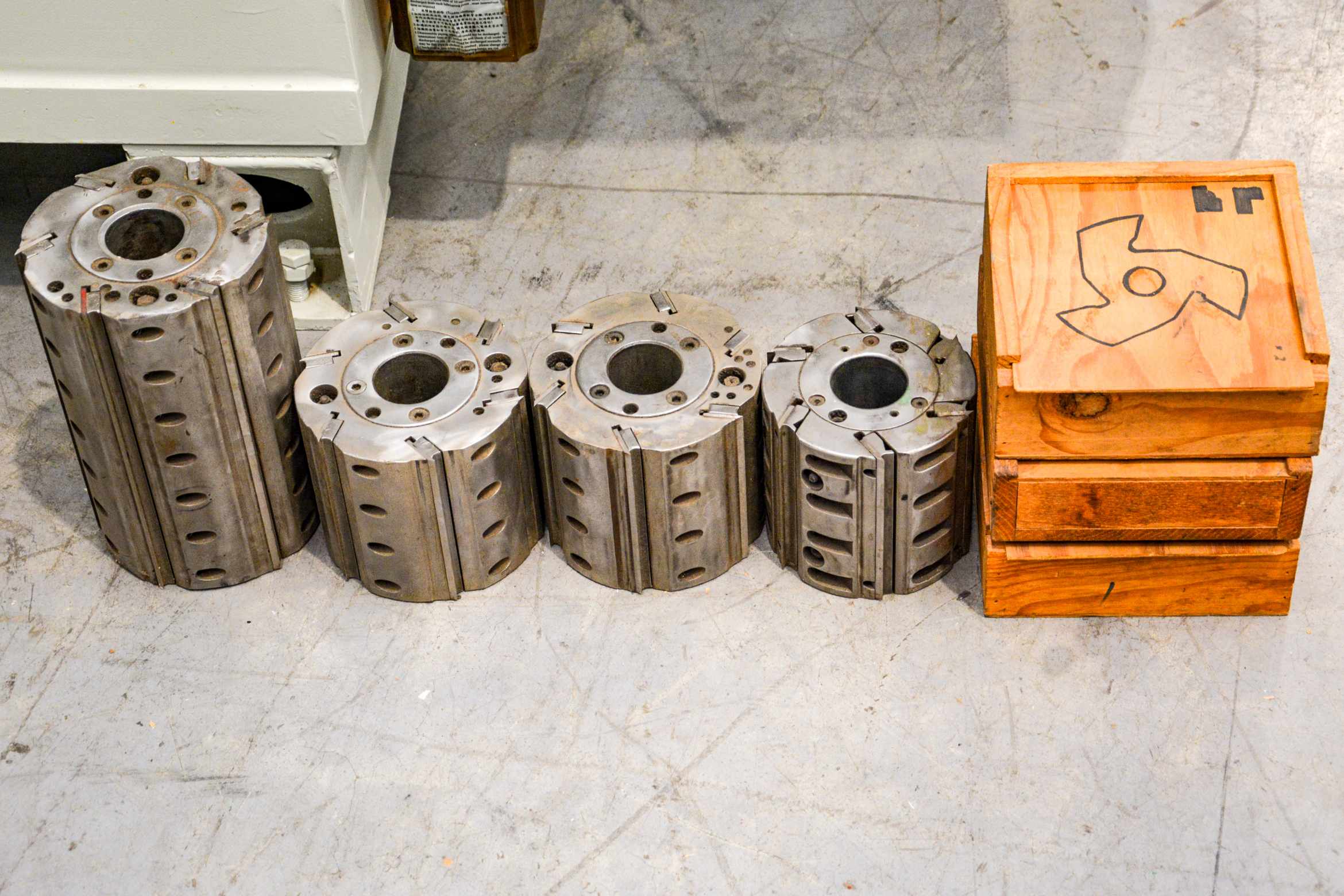

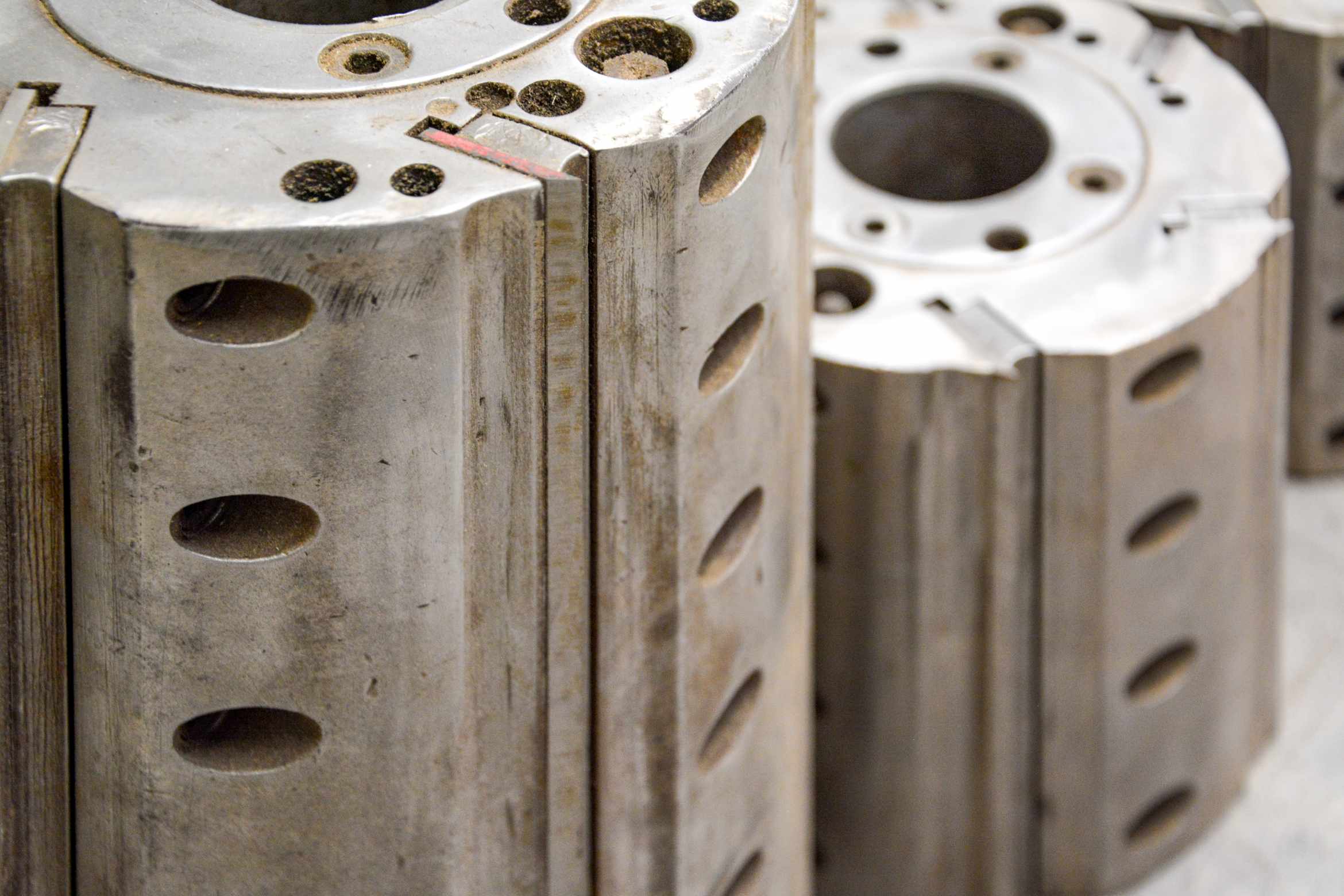

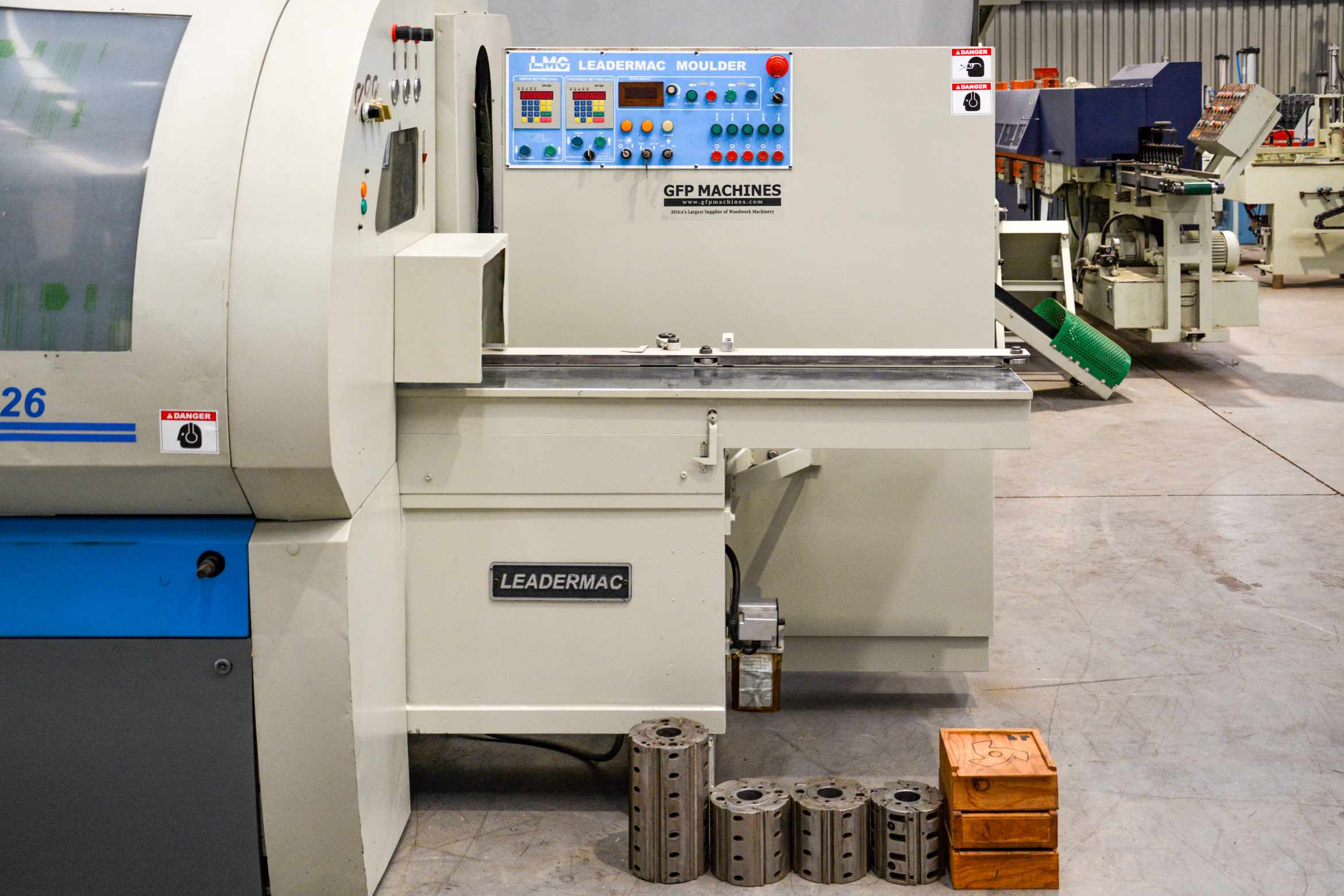

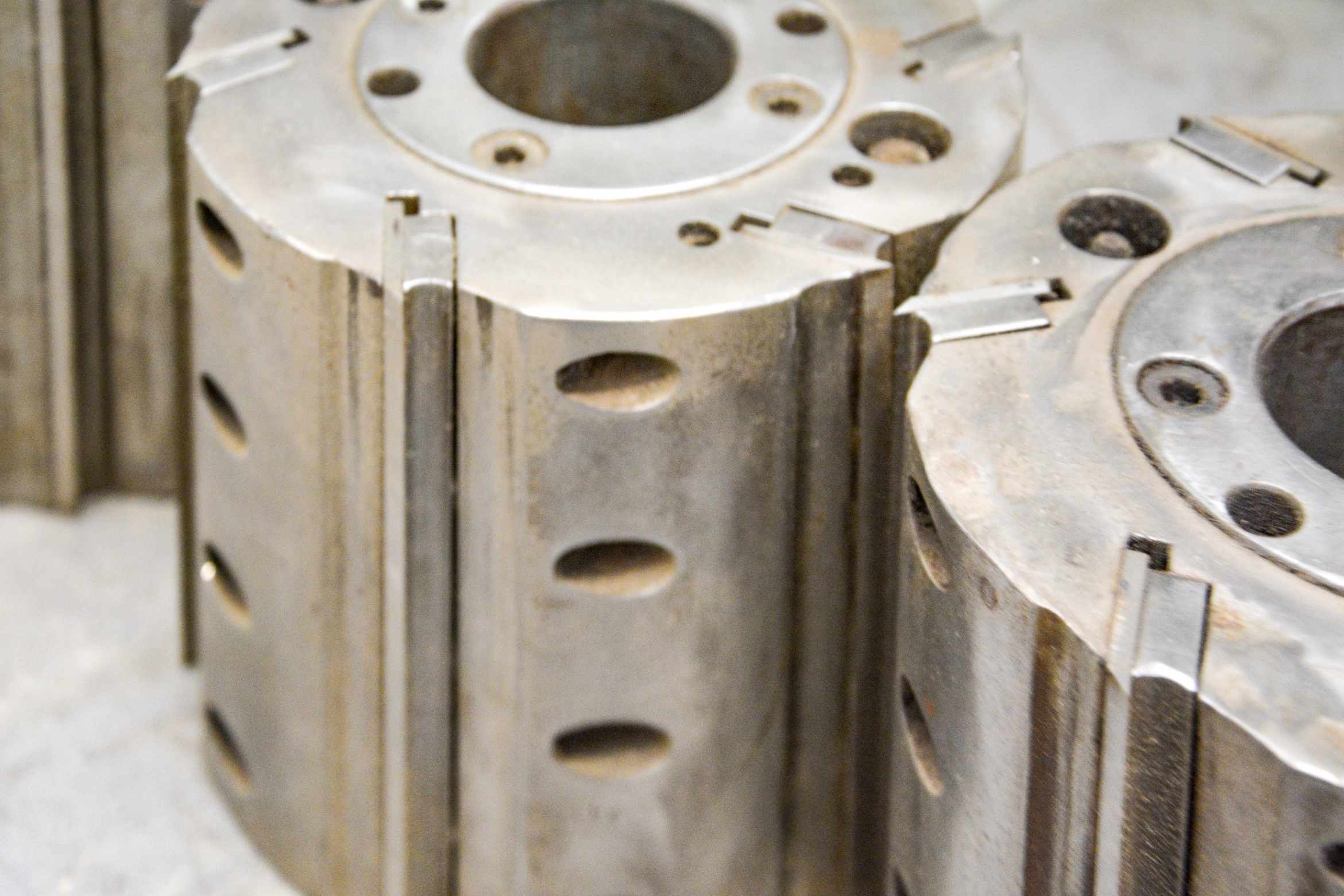

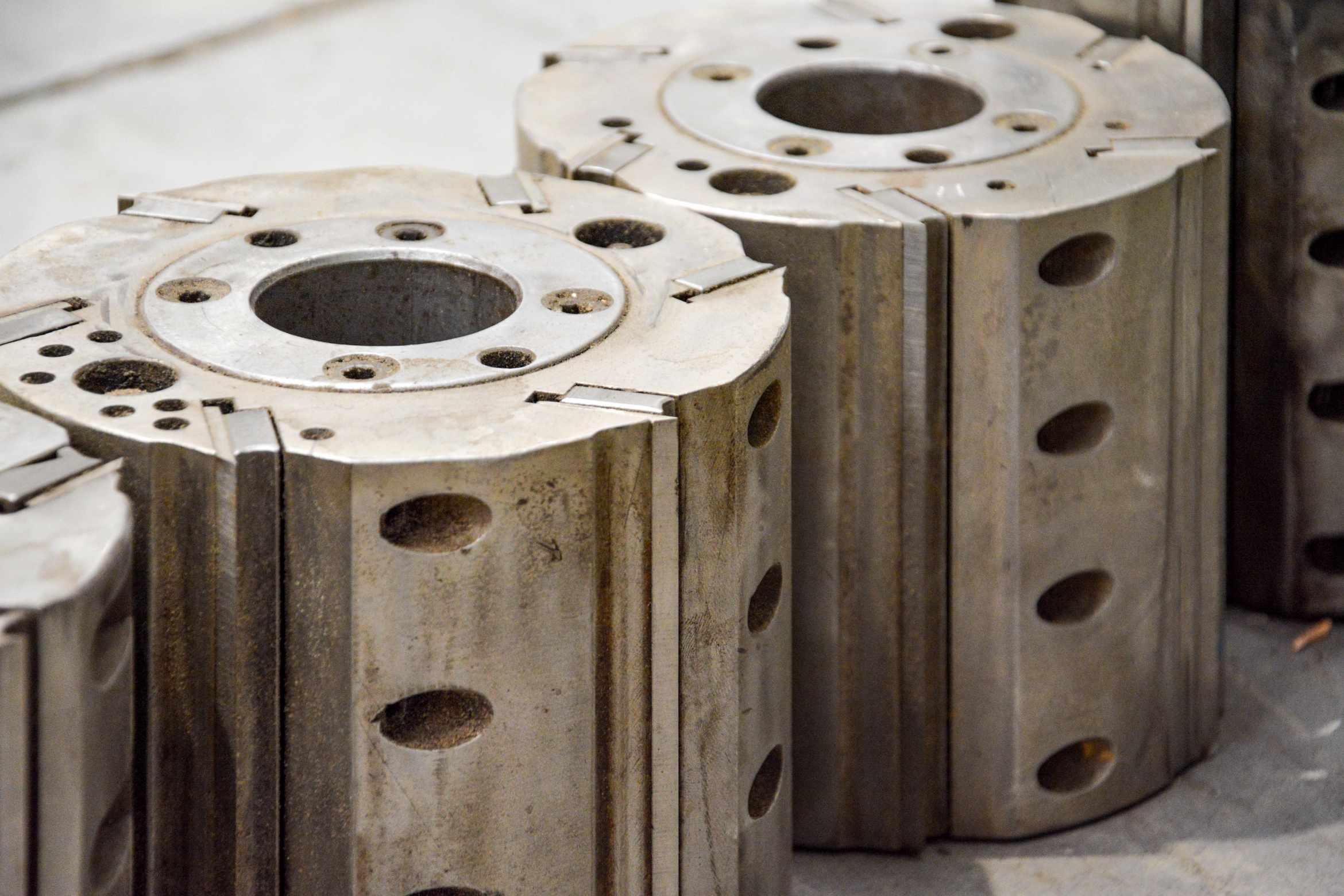

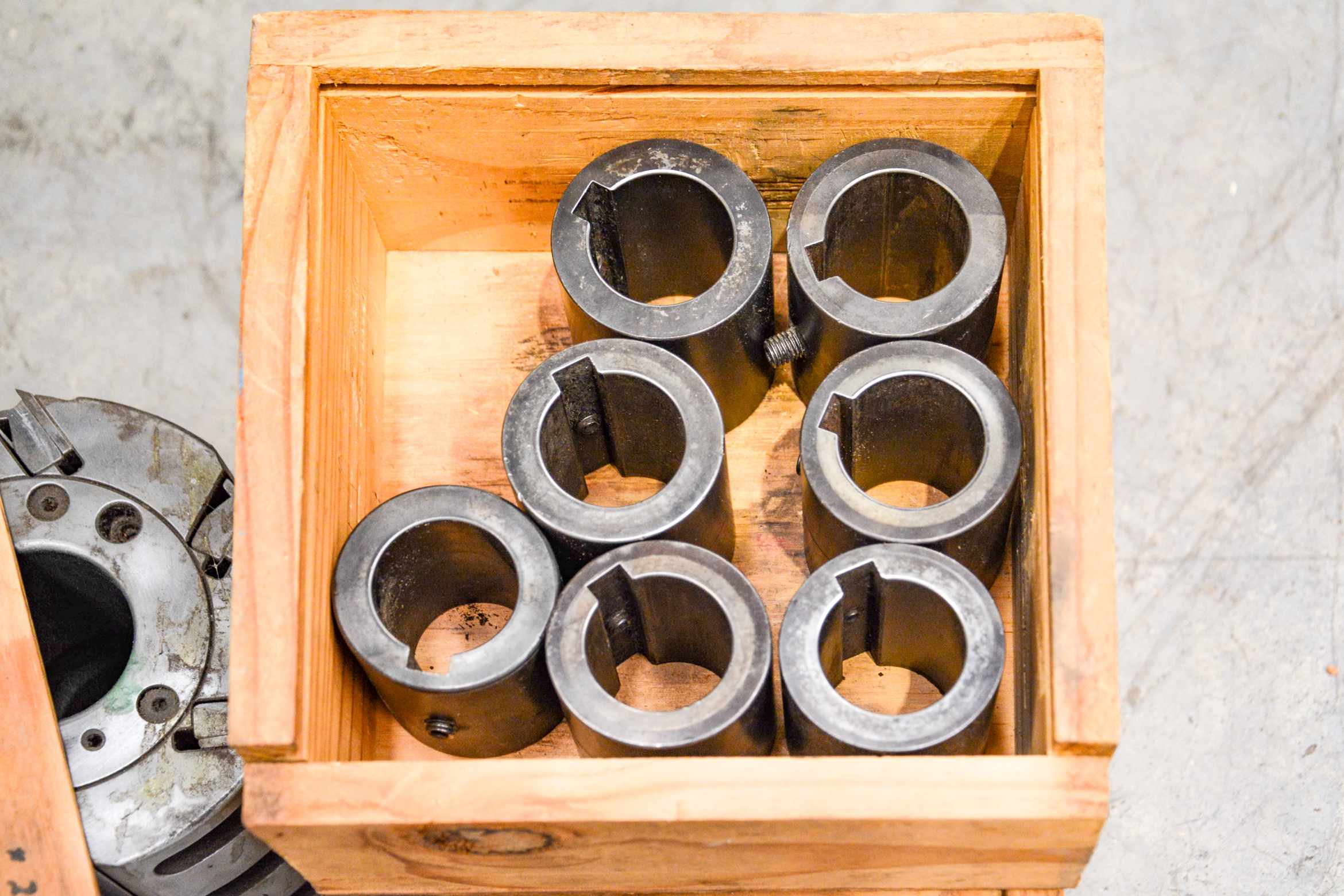

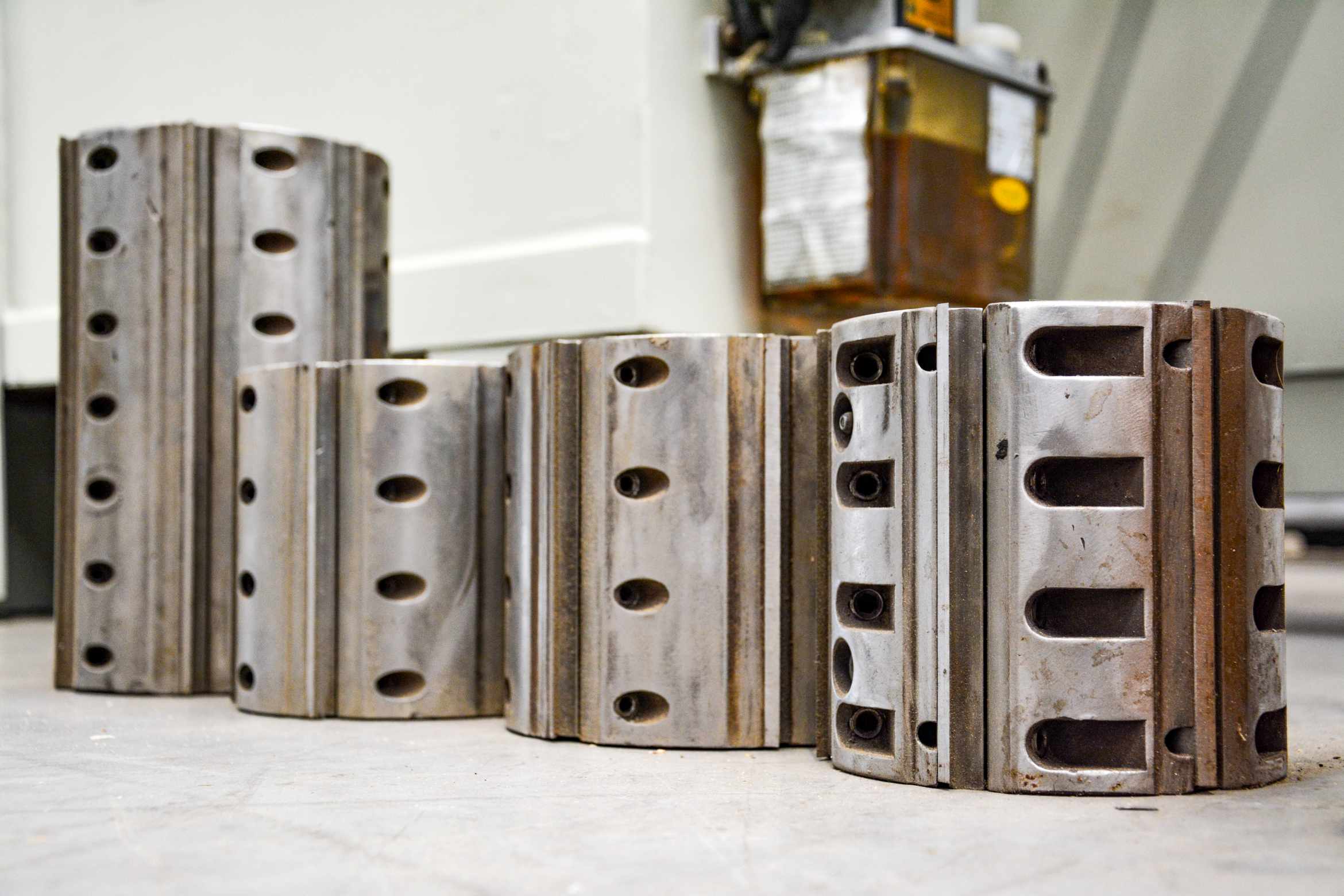

  • Tooling Included: Set of 50mm hydro-lock cutter blocks

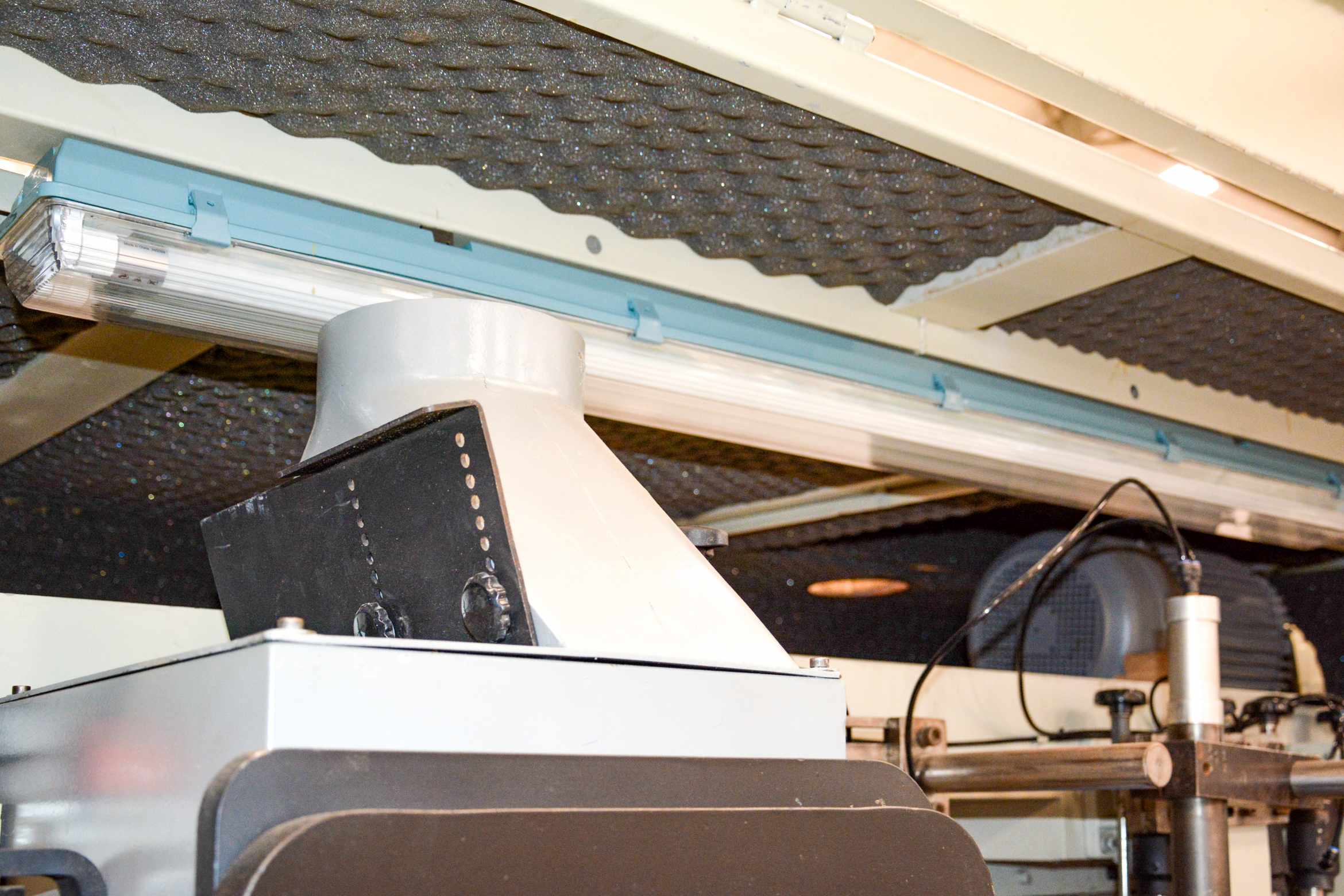

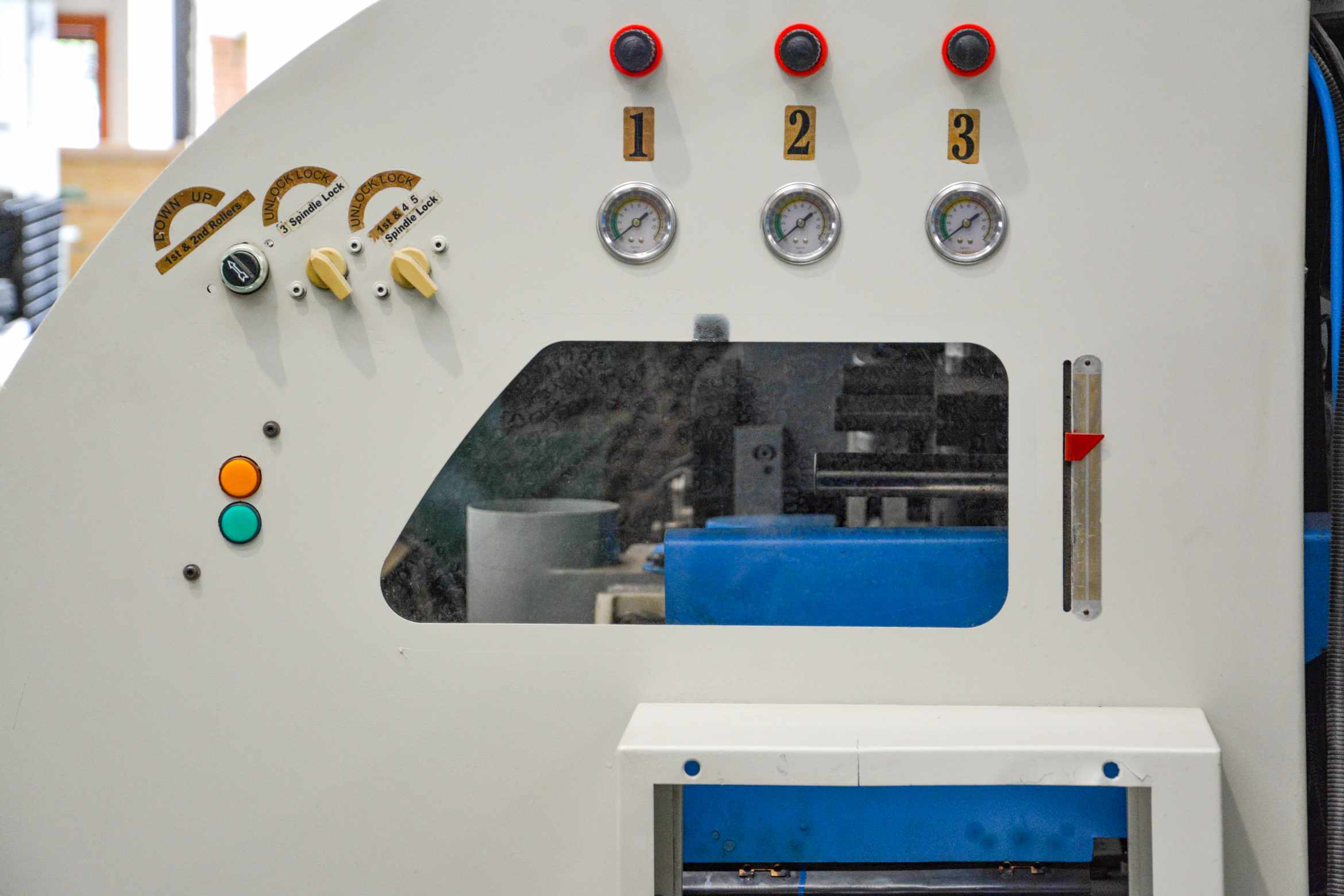

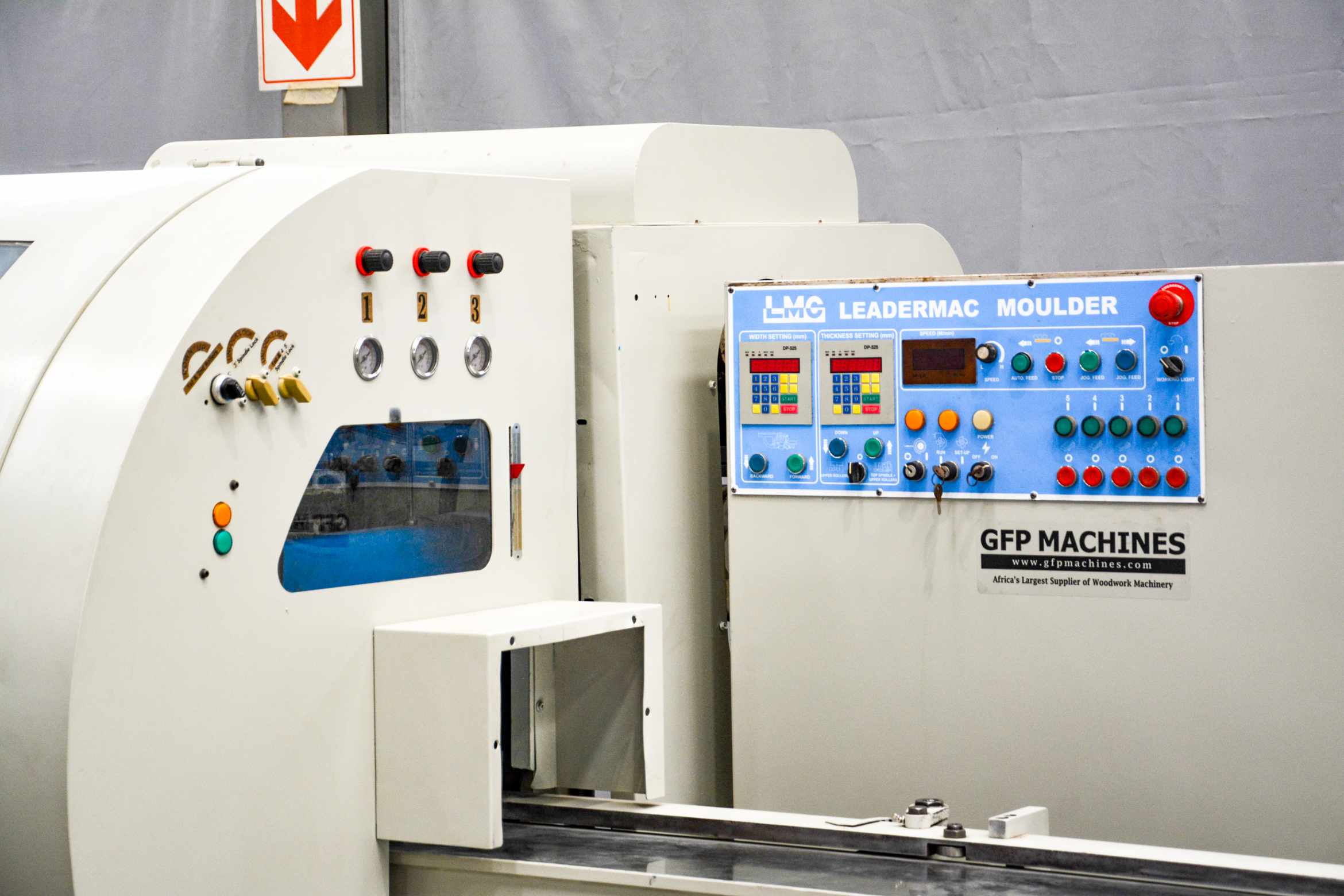

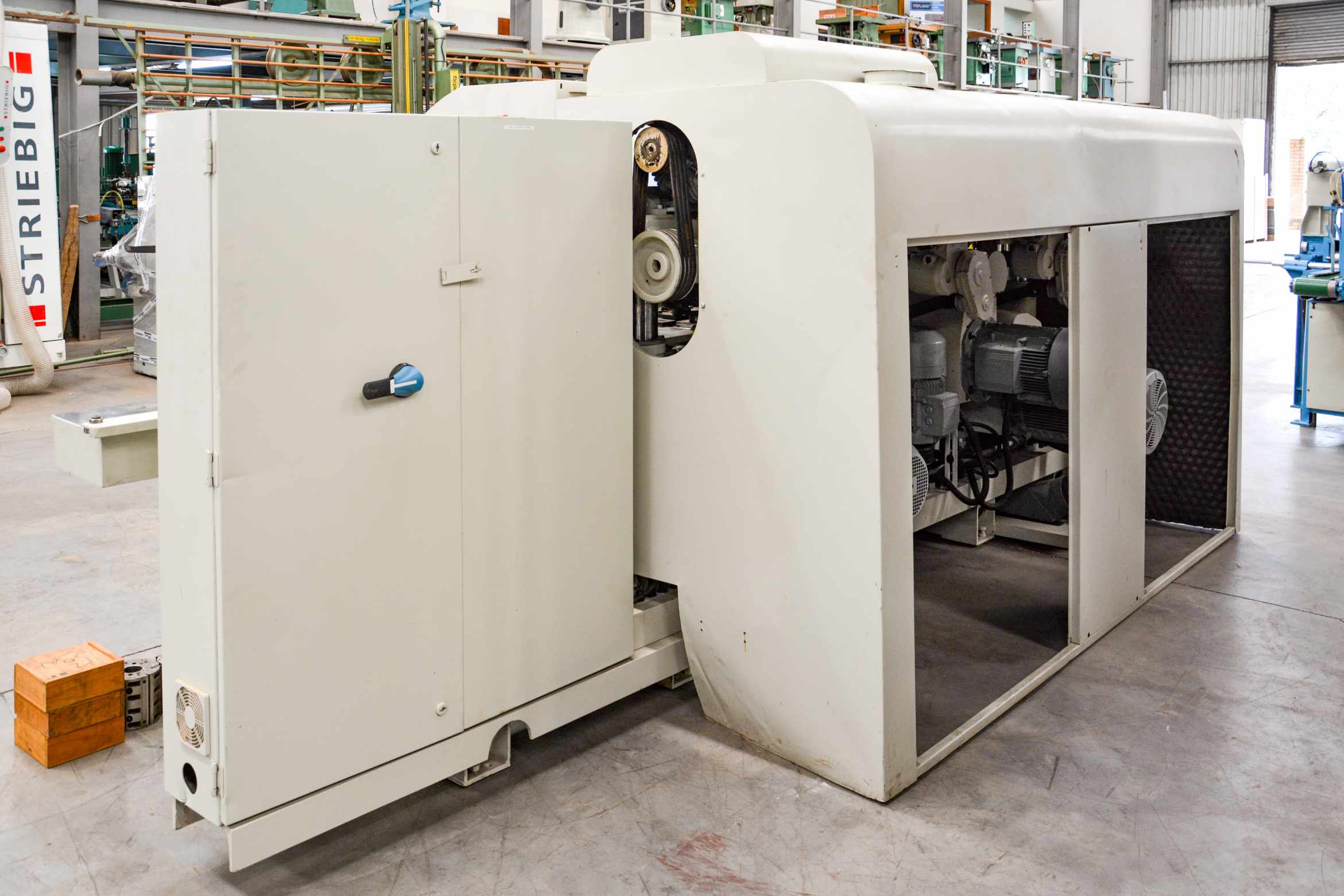

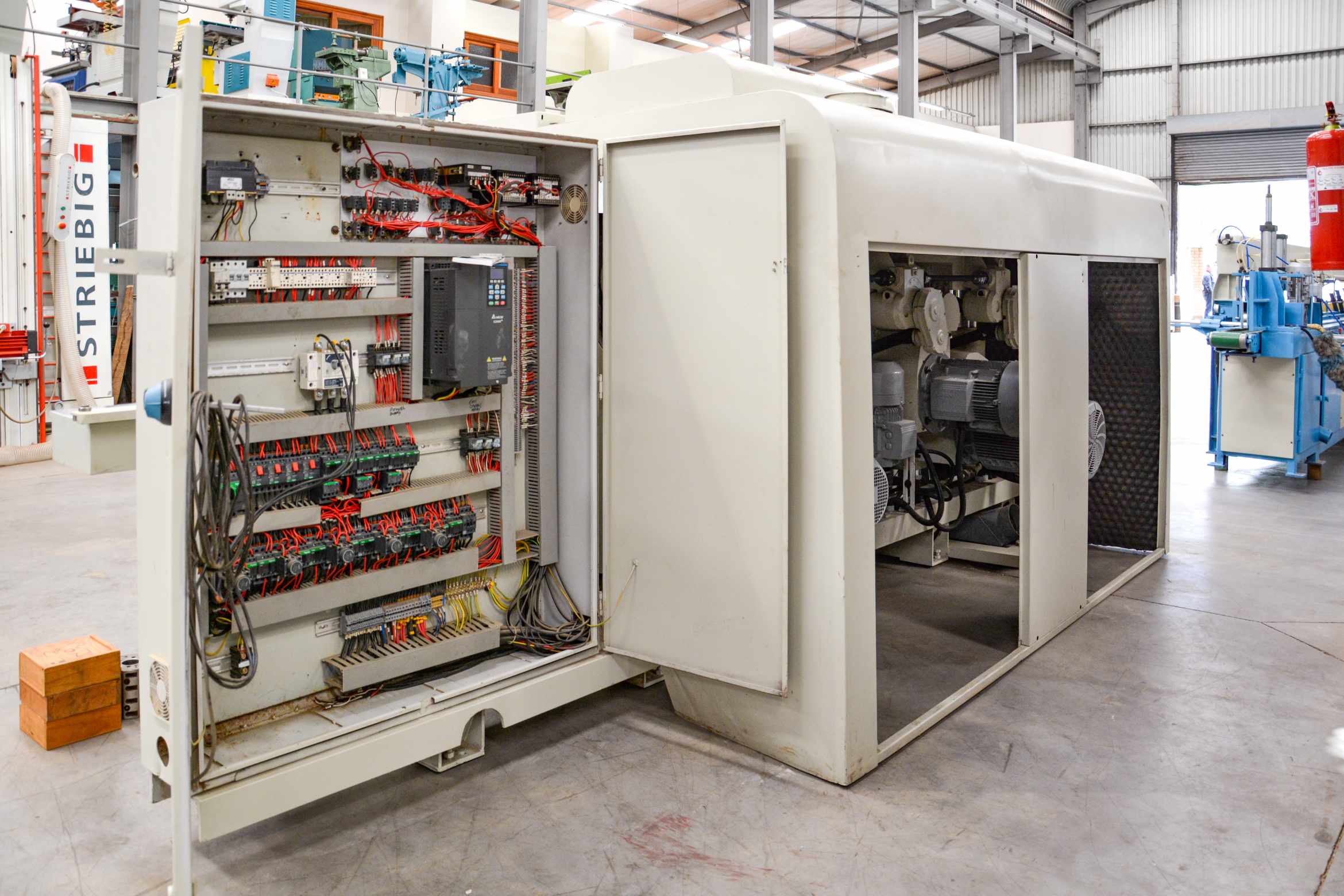

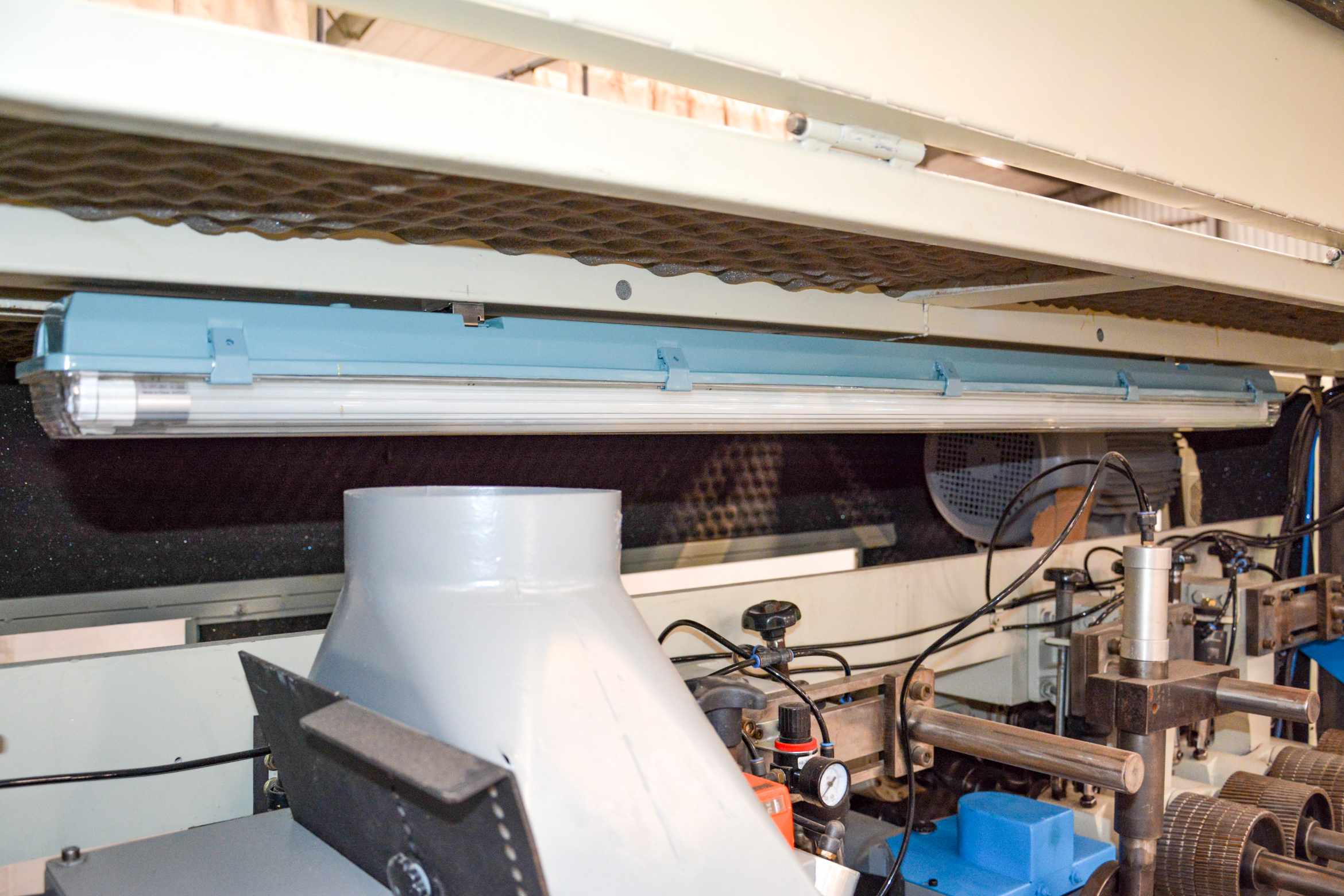

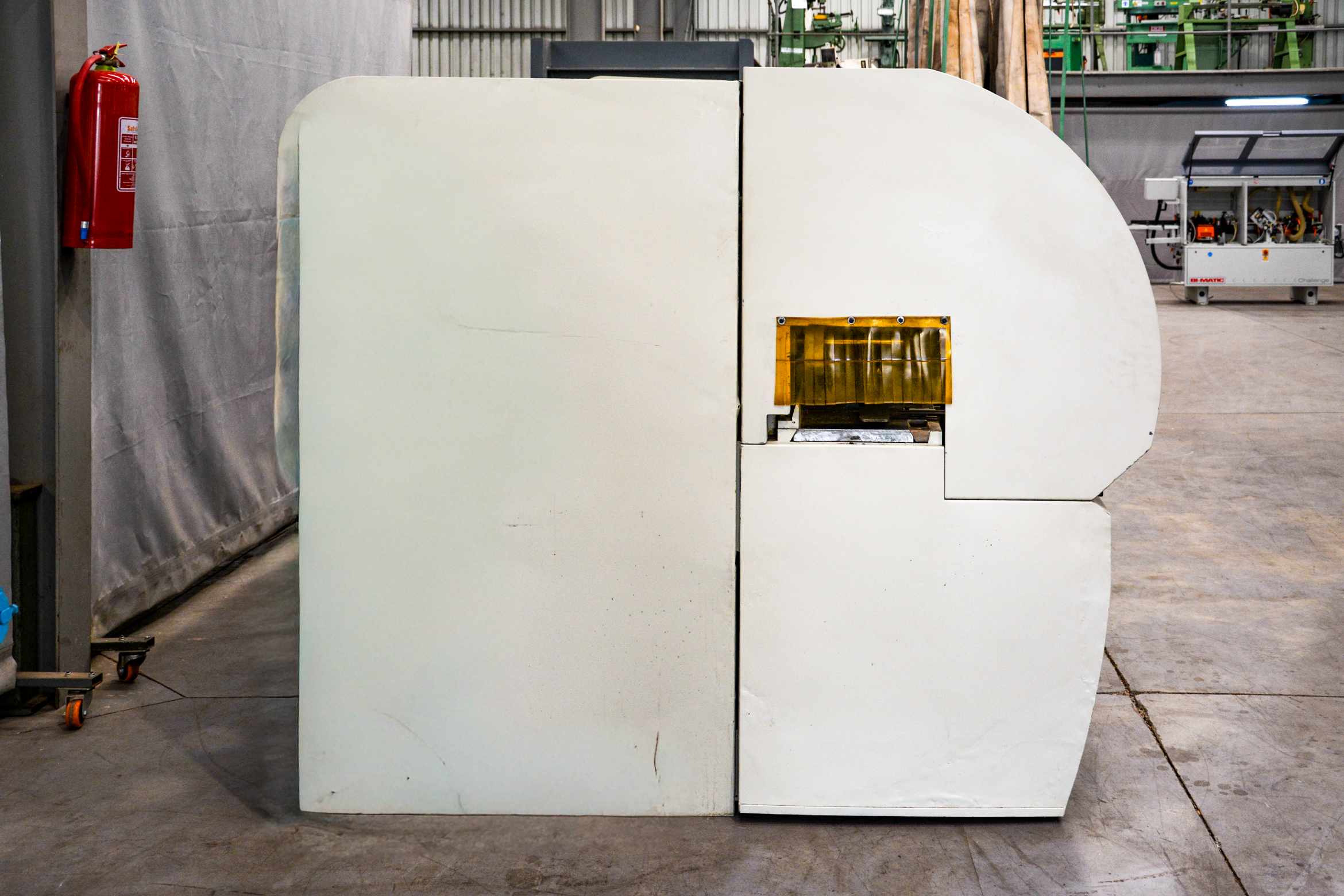

  • Enclosure: Full acoustic sound-attenuation and safety enclosure hood
  • Transport Dimensions: 4000mm (Length) x 2100mm (Width) x 1900mm (Height)
  • Machine Weight: 5,000+ kg

Description

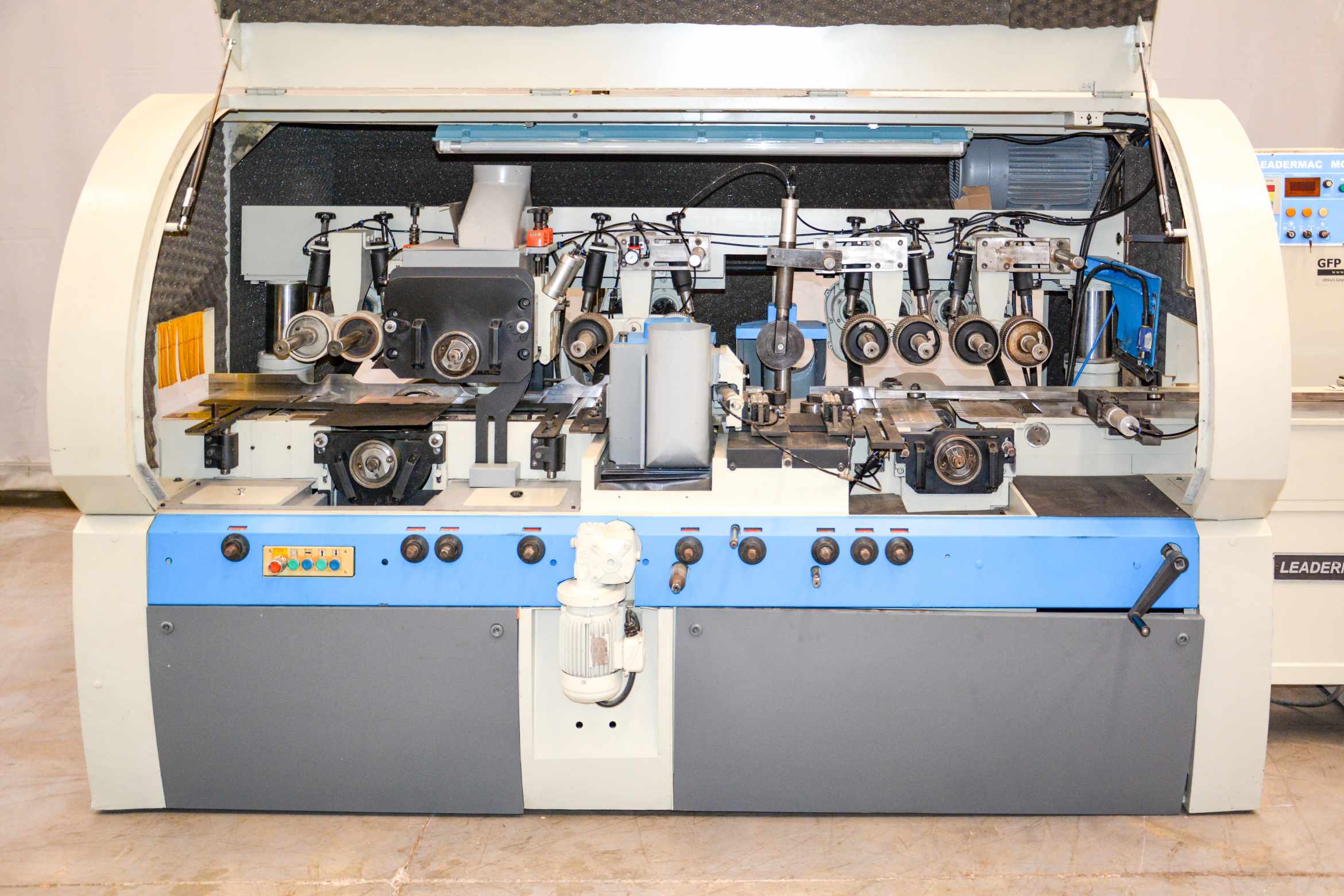

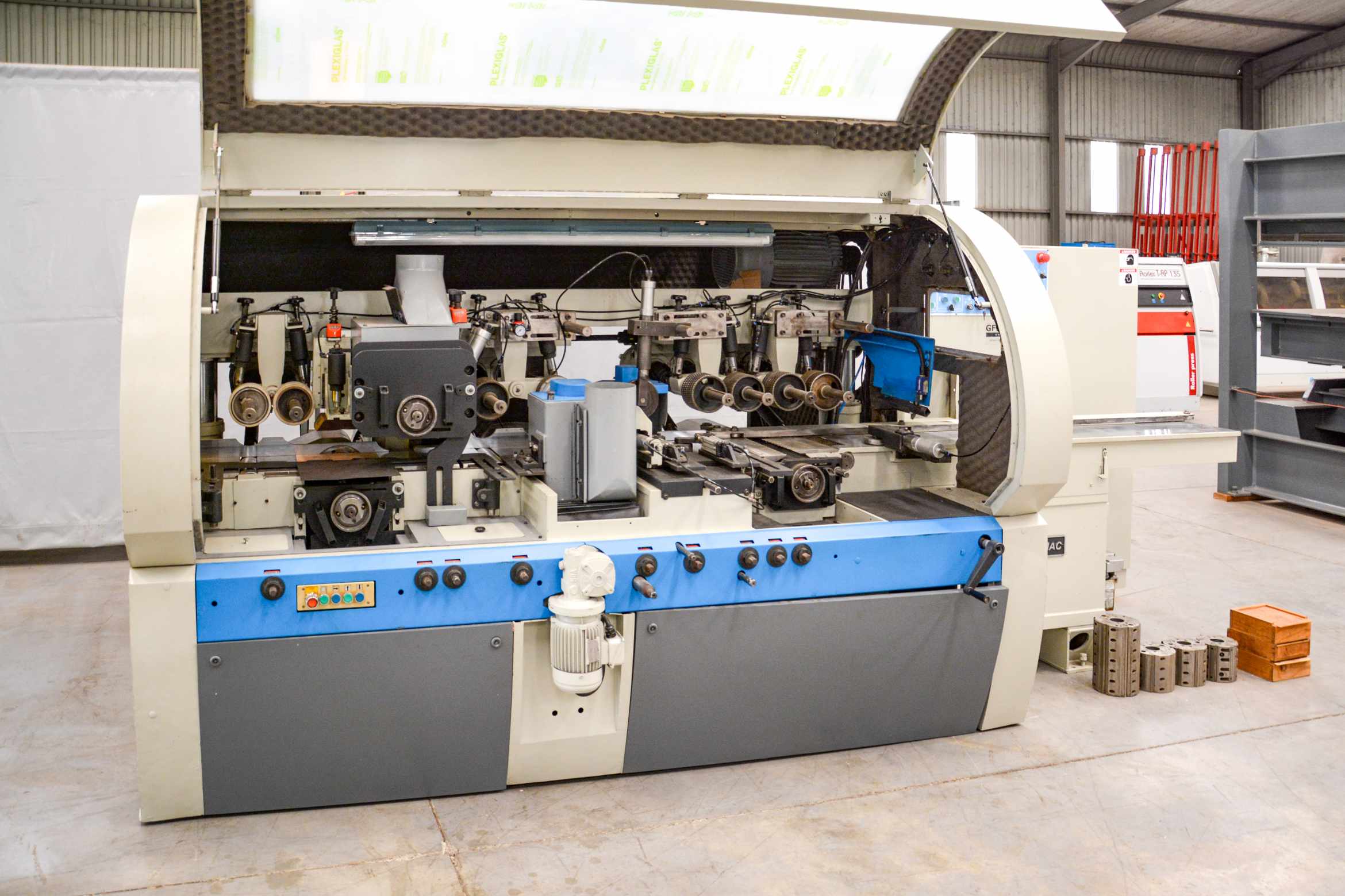

Heavy-duty 5-spindle industrial planer moulder engineered by Leadermac (LMC) for continuous high-speed timber profiling, tongue-and-groove flooring, decking, and architectural moulding runs. Built on a rigid 5,000 kg vibration-dampening chassis and enclosed in a full acoustic safety hood with viewing windows.

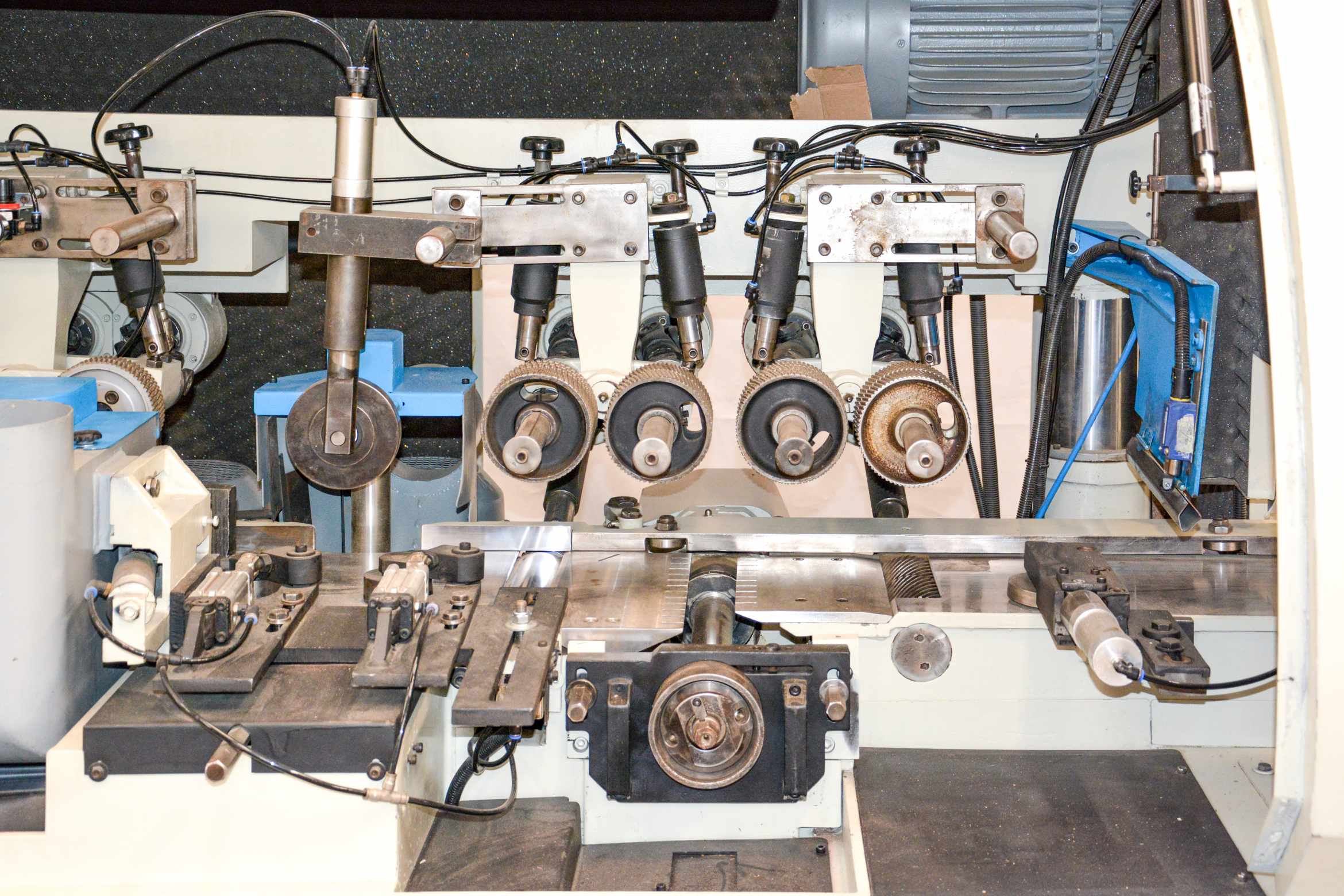

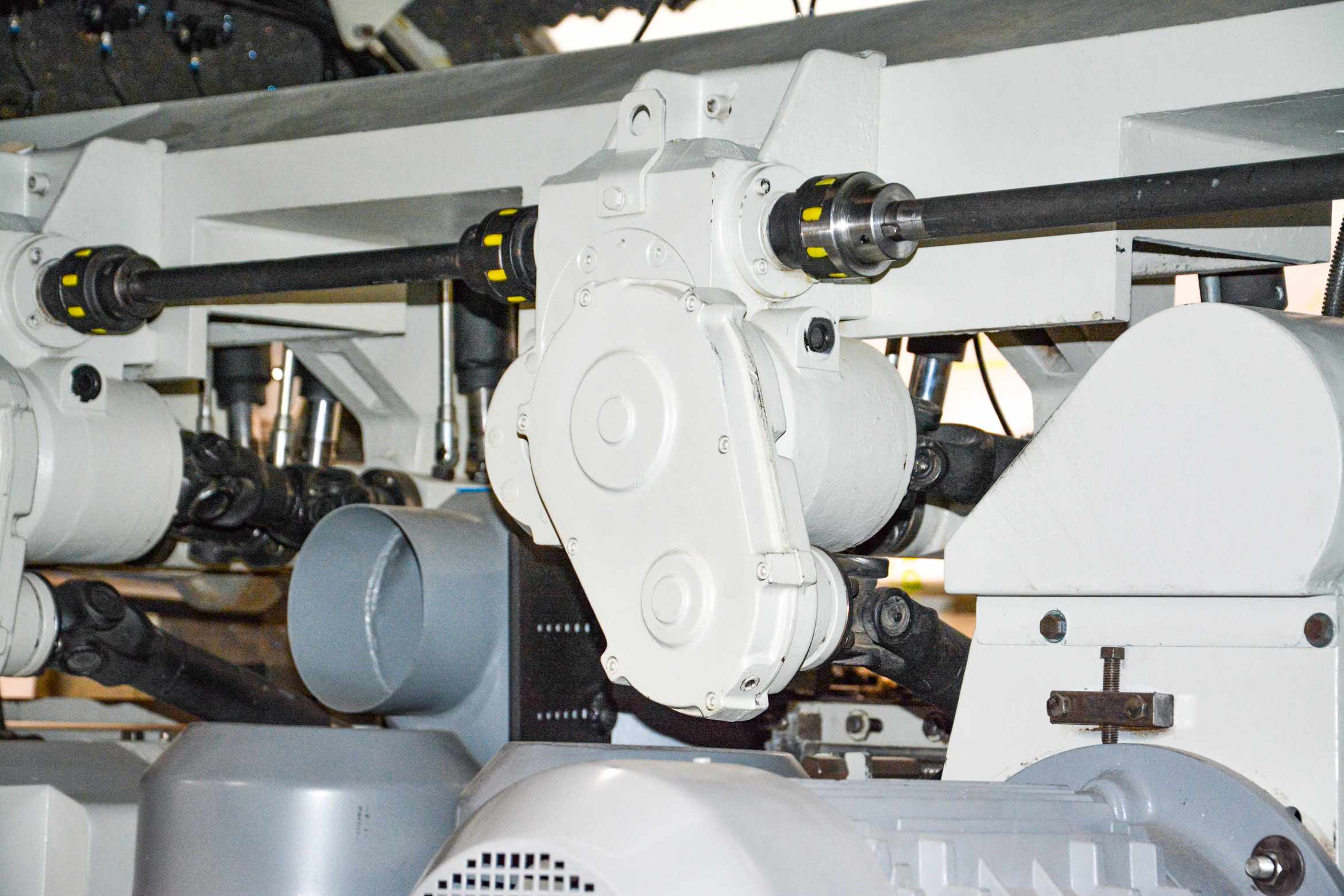

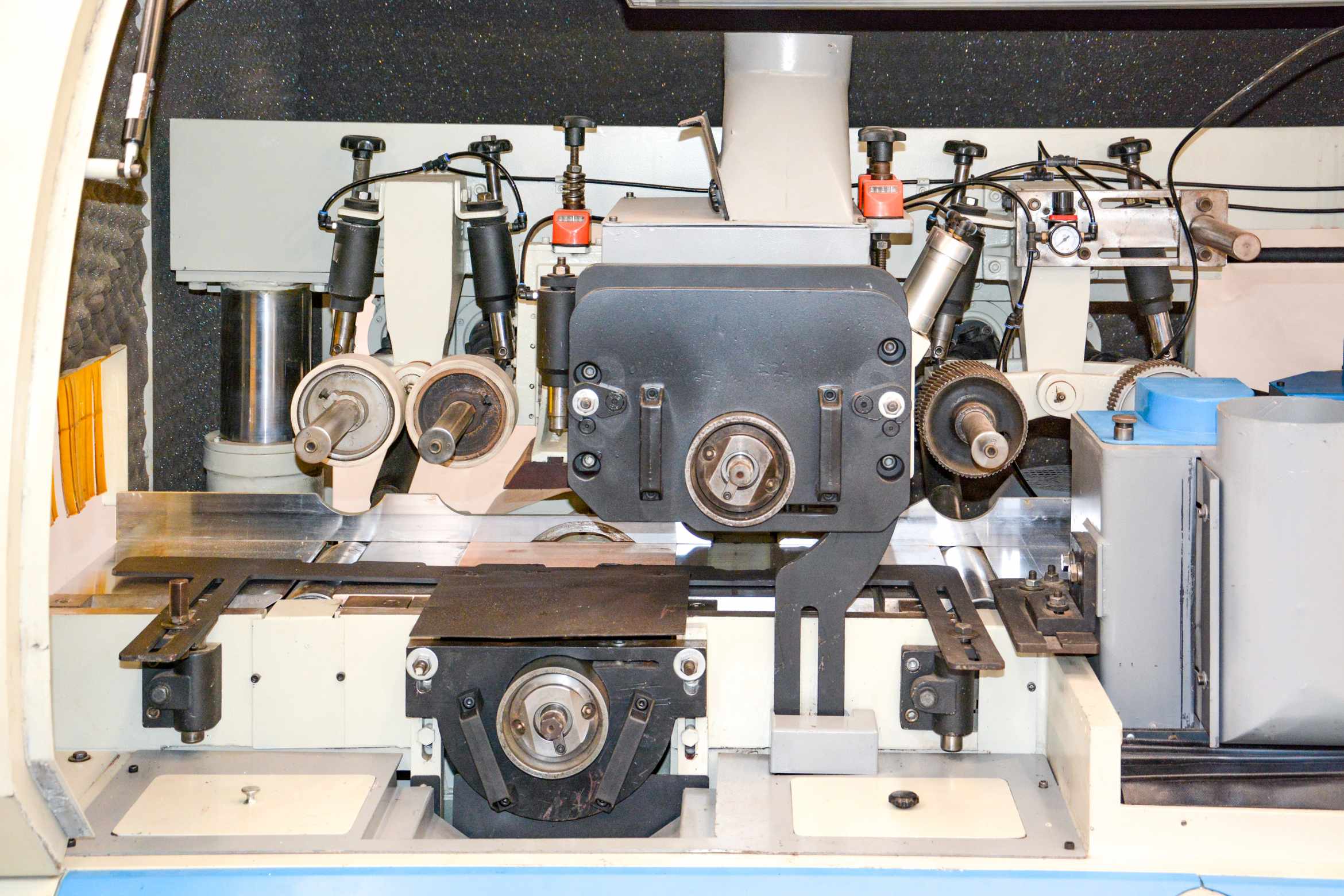

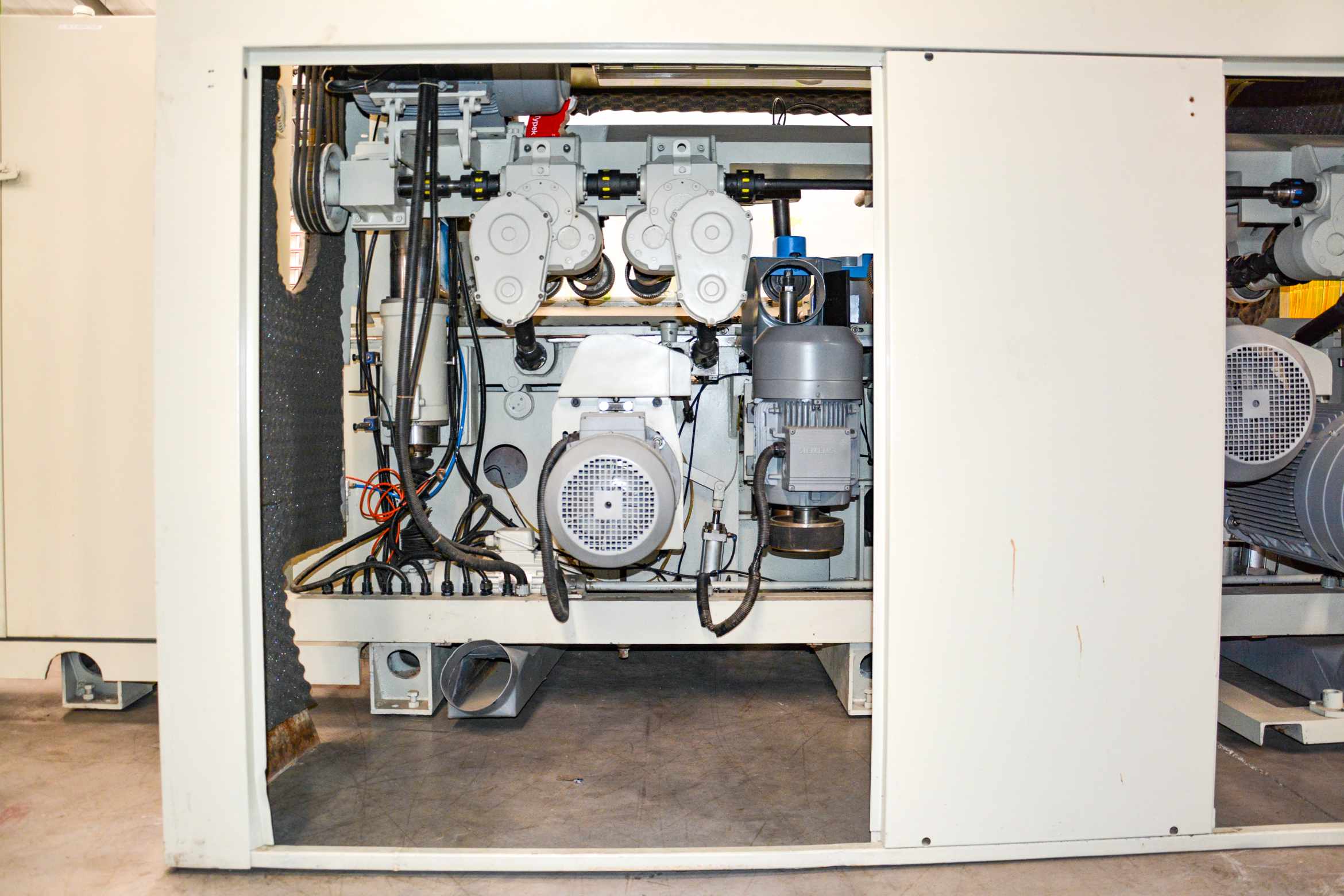

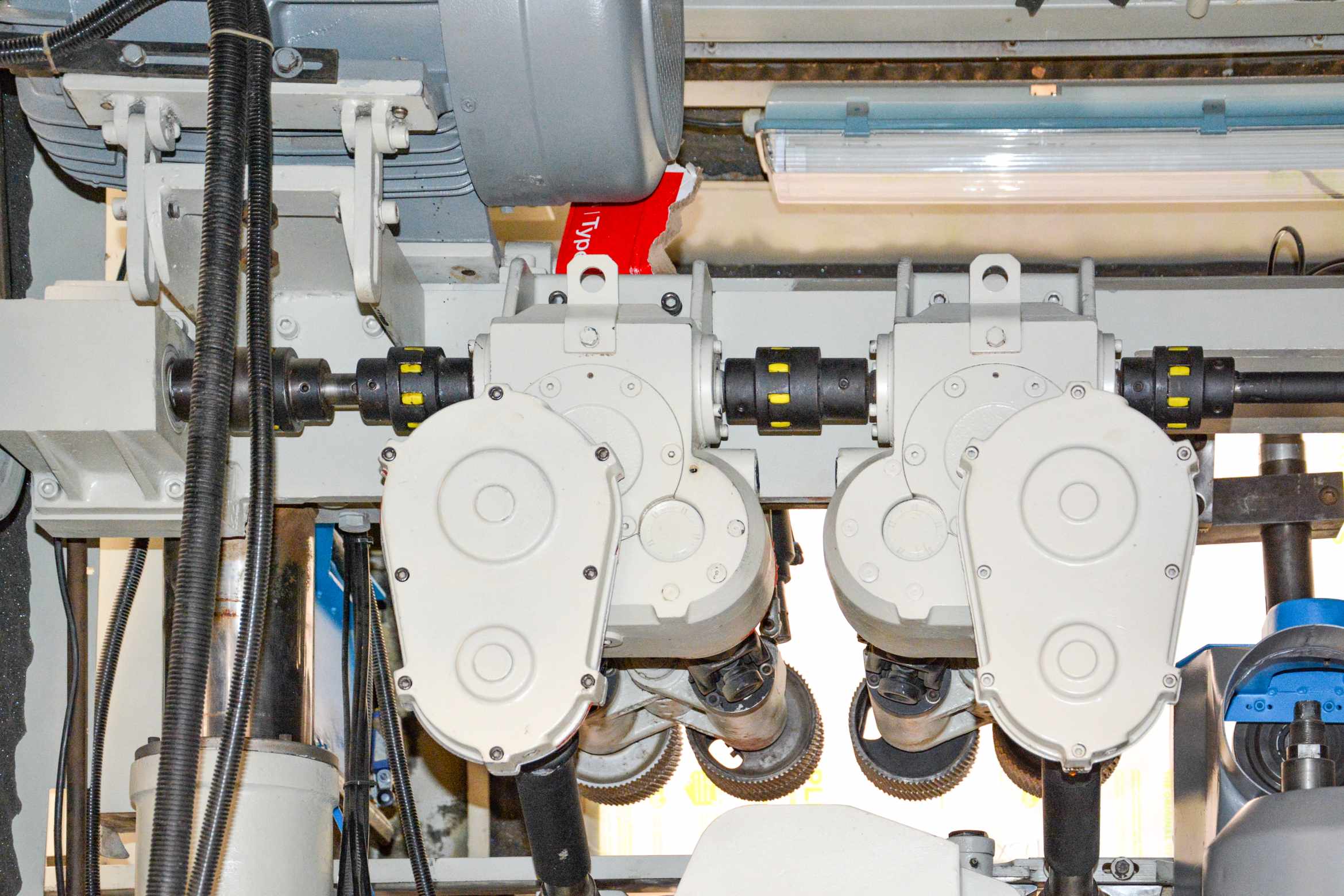

Features a 260mm working width and heavy 50mm hydro-spindle arbors driven by five independent high-torque motors delivering a combined 70 kW of cutterhead drive. Extensively overhauled by our workshop and engineering technicians: fitted with all-new bearings across all spindles and drives, brand-new drive belts, all-new pneumatic seals and air piping, and newly precision-machined idler bearing housings. Supplied complete with a set of 50mm hydro-locking cutterhead blocks.ย

QUALITY GUARANTEE: WOODWORK MACHINERY FROM GFP.

โœ…ย 3 Month quality warranty. T&Cโ€™s apply.
โœ…ย Fully serviced and checked by GFP Machines!
โœ…ย Technical services and training provided.
โœ…ย Delivery assistance throughout Africa.
โœ…ย Gys Potgieterโ€™s promise: โ€œIf you are not happy with your machine, then bring it back within 7 days for a full refundโ€.

Contact us for pricing and inquiries.
Call:ย 011 948 7934
WhatsApp:ย +27791559158
