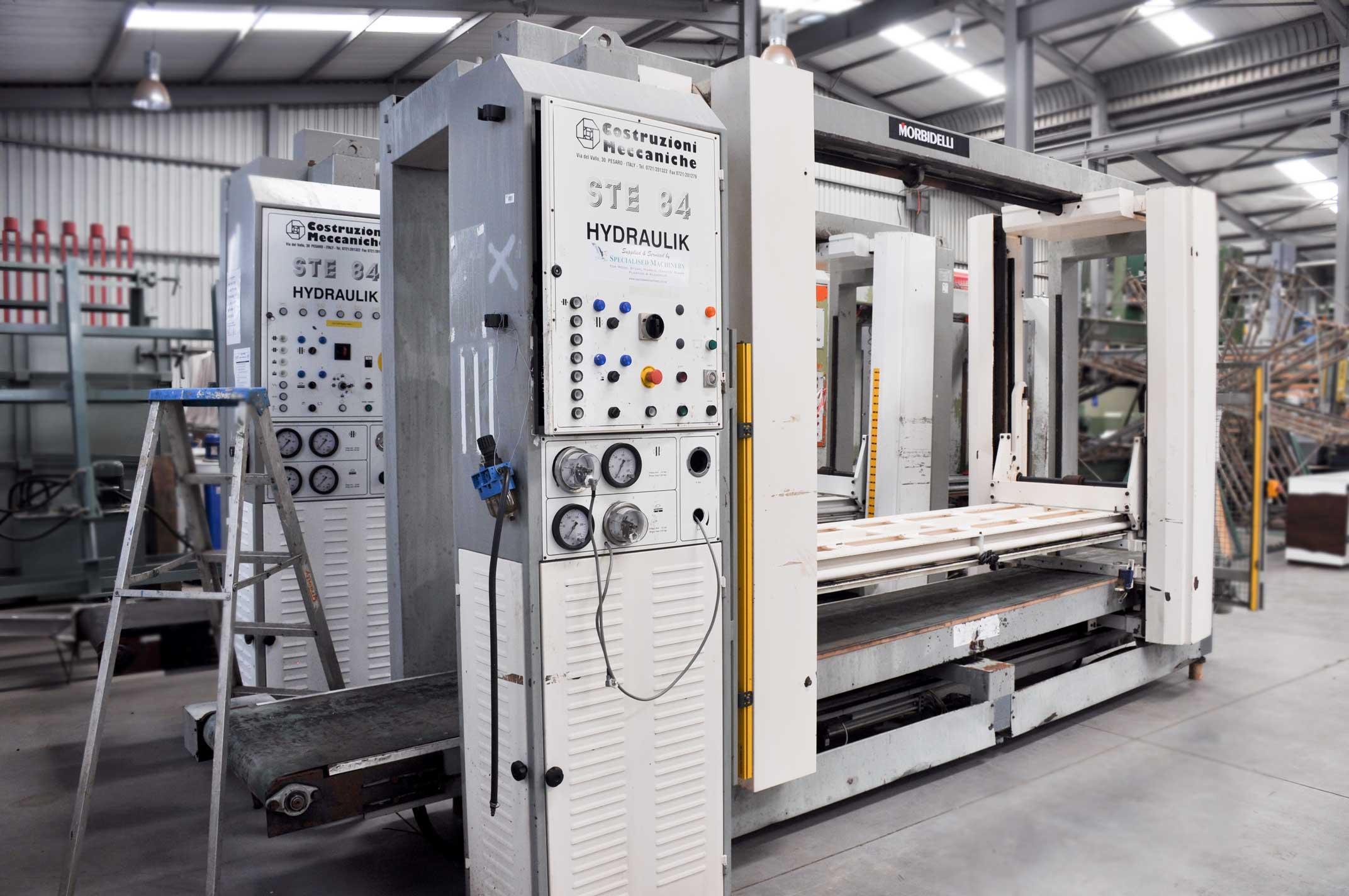

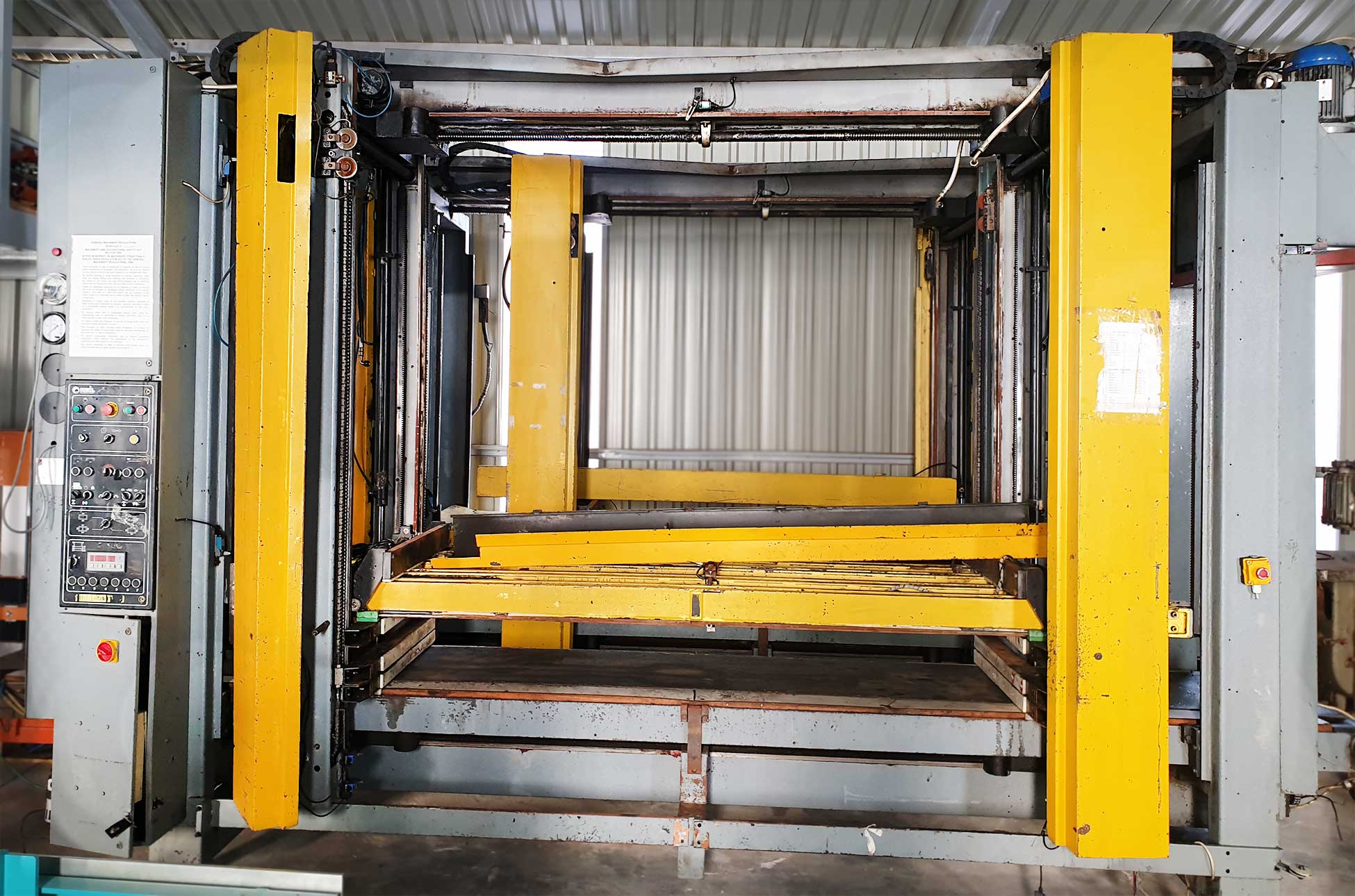

MORBIDELLI STE84 CARCUSS PRESS X5

Product information

5 x Available.

Maximum Working widthย ย ย ย ย ย ย ย ย ย ย ย  750 mm
Maximum working height ย ย ย ย ย ย ย ย ย ย ย  1300 mm
Minimum working heightย ย ย ย ย ย ย ย ย ย ย ย  300ย  mm
Maximum working lengthย ย ย ย ย ย ย ย ย ย ย ย  2500 mm
Minimum working lengthย ย ย ย ย ย ย ย ย ย ย  300 mm
Conveyor belt speedย ย ย ย ย  22.5 m/min
Clamping time adjustmentย ย ย ย ย ย ย ย ย  1 to 999 sec
Side clamp position speedย ย ย ย ย ย ย ย ย ย  6 m/min
Vertical pressureย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย  0 to 1500 kg
Horizontal pressureย ย ย ย ย ย ย  0 to 1000 kg
Compressed air pressureย ย ย ย ย ย ย ย ย ย ย ย ย  6 atm
Installer power ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย  5 kw
Power requirements ย ย ย ย  220/380v , 50Hz

Overall dimensions
Lengthย  5265 mm
Heightย ย  2650 mm
Widthย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย  1350 mm

Description

5 x Carcuss Pressers available.

โœ… 3 Month quality warranty. T&Cโ€™s apply.
โœ… Fully serviced and checked by GFP Machines!
โœ… Technical services and training provided.
โœ… Delivery assistance throughout Africa.
โœ… Gys Potgieterโ€™s promise: โ€œIf you are not happy with your machine, then bring it back within 7 days for a full refundโ€.

Contact us for pricing and inquiries.
