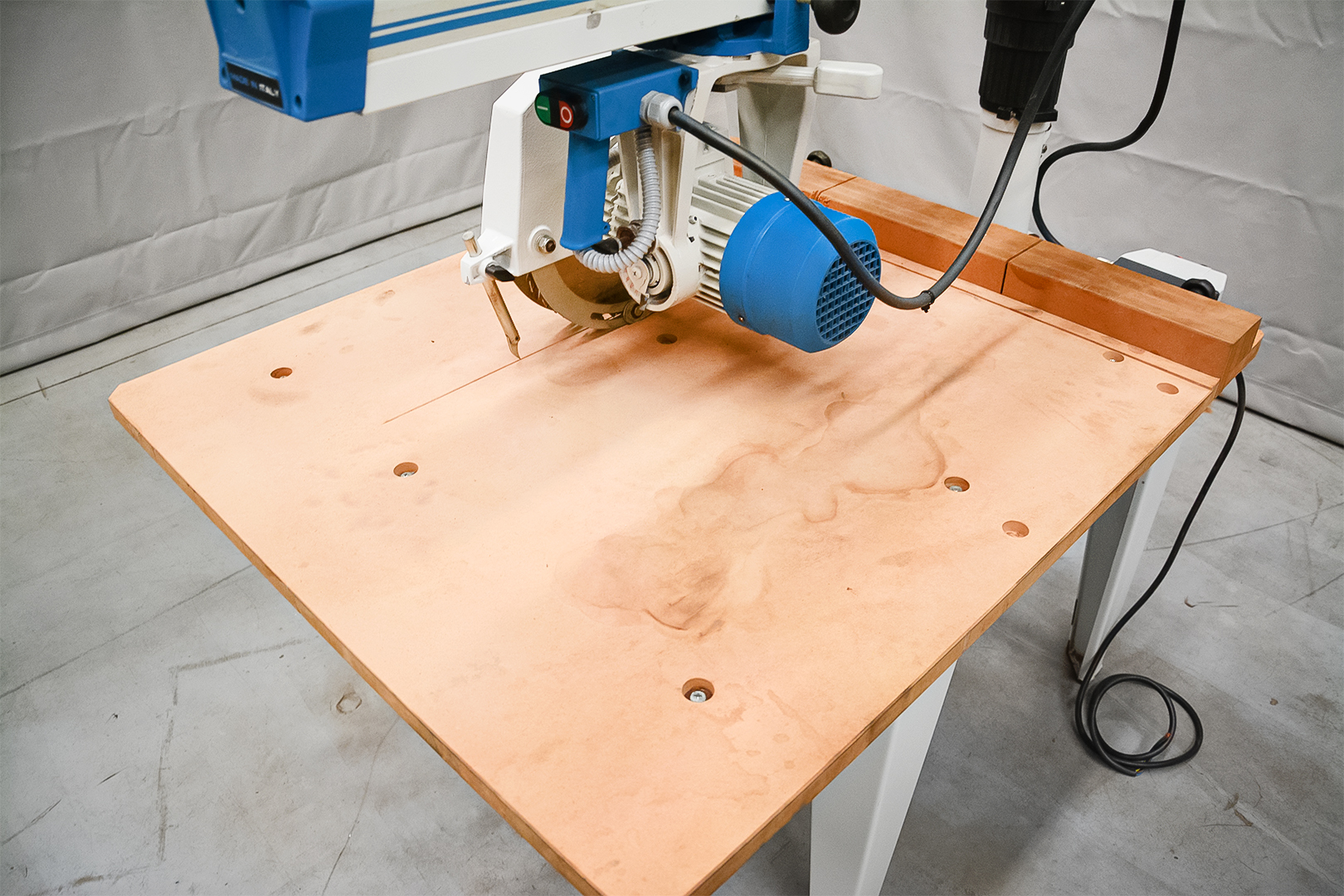

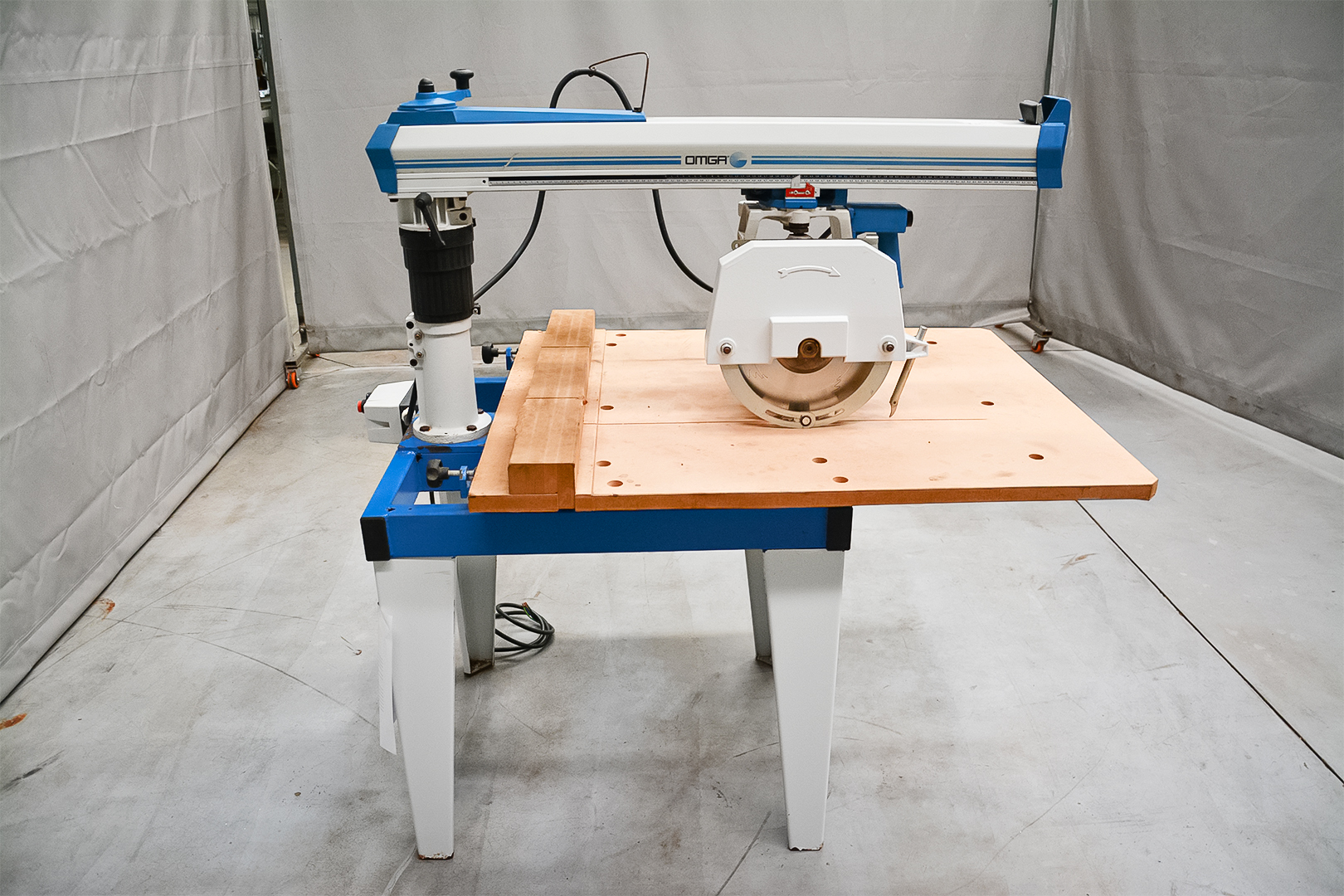

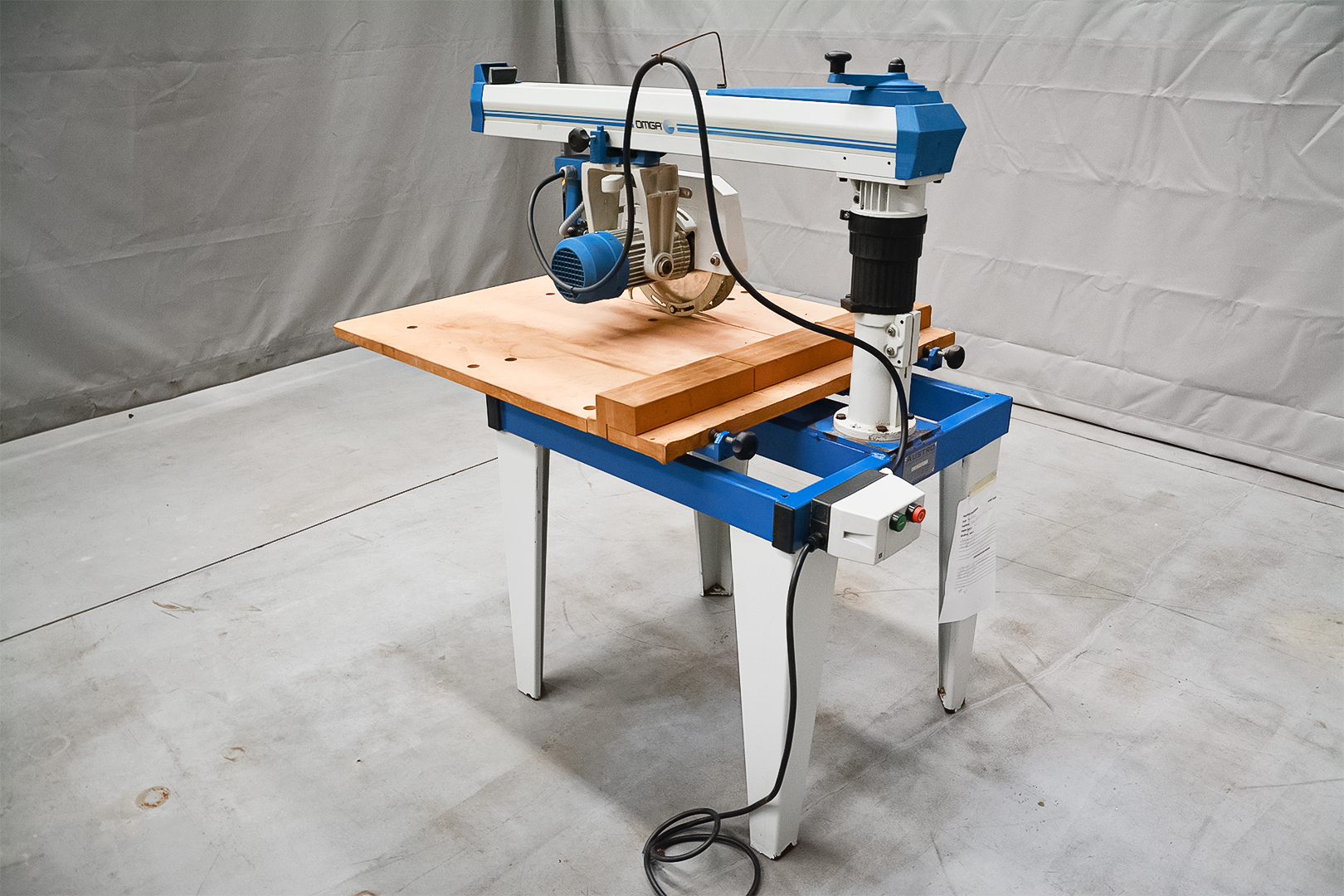

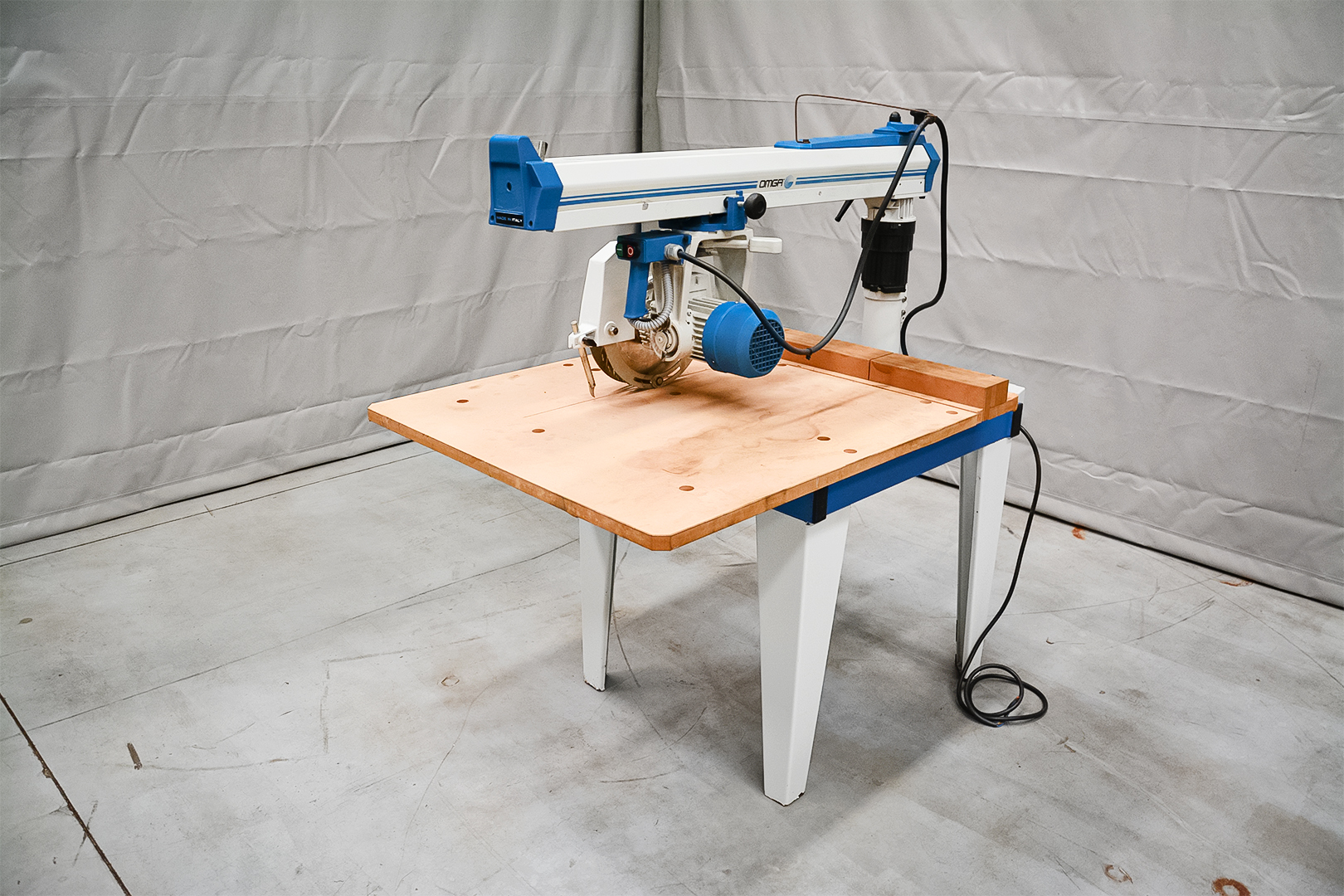

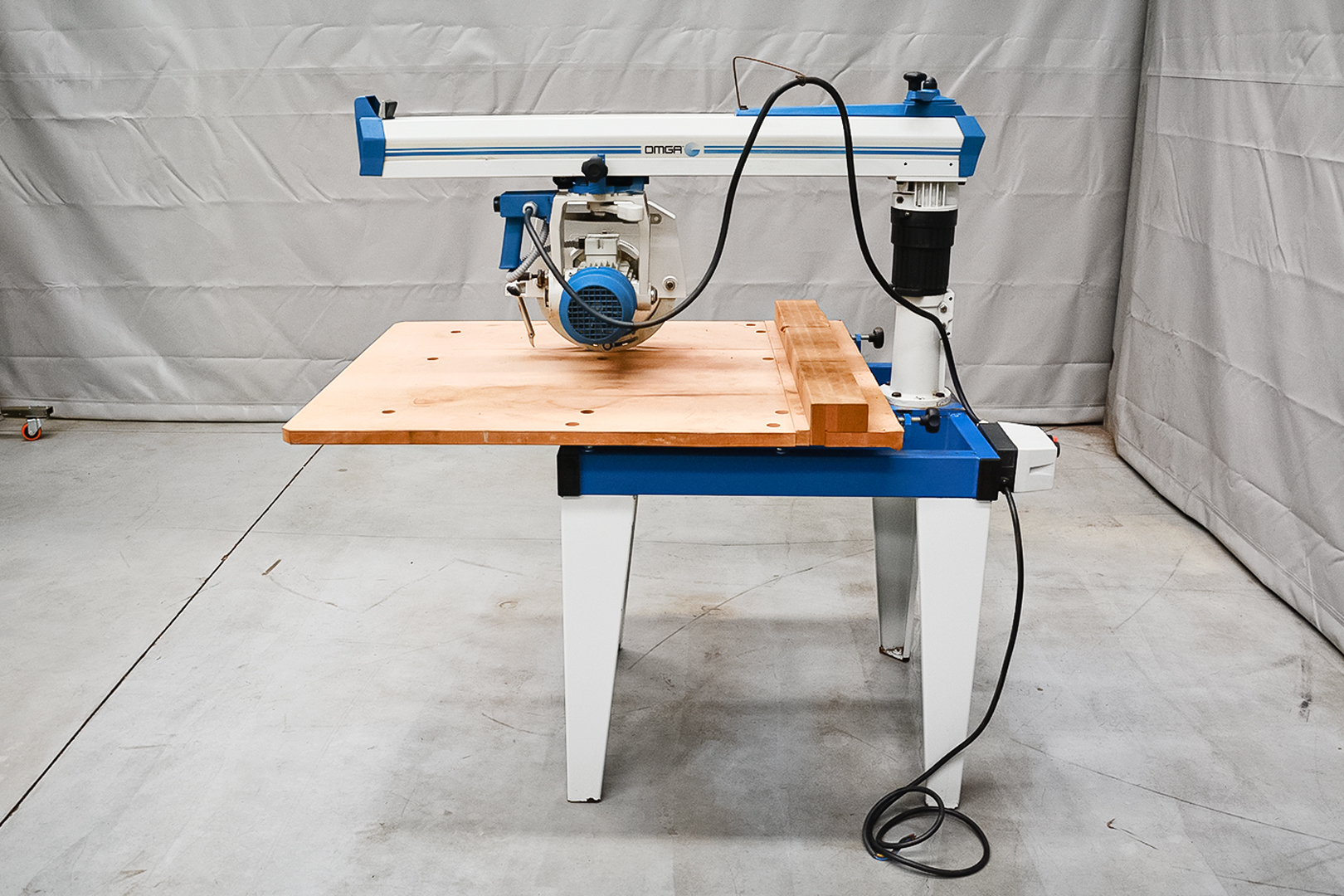

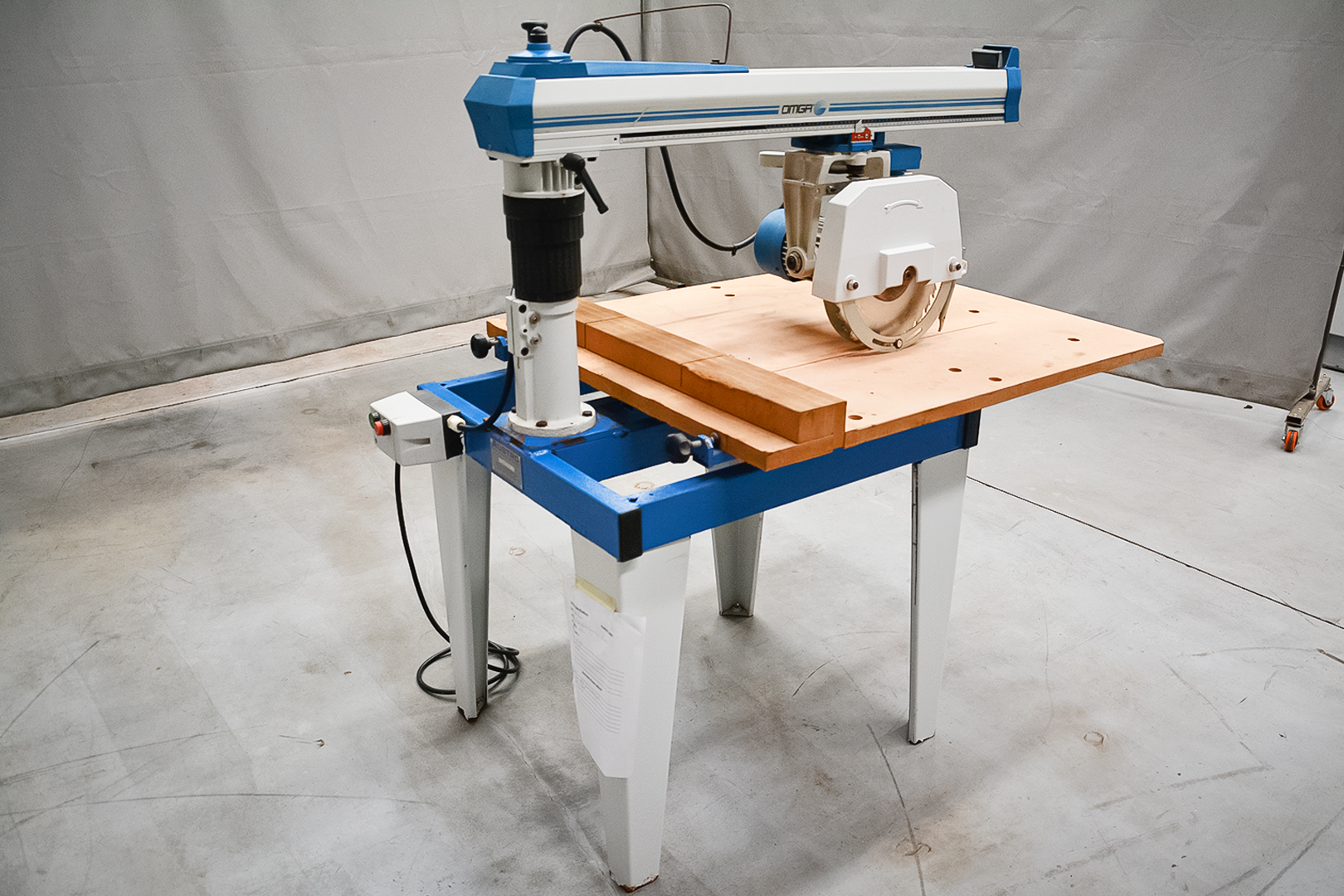

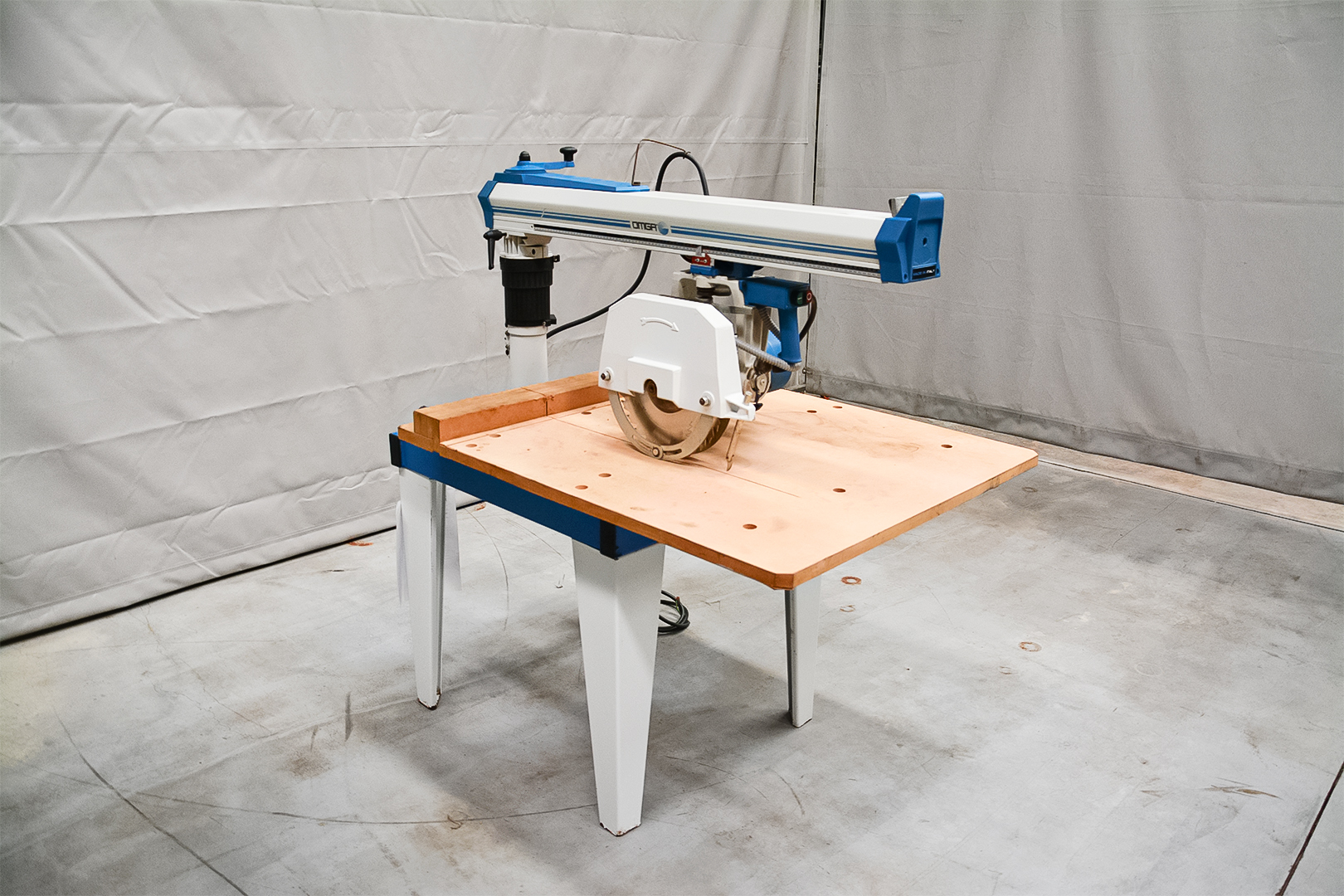

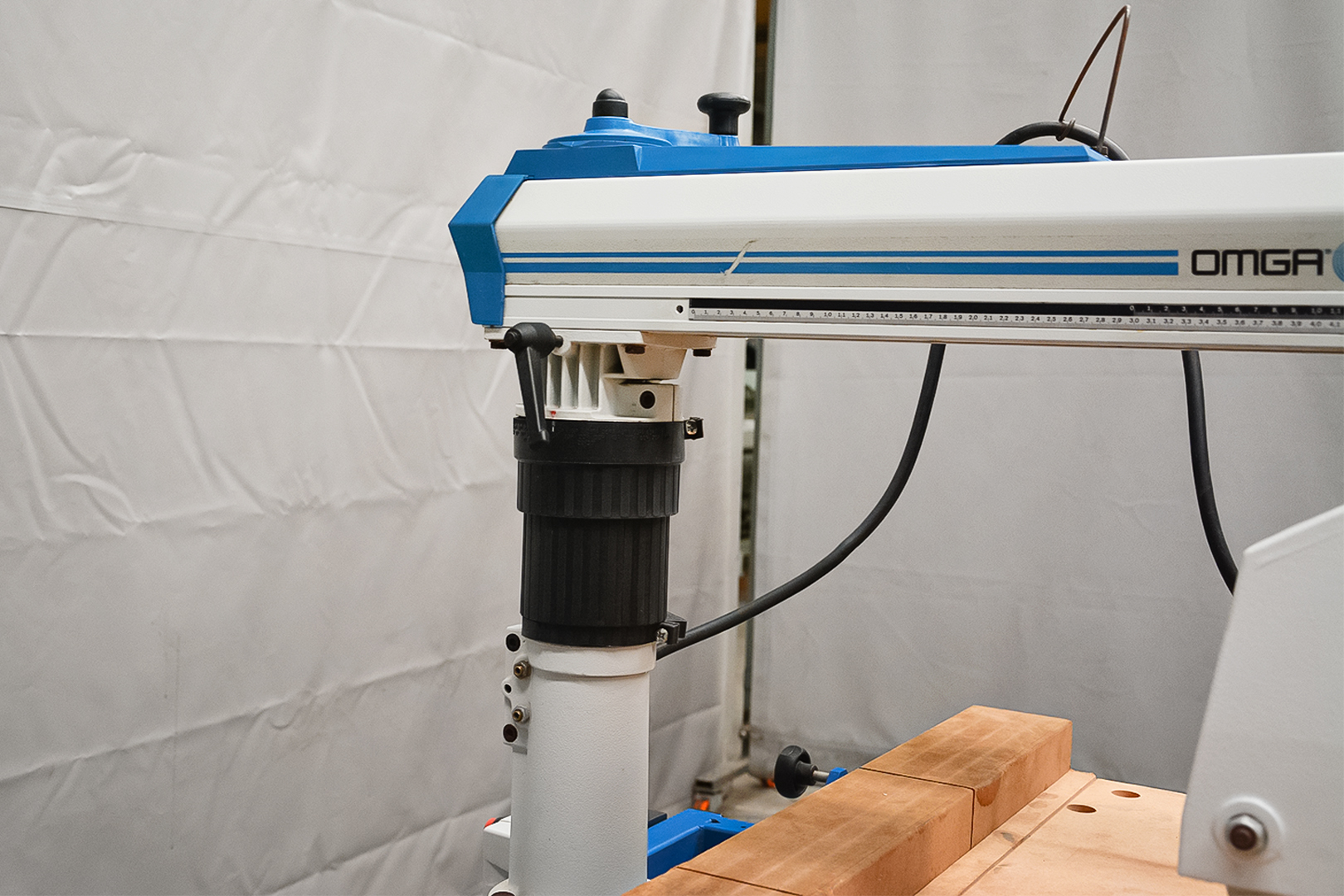

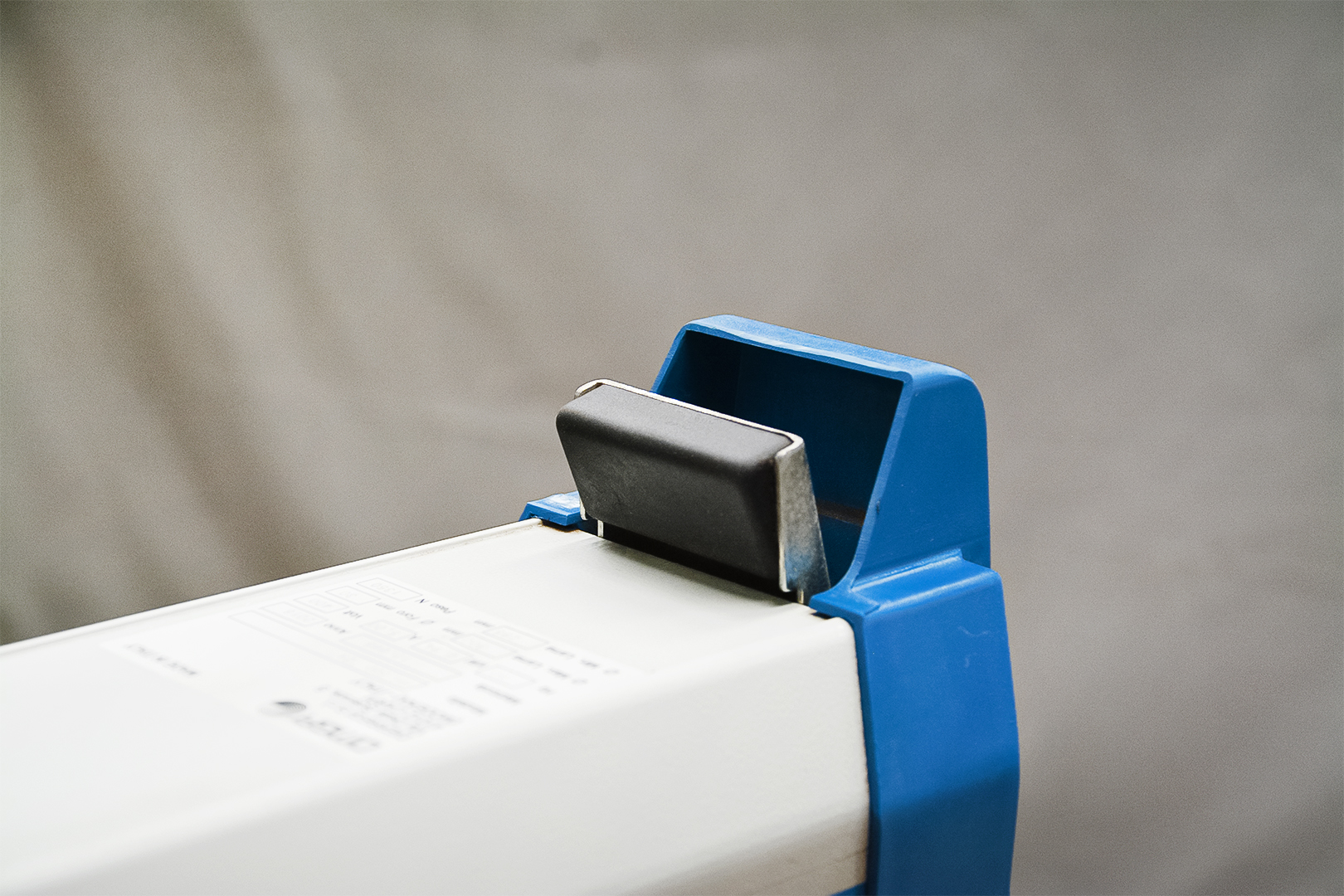

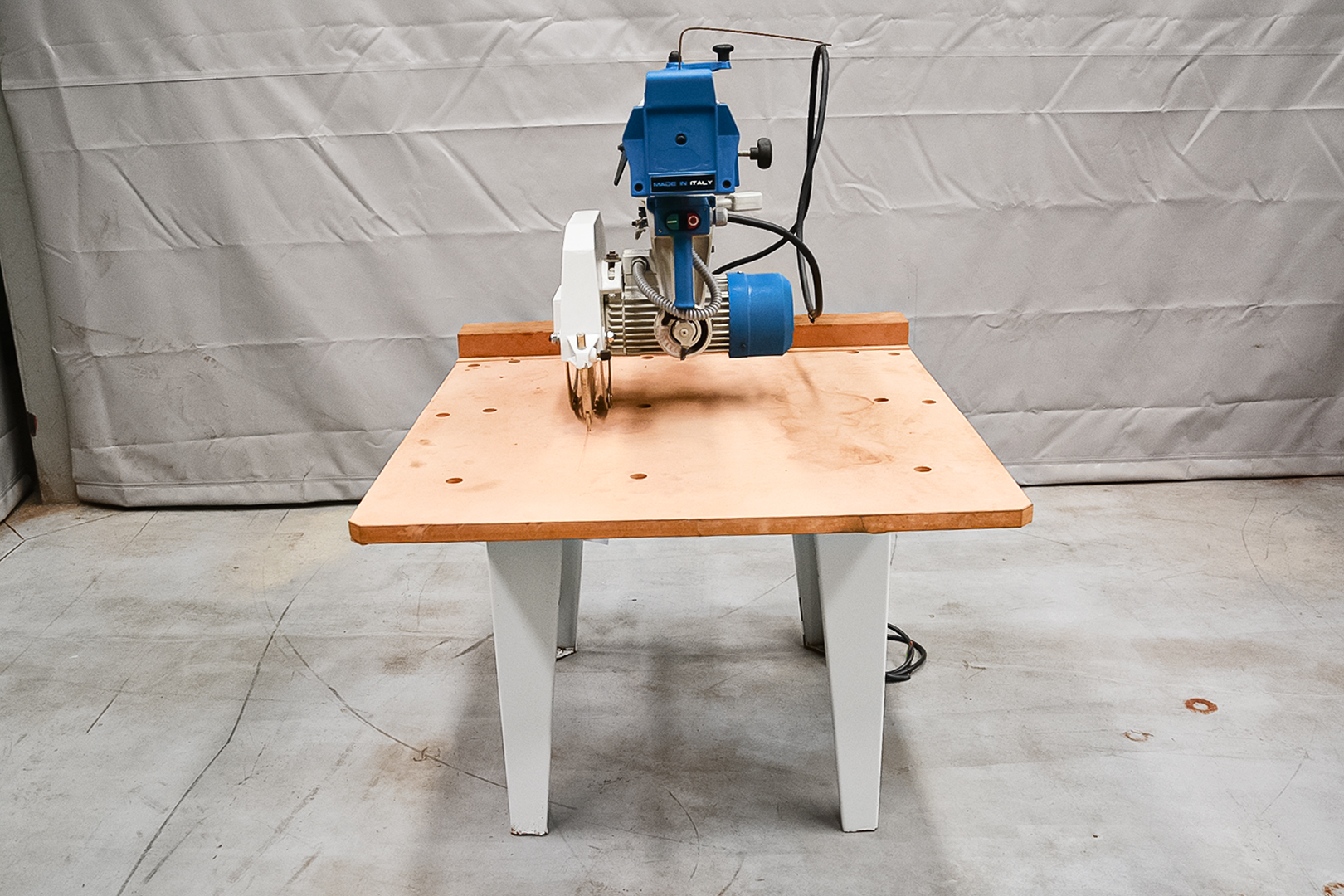

These popular OMGA radial arm saws are excellent for frame makers, furniture manufacturers, carpentry shops and sawmills. With all radials, both vertical and horizontal, the axis can be swiveled or tilted. Main angles are achieved with a self-centering locking device. Intermediate angles are set manually.

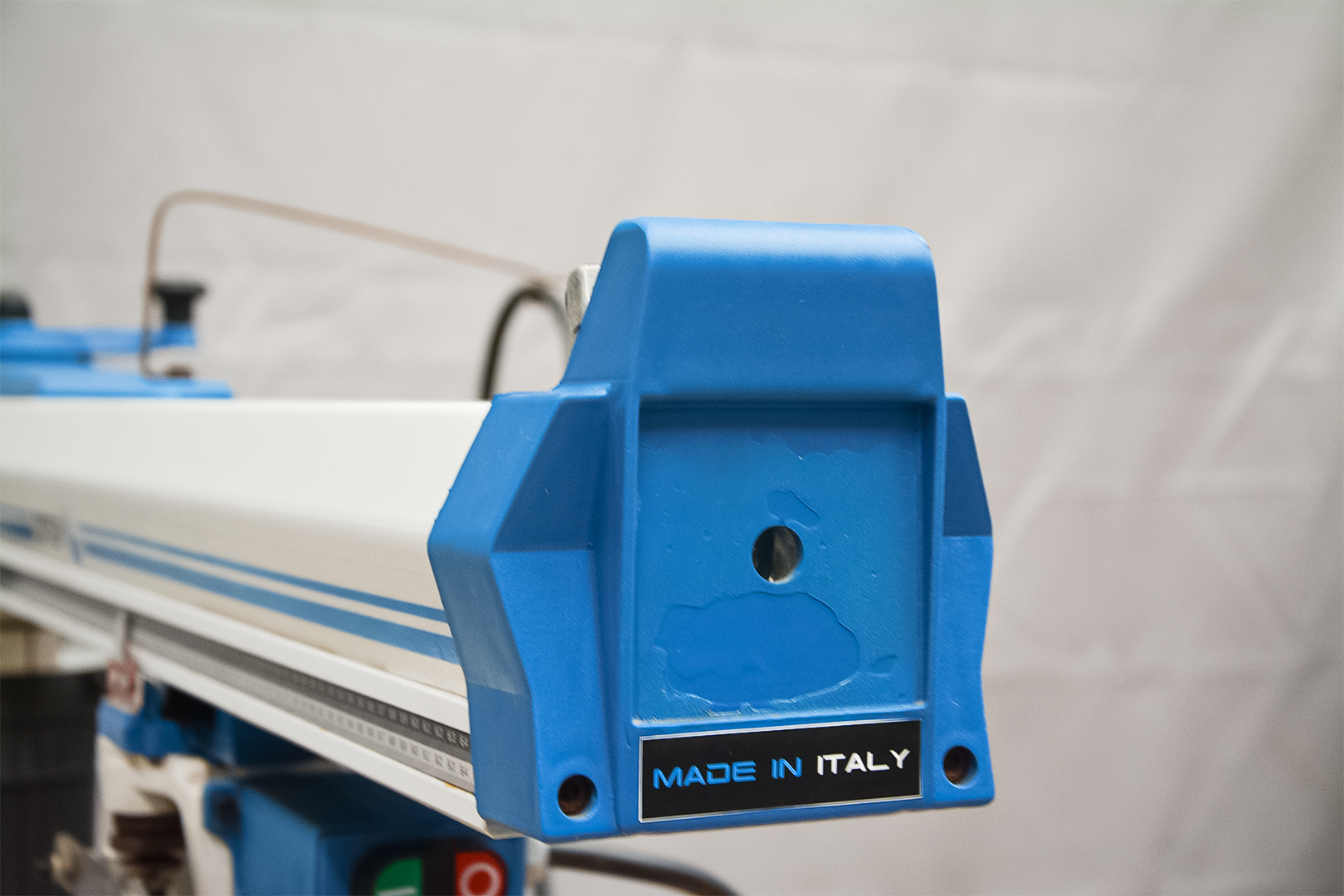

Clean and beautiful quality Radial Arm Saw from Italy.
Sold fully checked, serviced and with a quality guarantee attached.
3kW Motor
400v, 3 Phase, 50Hz
Max Blade Diameter: 300 mm

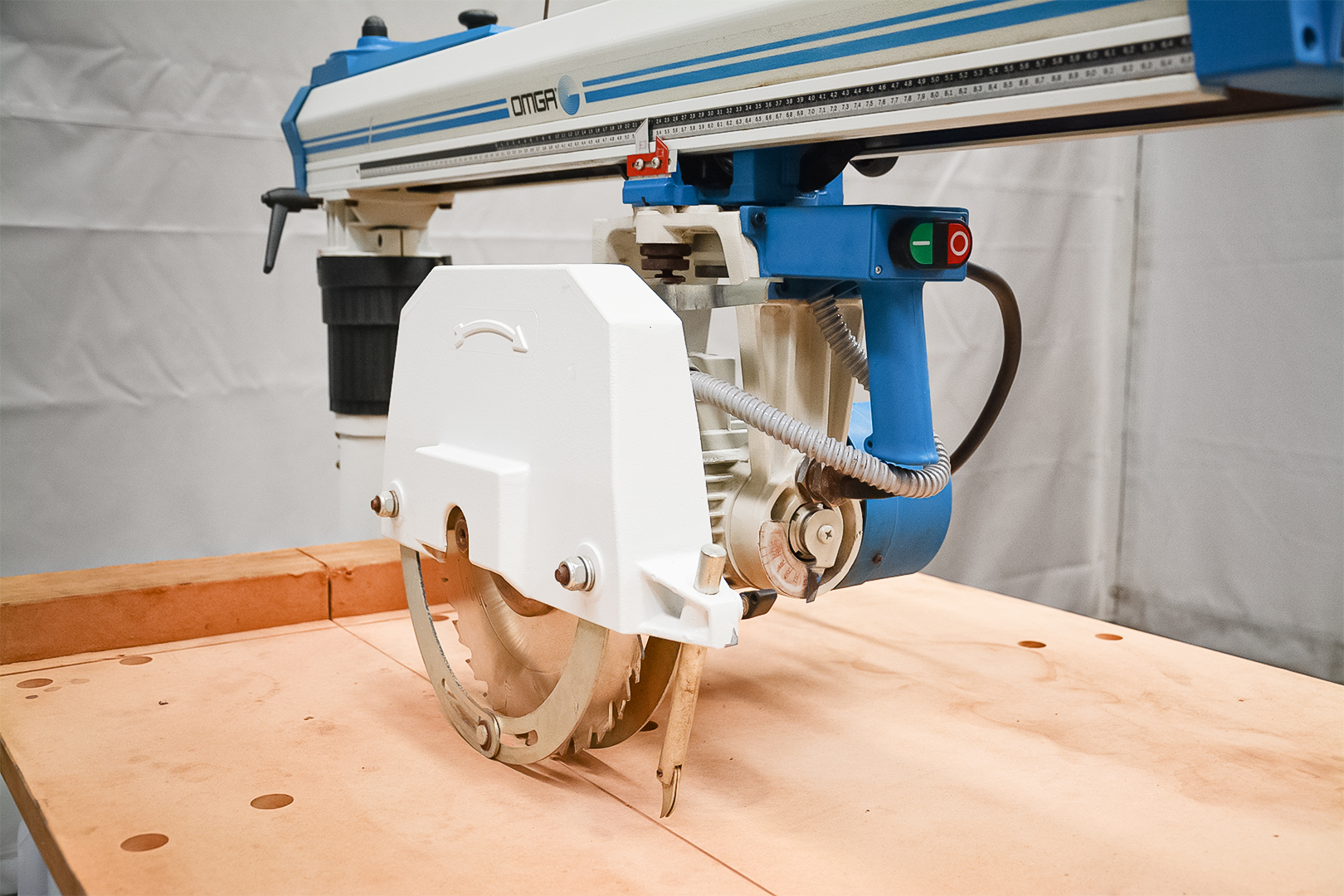

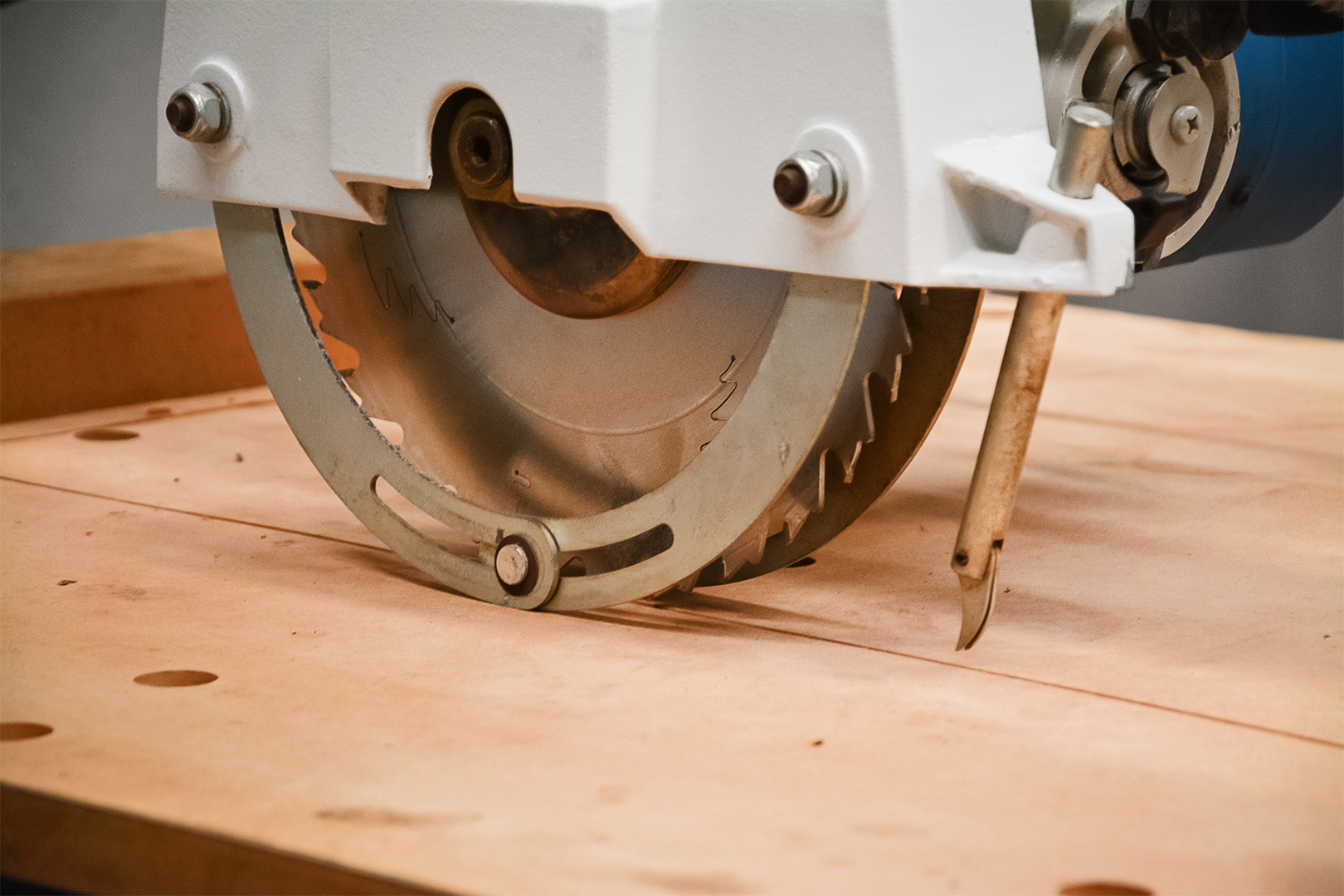

Blade Cover
Blade Guide
Tilting Blade
Swivel Head
Cutting Capacity
Cross cut capacity (90°): 698.5 mm
Cross cut capacity (45°): 494 mm
Max. depth of cut (90°): 114.3 mm
Max. depth of cut (45°): 81 mm
Ripping capacity: 930 mm

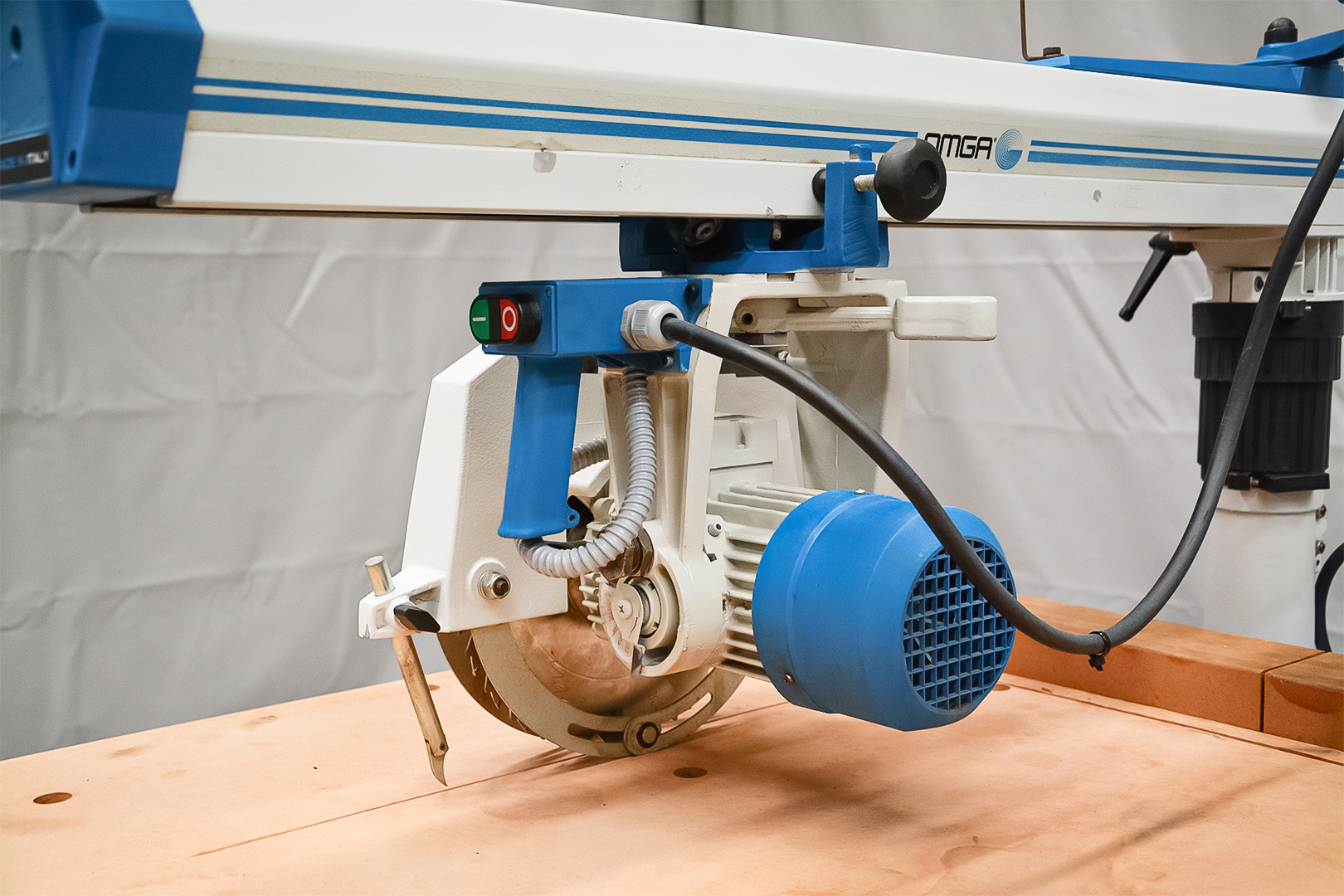

Motor & Spindle
Motor power (3-phase): (3 kW)
Single-phase (1.49 kW)
Saw bore: 30mm
Arbor speed: 3400 RPM
Angles & Stops
Mitre positive stops: 45° – 0° – 45°
Bevel positive stops: 0° – 45°
Dimensions
Table size: 889 mm x 889 mm
Overall dimensions: 889 mm x 1270 mm
Crated dimensions: 1321 mm x 965 mm x 1600 mm
Approx. shipping weight: 175 kg
Youtube video : Available on request
Excellent and Solid quality Band Saw available at GFP Machines.
3 Month quality warranty. T&C’s apply.
Fully serviced and checked by GFP Machines!
Technical services and training provided.
Delivery assistance throughout Africa.
Gys Potgieter’s promise: “If you are not happy with your machine, then bring it back within 7 days for a full refund”.
